HTZS2DF02N1AC3,HTZS2DF02N1C04,HTZS2DF02V1C16,HTZS2DF02V1J40,零壓差電磁閥

點擊圖片查看原圖

型號：	HTZS2DF02N1AC3,HTZS2DF02N1C04,HTZS2DF02V1C16,HTZS2DF02V1J40,零壓差電磁閥
PDF下載：	如需產品詳細說明請與銷售客服聯系
瀏覽次數：	711

公司基本資料信息

聯系人銷售員 1581(先生)
電話13861877712
地區江蘇-無錫市
地址無錫市會北路28-135

詳細說明

HTZS2DF02N1AC3,HTZS2DF02N1C04,HTZS2DF02V1C16,HTZS2DF02V1J40,零壓差電磁閥

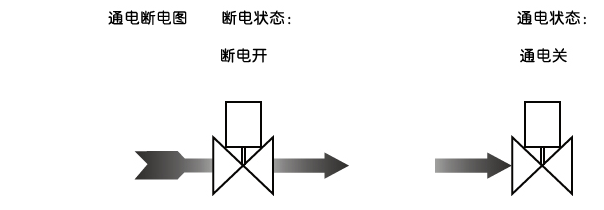

二位二通常開型電磁閥,斷電打開,通電關閉閥體材質為銅,和SS304不銹鋼(常規),SS316不銹鋼(定制)最大耐壓力10kgf/cm²環境溫度0℃～65℃產品系列化生產,體積小,流量大適用范圍廣按閥上所表流向箭頭,可任意安裝;為增強使用壽命,最好線圈向上,水平安裝

電壓：AC220V/230V/240V/110V/24V
50/60HZ DC24V/12V +10%到-10%允許波動

膜片、密封件，可采用NBR、VITON、EPDM等多種，以適用不同流體的開關控制。

型號規格：

接管口徑	流量通徑mm	CV值	線圈	功率		外形尺寸長X寬X高 A x B x H	重量KG	訂貨型號以下表中電壓為220CAC 50/60HZ
			F級	VA	W
			配置	AC220V	DC24V
1/8^''	2.5	0.23	D	22	13	41x29x83	0.37	HTZS2DF02N1AC3
	2.5	0.23	D	22	13	41x29x83	0.37	HTZS2DF02E1AC3
	2.5	0.23	D	22	13	41x29x83	0.37	HTZS2DF02V1AC3
	2.5	0.23	D	22	13	41x29x83	0.37	HTZS2DF02N1AC3
	2.5	0.23	D	22	13	41x29x83	0.37	HTZS2DF02E1AC3
	2.5	0.23	D	22	13	41x29x83	0.37	HTZS2DF02V1AC3
1/4^''	4.0	0.6	D	57.2	32	52.5X32.5X115	0.7	HTZS2DF02N1B04
	4.0	0.6	D	57.2	32	52.5X32.5X115	0.7	HTZS2DF02E1B04
	4.0	0.6	D	57.2	32	52.5X32.5X115	0.7	HTZS2DF02V1B04
3/8^''	4.0	0.6	D	57.2	32	52.5X32.5X115	0.7	HTZS2DF02N1C04
	16	4.8	D	57.2	32	69X57X135	1.2	HTZS2DF02N1C16
	16	4.8	D	57.2	32	69X57X135	1.2	HTZS2DF02E1C16
	16	4.8	D	57.2	32	69X57X135	1.2	HTZS2DF02V1C16
1/2^''	16	4.8	D	57.2	32	69X57X135	1.15	HTZS2DF02N1C16
	16	4.8	D	57.2	32	69X57X135	1.15	HTZS2DF02E1C16
	16	4.8	D	57.2	32	69X57X135	1.15	HTZS2DF02V1C16
3/4^''	20	7.6	D	57.2	32	73X57X142	1.25	HTZS2DF02N1E20
	20	7.6	D	57.2	32	73X57X142	1.25	HTZS2DF02E1E20
	20	7.6	D	57.2	32	73X57X142	1.25	HTZS2DF02V1E20
1^''	25	12	D	57.2	32	99x77.5x150	1.7	HTZS2DF02N1G25
	25	12	D	57.2	32	99x77.5x150	1.7	HTZS2DF02E1G25
	25	12	D	57.2	32	99x77.5x150	1.7	HTZS2DF02V1G25
11/4^''	32	24	D	70	40	112x86.5x180	2.75	HTZS2DF02N1H32
	32	24	D	70	40	112x86.5x180	2.75	HTZS2DF02E1H32
	32	24	D	70	40	112x86.5x180	2.75	HTZS2DF02V1H32
	32	24	D	70	40	123x94x190	3.7	HTZS2DF02N1H32
	32	24	D	70	40	123x94x190	3.7	HTZS2DF02E1H32
	32	24	D	70	40	123x94x190	3.7	HTZS2DF02V1H32
11/2^''	40	29	D	70	40	123x94x190	3.15	HTZS2DF02N1J40
	40	29	D	70	40	123x94x190	3.15	HTZS2DF02E1J40
	40	29	D	70	40	123x94x190	3.15	HTZS2DF02V1J40
	40	29	D	70	40	123x94x190	3.55	HTZS2DF02N1J40
	40	29	D	70	40	123x94x190	3.55	HTZS2DF02E1J40
	40	29	D	70	40	123x94x190	3.55	HTZS2DF02V1J40
2^''	50	48	D	70	40	168x123x216	5.4	HTZS2DF02N1K50
	50	48	D	70	40	168x123x216	5.4	HTZS2DF02E1K50
	50	48	D	70	40	168x123x216	5.4	HTZS2DF02V1K50
	50	48	D	70	40	168x123x216	5.6	HTZS2DF02N1K50
	50	48	D	70	40	168x123x216	5.6	HTZS2DF02E1K50
	50	48	D	70	40	168x123x216	5.6	HTZS2DF02V1K50

HTZS2DF02E1AC3,HTZS2DF02V1AC3,HTZS2DF02N1AC3,HTZS2DF02E1AC3,
HTZS2DF02V1AC3,HTZS2DF02N1B04,HTZS2DF02E1B04,HTZS2DF02V1B04,
HTZS2DF02N1C16,HTZS2DF02E1C16,HTZS2DF02V1C16,HTZS2DF02N1C16,
HTZS2DF02E1C16,HTZS2DF02N1E20,HTZS2DF02E1E20,HTZS2DF02V1E20,
HTZS2DF02N1G25,HTZS2DF02E1G25,cclair,HTZS2DF02V1G25,HTZS2DF02N1H32,
HTZS2DF02E1H32,HTZS2DF02V1H32,HTZS2DF02N1H32,HTZS2DF02E1H32,
HTZS2DF02V1H32,HTZS2DF02N1J40,HTZS2DF02E1J40,HTZS2DF02V1J40,
HTZS2DF02N1J40,HTZS2DF02E1J40,HTZS2DF02N1K50,HTZS2DF02E1K50,
HTZS2DF02V1K50,HTZS2DF02N1K50,HTZS2DF02E1K50,HTZS2DF02V1K50,
