詳細說明
HTA1SH02T1AC3,HTA1DF02E1AC6,HTA1DF02T1D15,HTA1WH02T1G25,二位二通電磁閥
HTA1DF02V1AC3,HTA1DF02E1AC3,HTA1DF02N1AC3,HTA1SH02T1AC6,
HTA1DF02V1AC6,HTA1DF02N1AC6,HTA1SH02T1BC3,HTA1DF02V1BC3,
HTA1DF02E1BC3,HTA1DF02N1BC3,HTA1SH02T1BC6,HTA1DF02V1BC6,
HTA1DF02E1BC6,HTA1DF02N1BC6,cclair,HTA1SH02T1BC6,HTA1DF02V1C15,
HTA1WH02T1C15,HTA1WH02T1D15,HTA1DF02T1E20,HTA1WH02T1E20,
HTA1DF02T1G25,HTA1DF02T1H35,HTA1WH02T1H35,HTA1DF02T1J35,
HTA1WH02T1J35,

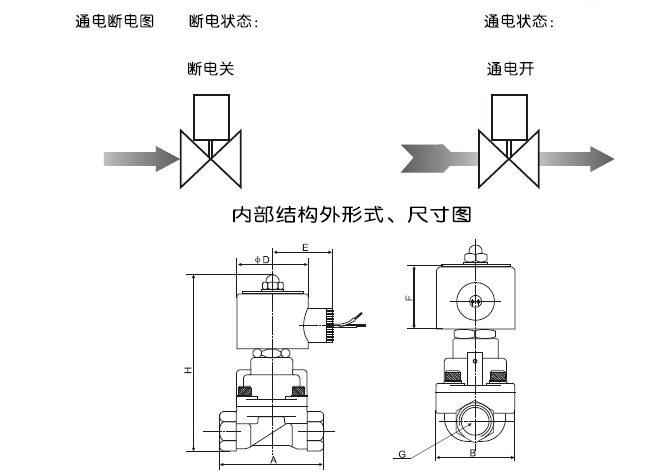

二位二通常閉型電磁閥,斷電關閉,通電打開閥體材質為銅
最大耐壓力為:40kgf/cm2
環境溫度:0℃～65℃(F級)、0℃～80℃(H級)
產品為系列化生產,體積小,流量大,適用范圍廣
按閥上所標流向箭頭,可任意安裝;為增強使用壽命,最好線圈向上,水平安裝
電壓:AC220V/230V/240V/110V/24V
50/60HZ DC24V/12V +10%到-10%允許波動
線圈可配德國原裝NASS線圈
常規備貨:AC220V/230V/240V 50/60HZ DC24V
密封件采用聚四氟乙烯材料(Teflon),以適用不同流體的開關控制
| 型號規格： |
|
接管
口徑 |
流量
通徑 mm |
CV值
|
線圈
配置 |
功率
|
線圈等級
|
外形尺寸 長X寬X高 A x B x H |
重量
KG |
訂貨型號以下
表中電壓為 220CAC 50/60HZ |
|
|
VA
|
W
|
||||||||
|
AC
220V |
DC
24V |
||||||||
| 1/8'' | 2.5 | 0.23 |
D
|
22 | 13 | H | 48x25x85.5 | 0.45 | HTA1SH02T1AC3 |
| 2.5 | 0.23 |
D
|
22 | 13 | F | 48x25x85.5 | 0.45 | HTA1DF02V1AC3 | |
| 2.5 | 0.23 |
D
|
22 | 13 | H | 48x25x85.5 | 0.45 | HTA1DF02E1AC3 | |
| 2.5 | 0.23 |
D
|
22 | 13 | F | 48x25x85.5 | 0.45 | HTA1DF02N1AC3 | |
| 4.5 | 0.6 |
D
|
22 | 13 | H | 48x25x85.5 | 0.55 | HTA1SH02T1AC6 | |
| 4.5 | 0.6 |
D
|
22 | 13 | F | 48x25x85.5 | 0.55 | HTA1DF02V1AC6 | |
| 4.5 | 0.6 |
D
|
22 | 13 | H | 48x25x85.5 | 0.55 | HTA1DF02E1AC6 | |
| 4.5 | 0.6 |
D
|
22 | 13 | F | 48x25x85.5 | 0.55 | HTA1DF02N1AC6 | |
| 1/4'' | 2.5 | 0.23 |
D
|
22 | 13 | H | 48x25x85.5 | 0.4 | HTA1SH02T1BC3 |
| 2.5 | 0.23 |
D
|
22 | 13 | F | 48x25x85.5 | 0.4 | HTA1DF02V1BC3 | |
| 2.5 | 0.23 |
D
|
22 | 13 | H | 48x25x85.5 | 0.4 | HTA1DF02E1BC3 | |
| 2.5 | 0.23 |
D
|
22 | 13 | F | 48x25x85.5 | 0.4 | HTA1DF02N1BC3 | |
| 4.5 | 0.6 |
D
|
22 | 13 | H | 48x25x85.5 | 0.5 | HTA1SH02T1BC6 | |
| 4.5 | 0.6 |
D
|
22 | 13 | F | 48x25x85.5 | 0.5 | HTA1DF02V1BC6 | |
| 4.5 | 0.6 |
D
|
22 | 13 | H | 48x25x85.5 | 0.5 | HTA1DF02E1BC6 | |
| 4.5 | 0.6 |
D
|
22 | 13 | F | 48x25x85.5 | 0.5 | HTA1DF02N1BC6 | |
| 4.5 | 0.6 |
D
|
22 | 13 | H | 48x25x85.5 | 0.5 | HTA1SH02T1BC6 | |
| 3/8'' | 15 | 4.5 |
D
|
33 | 32 | F | 75x52x129 | 1.25 | HTA1DF02V1C15 |
| 15 | 4.5 |
W
|
30 | 25 | H | 75x52x129 | 1.25 | HTA1WH02T1C15 | |
| 1/2'' | 15 | 4.5 |
D
|
33 | 32 | F | 75x52x129 | 1.2 | HTA1DF02T1D15 |
| 15 | 4.5 |
W
|
30 | 25 | H | 75x52x129 | 1.2 | HTA1WH02T1D15 | |
| 3/4'' | 20 | 9.0 |
D
|
33 | 32 | F | 85x60x148 | 1.5 | HTA1DF02T1E20 |
| 20 | 9.0 |
W
|
30 | 25 | H | 85x60x148 | 1.5 | HTA1WH02T1E20 | |
| 1'' | 25 | 13 |
D
|
33 | 32 | F | 100x70x148 | 1.9 | HTA1DF02T1G25 |
| 25 | 13 |
W
|
30 | 25 | H | 100x70x148 | 1.9 | HTA1WH02T1G25 | |
| 11/4'' | 35 | 26 |
D
|
33 | 32 | F | 120x90x168 | 3.6 | HTA1DF02T1H35 |
| 35 | 26 |
W
|
30 | 25 | H | 120x90x168 | 3.6 | HTA1WH02T1H35 | |
| 1/2'' | 35 | 26 |
D
|
33 | 32 | F | 120x90x168 | 3.5 | HTA1DF02T1J35 |
| 35 | 26 |
W
|
30 | 25 | H | 120x90x168 | 3.5 | HTA1WH02T1J35 | |
