詳細說明

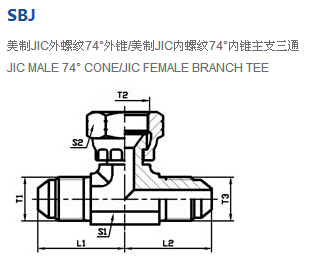

SBJ-04,SBJ-05,SBJ-06,SBJ-08,SBJ-10,SBJ-12,SBJ-14,SBJ-16,SBJ-20,SBJ-24,SBJ-32,錐面密封接頭
產品技術參數：
| 代號 PART NO. | 螺紋 THREAD | 尺寸 DIMENSIONS | 重量 | 工作壓力MPa | |||||
|---|---|---|---|---|---|---|---|---|---|
| T1 | T2 | T3 | L1 | L2 | S1 | S2 | |||
| SBJ-04 | 7/16＂X20 | 7/16＂X20 | 7/16＂X20 | 23 | 23 | 11 | 15 | 35 | 34.5 |
| SBJ-05 | 1/2＂X20 | 1/2＂X20 | 1/2＂X20 | 24.5 | 24.5 | 14 | 17 | 49 | |
| SBJ-06 | 9/16＂X18 | 9/16＂X18 | 9/16＂X18 | 26.9 | 26.9 | 14 | 19 | 61 | |
| SBJ-08 | 3/4＂X16 | 3/4＂X16 | 3/4＂X16 | 32 | 32 | 19 | 24 | 121 | 31 |
| SBJ-10 | 7/8＂X14 | 7/8＂X14 | 7/8＂X14 | 37 | 37 | 22 | 27 | 192 | 24 |
| SBJ-12 | 1.1/16＂X12 | 1.1/16＂X12 | 1.1/16＂X12 | 42.5 | 42.5 | 27 | 32 | 315 | |
| SBJ-14 | 1.3/16＂X12 | 1.3/16＂X12 | 1.3/16＂X12 | 45.7 | 45.7 | 30 | 36 | 385 | 21 |
| SBJ-16 | 1.5/16＂X12 | 1.5/16＂X12 | 1.5/16＂X12 | 46 | 46 | 33 | 41 | 477 | |
| SBJ-20 | 1.5/8＂X12 | 1.5/8＂X12 | 1.5/8＂X12 | 53 | 53 | 41 | 50 | 876 | 17 |
| SBJ-24 | 1.7/8＂X12 | 1.7/8＂X12 | 1.7/8＂X12 | 59.2 | 59.2 | 48 | 55 | 114 | 14 |
| SBJ-32 | 2.1/2＂X12 | 2.1/2＂X12 | 2.1/2＂X12 | 77.7 | 77.7 | 63 | 75 | 2455 | 10.5 |
