詳細說明
S1JG9-04OG,S1JG9-05-08OG,S1JG9-08OG,S1JG9-12OG,S1JG9-16OG,S1JG9-20OG,S1JG9-10-06OG,錐面密封接頭
S1JG9-04-02OG,S1JG9-05-02OG,S1JG9-05-06OG,S1JG9-06-04OG,S1JG9-06-08OG,S1JG9-08-04OG,
S1JG9-08-06OG,S1JG9-10-08OG,S1JG9-10-12OG,S1JG9-12-08OG,S1JG9-12-16OG,S1JG9-16-12OG,
S1JG9-20-16OG,S1JG9-24-16OG,S1JG9-24-20OG,
產品技術參數：

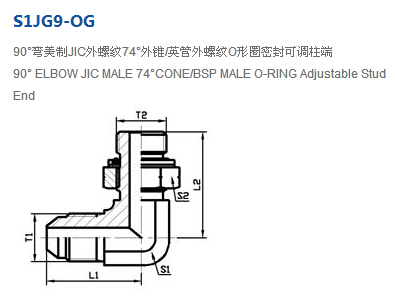

| 代號 PART NO. | 螺紋 THREAD | 尺寸 DIMENSIONS | 重量 | 工作壓力MPa | ||||
|---|---|---|---|---|---|---|---|---|
| T1 | T2 | L1 | L2 | S1 | S2 | |||
| S1JG9-04-02OG | 7/16＂X20 | G1/8＂X28 | 22.6 | 26.2 | 11 | 14 | 28 | 31.5 |
| S1JG9-04OG | 7/16＂X20 | G1/4＂X19 | 22.6 | 31.8 | 14 | 19 | 46 | |
| S1JG9-05-02OG | 1/2＂X20 | G1/8＂X28 | 24.1 | 27.7 | 14 | 14 | 33 | |
| S1JG9-05-06OG | 1/2＂X20 | G1/4＂X19 | 26.6 | 31.8 | 14 | 19 | 50 | |
| S1JG9-05-08OG | 1/2＂X20 | G3/8＂X19 | 28.5 | 36.8 | 19 | 22 | 75 | 25 |
| S1JG9-06-04OG | 9/16＂X18 | G1/4＂X19 | 26.9 | 31.8 | 14 | 19 | 50 | 31.5 |
| S1JG9-06-08OG | 9/16＂X18 | G3/8＂X19 | 29 | 36.8 | 19 | 22 | 80 | 25 |
| S1JG9-08-04OG | 3/4＂X16 | G1/4＂X19 | 31.8 | 36.8 | 19 | 27 | 88 | 31.5 |
| S1JG9-08OG | 3/4＂X16 | G3/8＂X19 | 31.8 | 36.8 | 19 | 22 | 100 | 25 |
| S1JG9-08-06OG | 3/4＂X16 | G1/2＂X14 | 33.8 | 43.2 | 22 | 27 | 155 | |
| S1JG9-10-06OG | 7/8＂X14 | G3/8＂X19 | 36.8 | 37.1 | 22 | 36 | 125 | |
| S1JG9-10-08OG | 7/8＂X14 | G1/2＂X14 | 36.8 | 43.2 | 22 | 27 | 158 | |
| S1JG9-10-12OG | 7/8＂X14 | G3/4＂X14 | 39.2 | 49.3 | 27 | 36 | 229 | 16 |
| S1JG9-12OG | 1.1/16＂X12 | G1/2＂X14 | 42.2 | 49.3 | 27 | 27 | 196 | 25 |
| S1JG9-12-08OG | 1.1/16＂X12 | G3/4＂X14 | 42.2 | 49.3 | 27 | 36 | 275 | 16 |
| S1JG9-12-16OG | 1.1/16＂X12 | G1＂X11 | 44.7 | 52.1 | 33 | 41 | 365 | 16 |
| S1JG9-16OG | 1.5/16＂X12 | G3/4＂X14 | 46 | 48.2 | 33 | 36 | 342 | |
| S1JG9-16-12OG | 1.5/16＂X12 | G1＂X11 | 46 | 52.1 | 33 | 41 | 428 | |
| S1JG9-20OG | 1.5/8＂X12 | G1＂X11 | 52.3 | 57.2 | 41 | 41 | 580 | |
| S1JG9-20-16OG | 1.5/8＂X12 | G1.1/4＂X11 | 52.3 | 57.2 | 41 | 50 | 712 | |
| S1JG9-24-16OG | 1.7/8＂X12 | G1.1/4＂X11 | 59.2 | 60.7 | 48 | 50 | 962 | 14 |
| S1JG9-24-20OG | 1.7/8＂X12 | G1.1/2＂X11 | 59.2 | 60.7 | 48 | 50 | 926 | 10 |
S1JG9-08-06OG,S1JG9-10-08OG,S1JG9-10-12OG,S1JG9-12-08OG,S1JG9-12-16OG,S1JG9-16-12OG,
S1JG9-20-16OG,S1JG9-24-16OG,S1JG9-24-20OG,
