詳細說明

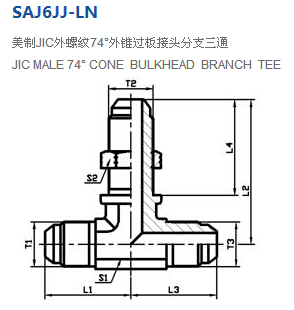

SAJ6JJ-04LN,SAJ6JJ-05LN,SAJ6JJ-06LN,SAJ6JJ-10LN,SAJ6JJ-14LN,SAJ6JJ-20LN,SAJ6JJ-24LN,錐面密封接頭
SAJ6JJ-08LN,SAJ6JJ-12LN,SAJ6JJ-16LN,
產品技術參數：
| 代號 PART NO. | 螺紋 THREAD | 尺寸 DIMENSIONS | 重量 | 工作壓力MPa | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| T1 | T2 | T3 | L1 | L2 | L3 | L4 | S1 | S2 | |||
| SAJ6JJ-04LN | 7/16＂X20 | 7/16＂X20 | 7/16＂X20 | 24.6 | 40.4 | 24.6 | 26 | 11 | 17 | 62 | 34.5 |
| SAJ6JJ-05LN | 1/2＂X20 | 1/2＂X20 | 1/2＂X20 | 26.9 | 43.7 | 26.9 | 26 | 14 | 19 | 82 | |
| SAJ6JJ-06LN | 9/16＂X18 | 9/16＂X18 | 9/16＂X18 | 27.7 | 46 | 27.7 | 27.7 | 14 | 22 | 101 | |
| SAJ6JJ-08LN | 3/4＂X16 | 3/4＂X16 | 3/4＂X16 | 34.5 | 53.6 | 34.5 | 31.7 | 19 | 24 | 205 | 31 |
| SAJ6JJ-10LN | 7/8＂X14 | 7/8＂X14 | 7/8＂X14 | 39.6 | 60.7 | 39.6 | 35.3 | 22 | 30 | 300 | 24 |
| SAJ6JJ-12LN | 1.1/16＂X12 | 1.1/16＂X12 | 1.1/16＂X12 | 45.2 | 67.8 | 45.2 | 39.5 | 27 | 36 | 487 | |
| SAJ6JJ-14LN | 1.3/16＂X12 | 1.3/16＂X12 | 1.3/16＂X12 | 48.8 | 71.1 | 48.8 | 39.5 | 30 | 38 | 625 | 21 |
| SAJ6JJ-16LN | 1.5/16＂X12 | 1.5/16＂X12 | 1.5/16＂X12 | 49.3 | 71.1 | 49.3 | 39.5 | 33 | 41 | 717 | |
| SAJ6JJ-20LN | 1.5/8＂X12 | 1.5/8＂X12 | 1.5/8＂X12 | 55.1 | 79.2 | 55.1 | 41 | 41 | 50 | 1200 | 17 |
| SAJ6JJ-24LN | 1.7/8＂X12 | 1.7/8＂X12 | 1.7/8＂X12 | 59.4 | 86.9 | 59.4 | 44.3 | 48 | 55 | 1489 | 14 |
