詳細說明

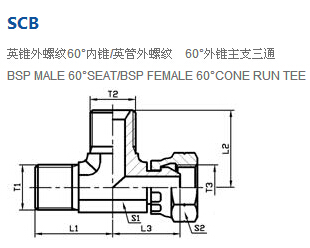

SCB-02,SCB-04,SCB-06,SCB-08,SCB-10,SCB-12,SCB-16,SCB-20,錐面密封接頭
產品技術參數：
| 代號 RAPT NO. | 螺紋 THREAD | 尺寸 DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|---|
| T1 | T2 | T3 | L1 | L2 | L3 | S1 | S2 | |
| SCB-02 | G1/8＂X28 | G1/8＂X28 | G1/8＂X28 | 19.8 | 19.8 | 17.9 | 11 | 14 |
| SCB-04 | G1/4＂X19 | G1/4＂X19 | G1/4＂X19 | 24.5 | 24.5 | 25.7 | 14 | 19 |
| SCB-06 | G3/8＂X19 | G3/8＂X19 | G3/8＂X19 | 27.5 | 27.5 | 29.6 | 16 | 22 |
| SCB-08 | G1/2＂X14 | G1/2＂X14 | G1/2＂X14 | 34.5 | 34.5 | 33.8 | 22 | 27 |
| SCB-10 | G5/8＂X14 | G5/8＂X14 | G5/8＂X14 | 35 | 35 | 32.1 | 22 | 30 |
| SCB-12 | G3/4＂X14 | G3/4＂X14 | G3/4＂X14 | 40 | 40 | 36.3 | 27 | 32 |
| SCB-16 | G1＂X11 | G1＂X11 | G1＂X11 | 46 | 46 | 42.7 | 33 | 41 |
| SCB-20 | G1.1/4＂X11 | G1.1/4＂X11 | G1.1/4＂X11 | 50.5 | 50.5 | 49.5 | 41 | 50 |
