詳細說明
KSG4-04F-BSP,KSG4-06F-BSP,KSG4-04M-NPT,KSG4-06M-BSP,螺紋型快速接頭
KSG4-04F-NPT,KSG4-06F-NPT,KSG4-08F-BSP,KSG4-08F-NPT,KSG4-12F-BSP,KSG4-12F-NPT,KSG4-16F-BSP,KSG4-16F-NPT,
KSG4-04M-BSP,KSG4-06M-NPT,KSG4-08M-BSP,KSG4-08M-NPT,KSG4-12M-BSP,KSG4-12M-NPT,KSG4-16M-BSP,KSG4-16M-NPT,
產品說明
KSG4 規格-螺紋-農業型
KSG4系列 B 型公接頭可與KSNV 系列公接頭互換
材質：碳鋼，表面鍍環保鋅
閥芯：針閥
密封件：以NBR為標準
擋圈：鐵氟龍
工作溫度：在標準NBR范圍內，承受-25℃ + 125℃的溫度。

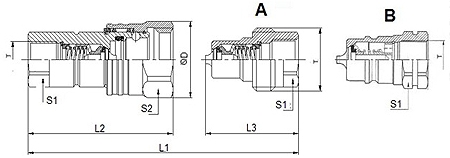

| 昌林液壓 | 國際標準 | L1 | L2 | L3 | ØD | S1 | S2 | T | 母接頭編號 | 公接頭編號 |
| 04 | 6.3 | 66.0 | 50.0 | 33.0 | 30.0 | 19.0 | 27.0 | 1/4" BSP | KSG4-04F-BSP | KSG4-04M-BSP |
| 1/4" NPT | KSG4-04F-NPT | KSG4-04M-NPT | ||||||||
| 06 | 10 | 78.0 | 59.5 | 39.0 | 38.0 | 24.0 | 34.0 | 3/8" BSP | KSG4-06F-BSP | KSG4-06M-BSP |
| 3/8" NPT | KSG4-06F-NPT | KSG4-06M-NPT | ||||||||
| 08 | 12.5 | 94.5 | 68.0 | 49.0 | 42.0 | 27.0 | 38.0 | 1/2" BSP | KSG4-08F-BSP | KSG4-08M-BSP |
| 1/2" NPT | KSG4-08F-NPT | KSG4-08M-NPT | ||||||||
| 12 | 20 | 123.5 | 84.0 | 61.5 | 55.0 | 34.0 | 50.0 | 3/4" BSP | KSG4-12F-BSP | KSG4-12M-BSP |
| 3/4" NPT | KSG4-12F-NPT | KSG4-12M-NPT | ||||||||
| 16 | 25 | 139.5 | 99.5 | 73.0 | 60.0 | 41.0 | 55.0 | 1" BSP | KSG4-16F-BSP | KSG4-16M-BSP |
| 1" NPT | KSG4-16F-NPT | KSG4-16M-NPT |
| KSG4 技術參數 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
KSG4-04M-BSP,KSG4-06M-NPT,KSG4-08M-BSP,KSG4-08M-NPT,KSG4-12M-BSP,KSG4-12M-NPT,KSG4-16M-BSP,KSG4-16M-NPT,
