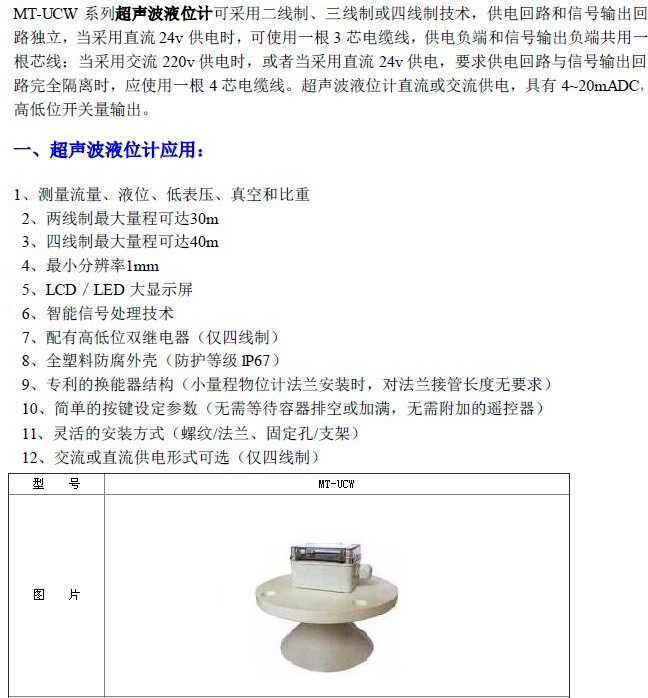

詳細說明
MT-UCW-A-4,MT-UCW-B-6,MT-UCW-C-8,MT-UCW-D-10,MT-UCW-E-12,超聲波液位計
MT-UCW-B-4,MT-UCW-C-4,MT-UCW-D-4,MT-UCW-E-4,
MT-UCW-A-6,MT-UCW-C-6,MT-UCW-D-6,MT-UCW-E-6,
MT-UCW-A-8,MT-UCW-B-8,CCLAIR,MT-UCW-D-8,MT-UCW-E-8,
MT-UCW-A-10,MT-UCW-B-10,MT-UCW-C-10,MT-UCW-E-10,
MT-UCW-A-12,MT-UCW-B-12,MT-UCW-C-12,MT-UCW-D-12,
MT-UCW-A-15,MT-UCW-B-15,MT-UCW-C-15,MT-UCW-D-15,MT-UCW-E-15,
MT-UCW-A-20,MT-UCW-B-20,MT-UCW-C-20,MT-UCW-D-20,MT-UCW-E-20,
MT-UCW-A-30,MT-UCW-B-30,MT-UCW-C-30,MT-UCW-D-30,MT-UCW-E-30,
MT-UCW-A-40,MT-UCW-B-40,MT-UCW-C-40,MT-UCW-D-40,MT-UCW-E-40,
|
量 程 |
液體：0~15m/20m/30m/40m 固體：0~6m/10m /15m /25m |
|
盲 區 |
0~15m：0.6m；0~20m：0.8m；0~30m：1.2m；0~40m：1.5m |
|
精度(空氣中) |
量程的0．2％ |
|
電流輸出 |
4~20mA |
|
輸出分辨率 |
實際量程的0．03％ |
|
輸出負載 |
0~500Ω |
|
開關量輸出 |
高位、低位繼電器常開 |
|
繼電器規格 |
AC250V 5A／DC30V |
|
顯示分辨率 |
lcm |
|
顯示方式 |
4位LCD液晶(字高15cm) 或6位LED數碼管 |
|
輸入電源 |
DC24V(±10％)80mA或AC220V 50mA |
|
溫度補償 |
全范圍自動 |
|
介質溫度 |
-45℃~+85℃ |
|
壓力范圍 |
±0．1MPa |
|
聲波束角 |
5°(3db) |
|
檢測周期 |
1秒 |
|
參數設置 |
3位有感按鍵 |
|
電纜裝置 |
PGl3.5密封套 |
|
外殼材質 |
ABS |
|
傳感器材質 |
PVC |
|
防護等級 |
IP67 |
|
安裝方式 |
螺紋(法蘭)或固定孔(支架) |
|
安裝要求 |
探頭發射面應伸出容器安裝口 |
三、超聲波液位計產品選型
|
MT—UCW |
超聲波液位計 |
|||
|
型 式 |
A |
一體式兩線制 |
||
|
B |
一體式三線制 |
|||
|
C |
一體式四線制 |
|||
|
D |
分體式四線制精簡型 |
|||
|
E |
分體式四線制標準型 |
|||
|
量 程 |
4 |
L=4m |
||
|
6 |
L=6m |
|||
|
8 |
L=8m |
|||
|
10 |
L=10m |
|||
|
12 |
L=12m |
|||
|
15 |
L=15m |
|||
|
20 |
L=20m |
|||
|
30 |
L=30m |
|||
|
40 |
L=40m |
|||
|
客戶指定 |
L=…..m |
|||
|
電源電壓 |
D |
DC24V LCD液晶顯示 |
||
|
E |
DC24V LED數碼管顯示 |
|||
|
A |
AC220V LCD液晶顯示 |
|||
|
探頭加長 |
**mm |
|||
