詳細說明

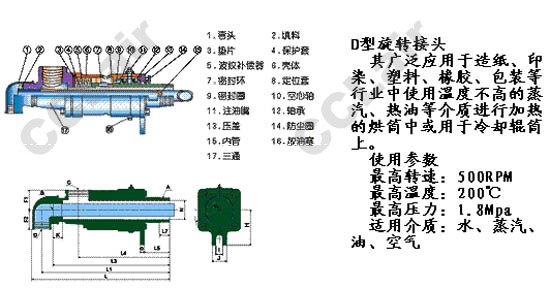

DS-G15-6,DS-G20-8,DS-G25-10,DS-G32-15,DS-G40-20,DS-G50-25,DS-G65-32,DS-G80-50,旋轉接頭
|
規格 |
型號 |
A |
B |
C |
D |
E |
F1 |
F2 |
G |
H |
I |
J |
K |
L |
L1 |
L3 |
L4 |
L5 |
L7 |
N |
|
15 |
DS-G15-6 |
R1/2 |
G1/8 |
Rc3/8 |
Rc1/2 |
79 |
29 |
25 |
8 |
55 |
14 |
34 |
15 |
217 |
204 |
191 |
156 |
42 |
20 |
14 |
|
20 |
DS-G20-8 |
R3/4 |
G1/4 |
Rc1/2 |
Rc1/2 |
89 |
34 |
30 |
10 |
65 |
18 |
38 |
15 |
244 |
229 |
215 |
175 |
45 |
22 |
18 |
|
25 |
DS-G25-10 |
R1 |
G3/8 |
Rc3/4 |
Rc1/2 |
110 |
42 |
33 |
10 |
70 |
14 |
40 |
28 |
303 |
288 |
273 |
223 |
63 |
25 |
25 |
|
32 |
DS-G32-15 |
R1-1/4 |
G1/2 |
Rc1 |
Rc1/2 |
119 |
44 |
38 |
11 |
82 |
18 |
48 |
47 |
311 |
294 |
279 |
224 |
57.5 |
28 |
32 |
|
40 |
DS-G40-20 |
R1-1/2 |
G3/4 |
Rc1-1/4 |
Rc3/4 |
125 |
6 |
43 |
10 |
92 |
20 |
50 |
48 |
353 |
335 |
316 |
253 |
60 |
30 |
38 |
|
50 |
DS-G50-25 |
R2 |
G1 |
Rc1-1/2 |
Rc1 |
167 |
54 |
51 |
10 |
95 |
18 |
42 |
49 |
358 |
338 |
317 |
254 |
56 |
32 |
48 |
|
65 |
DS-G65-32 |
R2-1/2 |
G1-1/4 |
Rc2 |
Rc1-1/4 |
186 |
70 |
62 |
14 |
120 |
20 |
50 |
69 |
422 |
394 |
369 |
295 |
72 |
42 |
64 |
|
80 |
DS-G80-50 |
R3 |
G1-1/2 |
Rc2-1/2 |
Rc2 |
207 |
75 |
72 |
16 |
130 |
24 |
54 |
71 |
501 |
465 |
443 |
338 |
94 |
45 |
75 |
