詳細說明

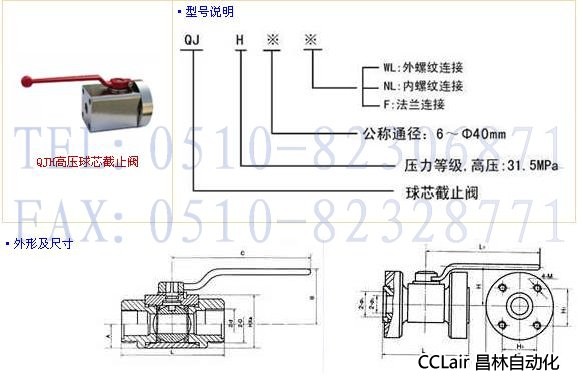

QJH-6WL，QJH-10WL，QJH-15WL， QJH-20WL，QJH-25WL，QJH-32WL，QJH-40WL，高壓球芯截止閥
QJH-6NL，QJH-10NL，QJH-15NL，QJH-20NL，QJH-25NL，QJH-32NL，QJH-40NL，
QJH-10F，QJH-15F，QJH-20F，QJH-25F，QJH-32F，QJH-40F，
規格及基本參數
QJH-6NL，QJH-10NL，QJH-15NL，QJH-20NL，QJH-25NL，QJH-32NL，QJH-40NL，
QJH-10F，QJH-15F，QJH-20F，QJH-25F，QJH-32F，QJH-40F，
規格及基本參數
| 外螺紋連接尺寸 |
| 型號 Model |
2-D
|
A
|
B
|
C
|
L
|
Hxa
|
重量
(Kg) |
| QJH-6WL |
M16×1.5
|
12
|
27
|
100
|
71
|
27×24
|
0.5
|
| QJH-10WL |
M22×1.5
|
17
|
40
|
160
|
86
|
40×35
|
0.7
|
| QJH-15WL |
M30×1.5
|
22
|
45
|
160
|
96
|
46×44
|
0.9
|
| QJH-20WL |
M36×2
|
23
|
46
|
160
|
112
|
52×50
|
1.3
|
| QJH-25WL |
M42×2
|
26
|
59
|
200
|
122
|
62×60
|
1.9
|
| QJH-32WL |
M52×2
|
33
|
74
|
230
|
145
|
72×68
|
3.5
|
| QJH-40WL |
M60×2
|
43
|
88
|
260
|
163
|
92×85
|
5.8
|
| 內螺紋連接尺寸 |
| 型號 Model |
2-D
|
A
|
B
|
C
|
L
|
Hxa
|
重量
(Kg) |
| QJH-6NL |
M16×1.5
|
12
|
27
|
100
|
67
|
27×24
|
0.6
|
| QJH-10NL |
M18×1.5
|
17
|
40
|
160
|
76
|
40×35
|
0.7
|
| QJH-15NL |
M27×2
|
22
|
45
|
160
|
88
|
46×44
|
1.0
|
| QJH-20NL |
M33×2
|
23
|
46
|
160
|
100
|
52×50
|
1.4
|
| QJH-25NL |
M42×2
|
26
|
59
|
200
|
116
|
62×60
|
2.1
|
| QJH-32NL |
M48×2
|
33
|
74
|
230
|
126
|
72×68
|
3.7
|
| QJH-40NL |
M60×2
|
43
|
88
|
260
|
130
|
92×85
|
6.0
|
| 法蘭連接尺寸 |
| 型號 Model |
L
|
L1
|
H
|
H1
|
ф
|
ф1
|
ф2
|
M
|
重量
(Kg) |
| QJH-10F |
103
|
133
|
44
|
36
|
ф68
|
ф22
|
ф10
|
M10
|
1.0
|
| QJH-15F |
113.5
|
133
|
46
|
40
|
ф75
|
ф25
|
ф15
|
M10
|
1.5
|
| QJH-20F |
117.4
|
135
|
48
|
42
|
ф78
|
ф30
|
ф20
|
M10
|
2.5
|
| QJH-25F |
133.5
|
165
|
56
|
56
|
ф100
|
ф38
|
ф25
|
M12
|
4.3
|
| QJH-32F |
145.4
|
195
|
63
|
62
|
ф110
|
ф45
|
ф32
|
M12
|
7.9
|
| QJH-40F |
175
|
231
|
74
|
73
|
ф130
|
ф55
|
ф40
|
M16
|
10
|
