一、產品[Z41X 消防專用信號閘閥]的詳細資料：
產品名稱：Z41X 消防專用信號閘閥產品特點：信號閘閥，信號蝶閥常應用于自動噴水消防管路系統，來臨界控供水管路，可以遠地指示閥門開度。升桿式閘閥及附開度指示閘閥也經常應用于消防系統，如果閘閥安裝位置離地面較高時，一般使用升桿閘閥，可以明顯指示閘閥開度，若安裝位置較低。則需用付開度指示閘閥。 消防專用信號彈性座封閘閥,消防閘閥,信號彈性座封閘閥。

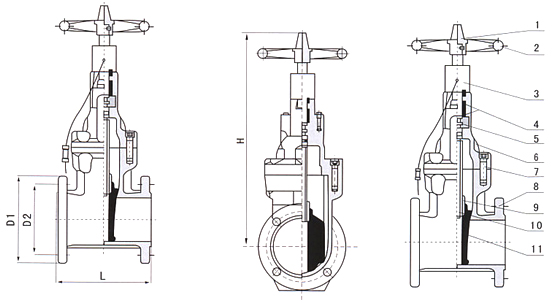

二、Z41X 消防專用信號閘閥主要零部件材料：
NO. | 零件名稱 | 材質 |
1 | 傳動帽 | 球墨鑄鐵、鑄鋼 |
2 | 手輪 | 可鍛鑄鐵 |
3 | 防塵罩 | 塑料 |
4 | 密封圈 | 丁腈橡膠、三元乙丙 |
5 | 止推軸承 | 錫青銅 |
6 | 閥蓋 | 灰鑄鐵、球墨鑄鐵、鑄鋼 |
7 | 螺栓 | 碳鋼、不銹鋼 |
8 | 閥體 | 碳鋼、球墨鑄鐵、鑄鋼 |
9 | 銅螺母 | 錫青銅 |
10 | 閥桿 | 不銹鋼 |
11 | 閥瓣 | 球墨鑄鐵+三元乙丙或丁腈橡膠 |
三、Z41X 消防專用信號閘閥主要技術參數：
公稱壓力：1.0～2.5MPa
公稱通徑：50～400mm
工作溫度：0～120℃
適用介質：水、油、氣等
法蘭標準：GB/T17241.6GB9113
試驗標準：GB13927API598
四、Z41X 消防專用信號閘閥消防專用信號閘閥主要連接外型尺寸：
DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
L | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 |
H（全開） | 732 | 773 | 820 | 870 | 915 | 1003 | 1110 | 1263 | 1360 | 1550 | 1610 | 1900 | 1938 | 2130 |
