Y型三通球閥的閥座密封根據工況不同，可分別采用軟密封、噴焊鎳基合金（硬度大于HRC60）、超音速涂鎢鈷合金（硬度大于HRC70）及特種硬化材料等多種先進工藝，適用各種苛刻工況，軟密封適用200℃以下工況，硬密封碳鋼不超過425℃，不銹鋼不超過℃

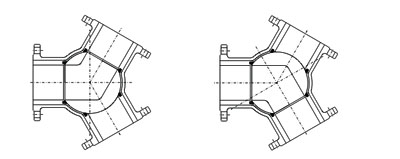

Y型三通球閥有相互成120°和兩通孔成135°，根據需要可實現(xiàn)對介質流向切換兩種工況。
型號、材料及主要參數(shù)
產品型號 | Q42F-10-40C | Q42F-10-40P | Q42F-10-40R |
Q42Y-150-300LBC | Q42Y-150-300LBP | Q42Y-150-300LBR | |
閥體 | WCB | CF8 | CF8M |
球體 | WVB+ENP | CF8 | CF8M |
閥桿/固定圈 | 2Cr13 | 304 | 316 |
閥座 | PTFE | PTFE | PTFE |
填料 | PTFE+O形圈 | PTFE+O形圈 | |
適用介質 | 水、油、蒸汽等 | 酸等腐蝕性介質 | |
適用溫度 | -29-150℃ | -29-150℃ | |
蝸輪Y型三通球閥 | Q后插入“3”表示，示例：Q342F-16C | ||
氣動Y型三通球閥 | Q后插入“6”表示，示例：Q642F-10C | ||
電動Y型三通球閥 | Q后插入“9”表示，示例：Q942F-16P | ||

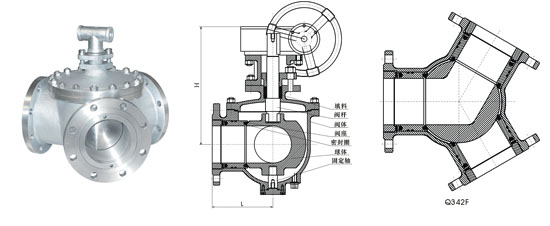

Y形三通球閥的外形尺寸PN10-40
公稱通徑DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
L | 75 | 75 | 90 | 100 | 110 | 120 | 130 | 140 | 160 | 190 | 220 | 275 |
H | 90 | 90 | 102 | 115 | 135 | 140 | 155 | 185 | 210 | 275 | 305 | 335 |
