WS1522信號隔離器,直流電流信號變送器,分配隔離模塊,為您實現電源、輸入、輸出三隔離,為您解決接地環路、測量回路、信號干擾等影響設備運行的問題。
信號隔離器輸入范圍:4-20mA、0-10V、0-20mA、0-5V、0-75mV等用戶特定規格
信號隔離器輸出范圍:4-20mA、0-10V、0-20mA等用戶需要的標準信號
信號隔離器輔助電源:DC24V,精度:0.2級

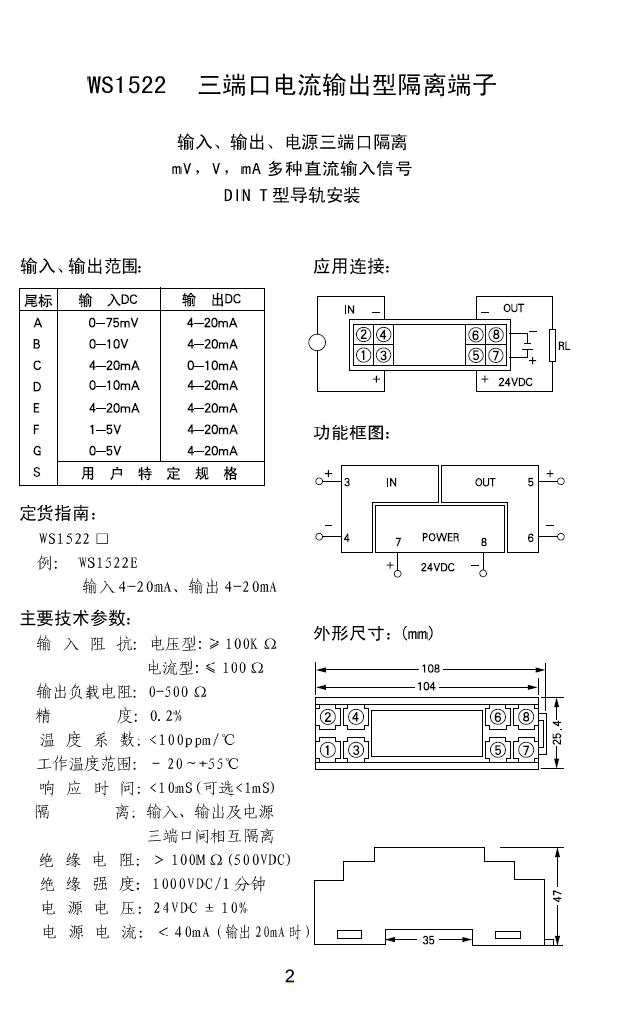

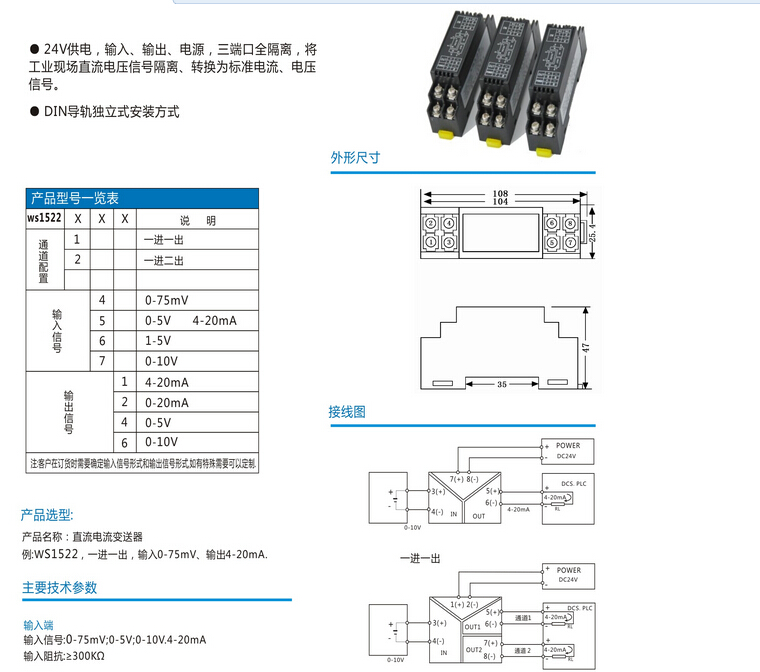

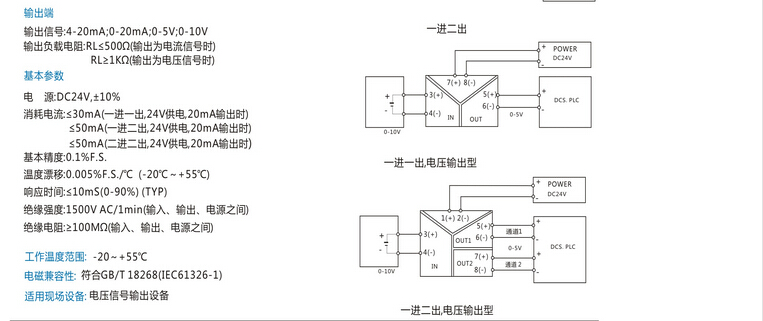

WS1522信號隔離器,直流電流變送器詳細技術參數及接線方式
:
WS1522-141,WS15624-142,WS1522-144,WS1522-146,
WS1522-151,WS15624-152,WS1522-154,WS1522-156,
WS1522-161,WS15624-162,WS1522-164,WS1522-166,
WS1522-171,WS15624-172,WS1522-174,WS1522-176,
WS1522-241,WS15624-242,WS1522-244,WS1522-246,
WS1522-251,WS15624-252,WS1522-254,WS1522-256,
WS1522-261,WS15624-262,WS1522-264,WS1522-266,
WS1522-271,WS15624-272,WS1522-274,WS1522-276,
