DSLZQ-T系列十字滑塊式彈性聯軸器特點如下：
1．膠體材料采用進口PA66，具有良好的耐磨、耐腐蝕性和電氣絕緣性
2．滑動式設計更有效的補償徑向和角向偏差
3．可拆設計、便于安裝
4．金屬部分采用高級高強度鋁合金復合材料
5．適用于中低速運動環境，還適用于高速下運動
聯軸器應用行業領域如下：
1、雕銑機 2、 雕刻機 3、激光機 4、 造紙機械
5、印刷機械 6、包裝機械 7、旋轉編碼器 8、噴涂設備
9、打標機 10、木工機械 11、鋁型材設備 12、紡織機械
13、SMT機械 14、染整機械 15、塑料機械 16、電子自動化設備
17. 電梯 18、機電設備 19、砂光機械 20、風力發電設備
21、游樂設施 22、制管機械 23、彎管機械 24、打圈機
25、涂布機械 26、門窗機械 27、電線電纜機械
28、服裝機械 29、水力發電設備等

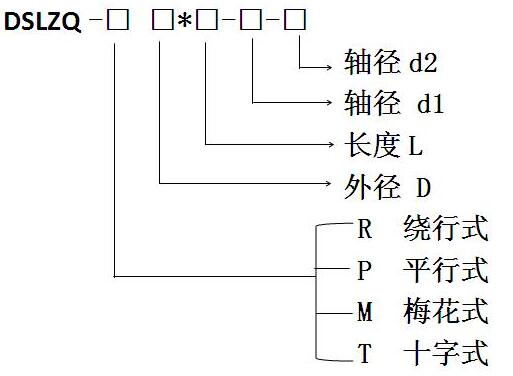

| 型號規格 | 外徑(D) | 長度(L) | 軸徑d1尺寸 | 軸徑d2尺寸 | 長度(L1) | 長度(L2) | 長度(L3) | 固定螺絲 | 額定 扭矩 | 容許軸向偏差 | 最高 轉速 |
| DSLZQ-T20*30-4-4 | Φ20 | L30 | Φ4 | Φ4 | L10.5 | L9 | L5.3 | M4 | 1.3 | ±0.2 | 7000 |
| DSLZQ-T20*30-4-6 | Φ20 | L30 | Φ4 | Φ6 | L10.5 | L9 | L5.3 | M4 | 1.3 | ±0.2 | 7000 |
| DSLZQ-T20*30-4-8 | Φ20 | L30 | Φ4 | Φ8 | L10.5 | L9 | L5.3 | M4 | 1.3 | ±0.2 | 7000 |
| DSLZQ-T20*30-4-10 | Φ20 | L30 | Φ4 | Φ10 | L10.5 | L9 | L5.3 | M4 | 1.3 | ±0.2 | 7000 |
| DSLZQ-T20*30-5-5 | Φ20 | L30 | Φ5 | Φ5 | L10.5 | L9 | L5.3 | M4 | 1.3 | ±0.2 | 7000 |
| DSLZQ-T20*30-5-8 | Φ20 | L30 | Φ5 | Φ8 | L10.5 | L9 | L5.3 | M4 | 1.3 | ±0.2 | 7000 |
| DSLZQ-T20*30-5-10 | Φ20 | L30 | Φ5 | Φ10 | L10.5 | L9 | L5.3 | M4 | 1.3 | ±0.2 | 7000 |
| DSLZQ-T20*30-6-6 | Φ20 | L30 | Φ6 | Φ6 | L10.5 | L9 | L5.3 | M4 | 1.3 | ±0.2 | 7000 |
| DSLZQ-T20*30-6-8 | Φ20 | L30 | Φ6 | Φ8 | L10.5 | L9 | L5.3 | M4 | 1.3 | ±0.2 | 7000 |
| DSLZQ-T20*30-6-10 | Φ20 | L30 | Φ6 | Φ10 | L10.5 | L9 | L5.3 | M4 | 1.3 | ±0.2 | 7000 |
| DSLZQ-T20*30-8-8 | Φ20 | L30 | Φ8 | Φ8 | L10.5 | L9 | L5.3 | M4 | 1.3 | ±0.2 | 7000 |
| DSLZQ-T20*30-8-10 | Φ20 | L30 | Φ8 | Φ10 | L10.5 | L9 | L5.3 | M4 | 1.3 | ±0.2 | 7000 |
| DSLZQ-T20*30-10-10 | Φ20 | L30 | Φ10 | Φ10 | L10.5 | L9 | L5.3 | M4 | 1.3 | ±0.2 | 7000 |
| DSLZQ-T30*35-5-5 | Φ30 | L35 | Φ5 | Φ5 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-5-8 | Φ30 | L35 | Φ5 | Φ8 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-5-10 | Φ30 | L35 | Φ5 | Φ10 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-5-12 | Φ30 | L35 | Φ5 | Φ12 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-5-15 | Φ30 | L35 | Φ5 | Φ15 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-6-6 | Φ30 | L35 | Φ6 | Φ6 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-6-8 | Φ30 | L35 | Φ6 | Φ8 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-6-10 | Φ30 | L35 | Φ6 | Φ10 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-6-12 | Φ30 | L35 | Φ6 | Φ12 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-6-15 | Φ30 | L35 | Φ6 | Φ15 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-8-8 | Φ30 | L35 | Φ8 | Φ8 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-8-10 | Φ30 | L35 | Φ8 | Φ10 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-8-12 | Φ30 | L35 | Φ8 | Φ12 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-8-15 | Φ30 | L35 | Φ8 | Φ15 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-8-15 | Φ30 | L35 | Φ8 | Φ15 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-10-10 | Φ30 | L35 | Φ10 | Φ10 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-10-12 | Φ30 | L35 | Φ10 | Φ12 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-10-15 | Φ30 | L35 | Φ10 | Φ15 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-12-12 | Φ30 | L35 | Φ12 | Φ12 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-12-15 | Φ30 | L35 | Φ12 | Φ15 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T30*35-15-15 | Φ30 | L35 | Φ15 | Φ15 | L11.75 | L11.5 | L5.8 | M4 | 1.7 | ±0.2 | 5000 |
| DSLZQ-T40*55-10-10 | Φ40 | L55 | Φ10 | Φ10 | L20 | L15 | L10.1 | M5 | 7 | ±0.2 | 3600 |
| DSLZQ-T40*55-10-12 | Φ40 | L55 | Φ10 | Φ12 | L20 | L15 | L10.1 | M5 | 7 | ±0.2 | 3600 |
| DSLZQ-T40*55-10-15 | Φ40 | L55 | Φ10 | Φ15 | L20 | L15 | L10.1 | M5 | 7 | ±0.2 | 3600 |
| DSLZQ-T40*55-10-18 | Φ40 | L55 | Φ10 | Φ18 | L20 | L15 | L10.1 | M5 | 7 | ±0.2 | 3600 |
| DSLZQ-T40*55-10-20 | Φ40 | L55 | Φ10 | Φ20 | L20 | L15 | L10.1 | M5 | 7 | ±0.2 | 3600 |
| DSLZQ-T40*55-12-12 | Φ40 | L55 | Φ12 | Φ12 | L20 | L15 | L10.1 | M5 | 7 | ±0.2 | 3600 |
| DSLZQ-T40*55-12-15 | Φ40 | L55 | Φ12 | Φ15 | L20 | L15 | L10.1 | M5 | 7 | ±0.2 | 3600 |
| DSLZQ-T40*55-12-18 | Φ40 | L55 | Φ12 | Φ18 | L20 | L15 | L10.1 | M5 | 7 | ±0.2 | 3600 |
| DSLZQ-T40*55-12-20 | Φ40 | L55 | Φ12 | Φ20 | L20 | L15 | L10.1 | M5 | 7 | ±0.2 | 3600 |
| DSLZQ-T40*55-15-15 | Φ40 | L55 | Φ15 | Φ15 | L20 | L15 | L10.1 | M5 | 7 | ±0.2 | 3600 |
| DSLZQ-T40*55-15-18 | Φ40 | L55 | Φ15 | Φ18 | L20 | L15 | L10.1 | M5 | 7 | ±0.2 | 3600 |
| DSLZQ-T40*55-15-20 | Φ40 | L55 | Φ15 | Φ20 | L20 | L15 | L10.1 | M5 | 7 | ±0.2 | 3600 |
| DSLZQ-T40*55-18-18 | Φ40 | L55 | Φ18 | Φ18 | L20 | L15 | L10.1 | M5 | 7 | ±0.2 | 3600 |
| DSLZQ-T40*55-18-20 | Φ40 | L55 | Φ18 | Φ20 | L20 | L15 | L10.1 | M5 | 7 | ±0.2 | 3600 |
| DSLZQ-T40*55-20-20 | Φ40 | L55 | Φ20 | Φ20 | L20 | L15 | L10.1 | M5 | 7 | ±0.2 | 3600 |
