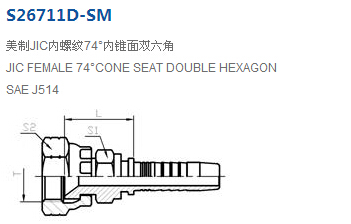

S26711D-04,S26711D-05,S26711D-06,S26711D-08,S26711D-10,S26711D-12,S26711D-16,S26711D-20,扣壓式軟管接頭
產品技術參數：
| 代 號 | 螺紋 T | 軟 管 HOSE BORE | 尺寸 DIMENSIONS | |||
|---|---|---|---|---|---|---|
| PART NO. | THREAD T | 公稱內徑 DN | 標號 DASH | L | S1 | S2 |
| S26711D-04-04SM | 7/16＂X20 | 6 | 04 | 20 | 12 | 14 |
| S26711D-05-04SM | 1/2＂X20 | 6 | 04 | 20.5 | 12 | 17 |
| S26711D-06-04SM | 9/16＂X18 | 6 | 04 | 21 | 14 | 19 |
| S26711D-06-06SM | 9/16＂X18 | 10 | 06 | 21 | 17 | 19 |
| S26711D-08-06SM | 3/4＂X16 | 10 | 06 | 25 | 19 | 24 |
| S26711D-08-08SM | 3/4＂X16 | 13 | 08 | 24.5 | 22 | 24 |
| S26711D-08-10SM | 3/4＂X16 | 16 | 10 | 25.5 | 22 | 24 |
| S26711D-10-08SM | 7/8＂X14 | 13 | 08 | 24 | 22 | 27 |
| S26711D-10-10SM | 7/8＂X14 | 16 | 10 | 27 | 22 | 27 |
| S26711D-12-12SM | 1.1/16＂X12 | 19 | 12 | 31.5 | 27 | 32 |
| S26711D-16-12SM | 1.5/16＂X12 | 19 | 12 | 31.5 | 32 | 41 |
| S26711D-16-16SM | 1.5/16＂X12 | 25 | 16 | 32.5 | 32 | 41 |
| S26711D-20-20SM | 1.5/8＂X12 | 32 | 20 | 37 | 41 | 50 |
S26711D-08-08SM,S26711D-08-10SM,S26711D-10-08SM,S26711D-10-10SM,S26711D-12-12SM,
S26711D-16-12SM,S26711D-16-16SM,S26711D-20-20SM,
