·螺牙規格: 公制牙(Metric)、PG牙、G牙、NPT牙。

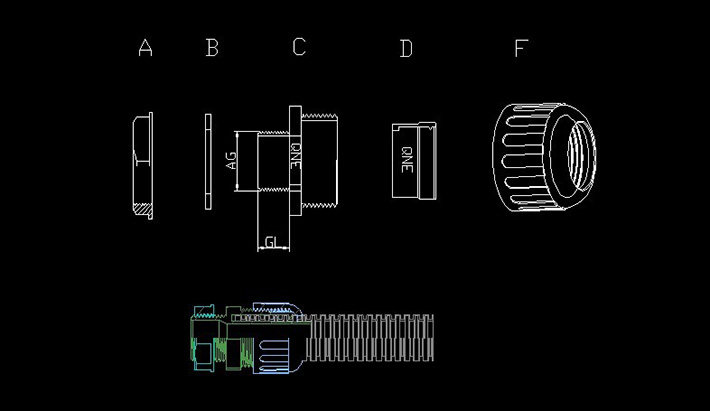

·產品材質: A.C.F部分采用UL認可之無鹵素（Halogen-Free）尼龍PA66(防火等級UL94V-2)制成;(可定制UL認可的V-0防火等級尼龍?jiān)?;
B.D部分采用三元乙丙(EPDM)耐候橡膠制成。(可定制耐寒、耐高溫橡膠;耐高酸堿、耐化學與抗腐蝕橡膠)。
·保護等級: IP68
·工作溫度: 靜態-40℃至100℃,或瞬間可耐熱至120℃;動態-20℃至80℃，或瞬間可耐熱至100℃.
·產品特性: 本款高性能防水尼龍浪管盒接頭能完美地抗水壓，是一款即使拉扯波紋管也能完全保持氣密的產品。產品廣泛地應用于移動式的自動化設備之防水、防油與氣密的場合。
·顏色種類: 黑色、灰色，其它顏色可定做。
防水型浪管接頭（防水IP68，抗強拉力，材質環保）
| 適配軟管 | 編號 | 螺牙規 | 螺紋外徑 | 螺紋長度 |
| AD10.0 | WTF-M12-10.0 | M12 x 1.5 | 12 | 9 |
| WTF-M16-10.0-ST | M16 x 1.5 | 16 | 10 | |
| AD13.0 | WTF-M16-13.0-ST | M16 x 1.5 | 16 | 10 |
| WTF-M16-13.0 | M16 x 1.5 | 16 | 15 | |
| AD15.8 | WTF-M16-15.8-ST | M16 x 1.5 | 16 | 10 |
| WTF-M16-15.8 | M16 x 1.5 | 16 | 15 | |
| WTF-M20-15.8-ST | M20 x 1.5 | 20 | 10 | |
| WTF-M20-15.8 | M20 x 1.5 | 20 | 15 | |
| WTF-M22-15.8-ST | M22 x 1.5 | 22 | 10 | |
| WTF-M22-15.8 | M22 x 1.5 | 22 | 15 | |
| WTF-M25-15.8-ST | M25 x 1.5 | 25 | 12 | |
| AD18.5 | WTF-M16-18.5-ST | M16 x 1.5 | 16 | 10 |
| WTF-M16-18.5 | M16 x 1.5 | 16 | 15 | |
| WTF-M20-18.5-ST | M20 x 1.5 | 20 | 10 | |
| WTF-M20-18.5 | M20 x 1.5 | 20 | 15 | |
| WTF-M22-18.5-ST | M22 x 1.5 | 22 | 10 | |
| WTF-M22-18.5 | M22 x 1.5 | 22 | 15 | |
| WTF-M25-18.5-ST | M25 x 1.5 | 25 | 12 | |
| AD21.2 | WTF-M20-21.2-ST | M20 x 1.5 | 20 | 10 |
| WTF-M20-21.2 | M20 x 1.5 | 20 | 15 | |
| WTF-M25-21.2-ST | M25 x 1.5 | 25 | 10 | |
| WTF-M25-21.2 | M25 x 1.5 | 25 | 15 | |
| AD25.0 | WTF-M25-25.0-ST | M25 x 1.5 | 25 | 10 |
| WTF-M25-25.0 | M25 x 1.5 | 25 | 15 | |
| AD26.2 | WTF-M25-26.2-ST | M25 x 1.5 | 25 | 10 |
| WTF-M25-26.2 | M25 x 1.5 | 25 | 15 | |
| AD28.5 | WTF-M25-28.5-ST | M25 x 1.5 | 25 | 10 |
| WTF-M25-28.5 | M25 x 1.5 | 25 | 15 | |
| AD34.5 | WTF-M32-34.5-ST | M32 x 1.5 | 32 | 10 |
| WTF-M32-34.5 | M32 x 1.5 | 32 | 15 | |
| AD42.5 | WTF-M40-42.5 | M40 x 1.5 | 40 | 15 |
| WTF-M50-42.5 | M50 x 1.5 | 50 | 15 | |
| AD48 | WTF-M50-48 | M50 x 1.5 | 50 | 15 |
| AD54.5 | WTF-M50-54.5 | M50 x 1.5 | 50 | 22 |
| WTF-M63-54.5 | M63 x 1.5 | 63 | 25 | |
| AD10.0 | WTF-PG7-10.0 | PG7 | 12.5 | 9 |
| WTF-PG9-10.0 | PG9 | 15.2 | 9 | |
| AD13.0 | WTF-PG11-13.0 | PG11 | 18.6 | 10 |
| AD15.8 | WTF-PG13.5-15.8 | PG13.5 | 20.4 | 10 |
| WTF-PG16-15.8 | PG16 | 22.5 | 10.8 | |
| AD18.5 | WTF-PG13.5-18.5 | PG13.5 | 20.4 | 10 |
| WTF-PG16-18.5 | PG16 | 22.5 | 10.8 | |
| AD21.2 | WTF-PG16-21.2 | PG16 | 22.5 | 13 |
| WTF-PG21-21.2 | PG21 | 28.3 | 13 | |
| AD28.5 | WTF-PG21-28.5 | PG21 | 28.3 | 13 |
| AD34.5 | WTF-PG29-34.5 | PG29 | 37 | 13 |
| AD42.5 | WTF-PG36-42.5 | PG36 | 47 | 13 |
| AD54.5 | WTF-PG48-54.5 | PG48 | 59.3 | 16 |
| AD10.0 | WTF-PF1/4-10.0 | G(PF)1/4 | 13.1 | 9 |
| AD13.0 | WTF-PF3/8-13.0 | G(PF)3/8 | 16.6 | 15 |
| AD15.8 | WTF-PF1/2-15.8 | G(PF)1/2 | 20.9 | 15 |
| AD18.5 | WTF-PF1/2-18.5 | G(PF)1/2 | 20.9 | 15 |
| AD21.2 | WTF-PF1/2-21.2 | G(PF)1/2 | 20.9 | 15 |
| WTF-PF3/4-21.2 | G(PF)3/4 | 26.4 | 15 | |
| AD28.5 | WTF-PF3/4-28.5 | G(PF)3/4 | 26.4 | 15 |
| AD34.5 | WTF-PF1-34.5 | G(PF)1 | 33.2 | 15 |
| AD42.5 | WTF-PF1 1/4-42.5 | G(PF)1 1/4 | 41.9 | 15 |
| AD54.5 | WTF-PF1 1/2-54.5 | G(PF)1 1/2 | 48 | 15 |
| WTF-PF1 1/2-54.5 | G(PF)2 | 60 | 15 |
