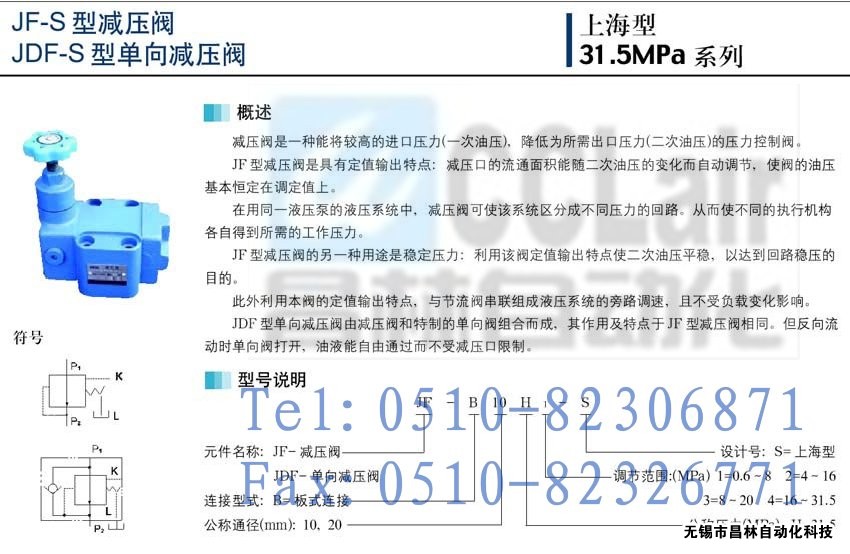

技術規格

名　稱	型　　號				通　徑		流量 /(L/min)	壓力范圍 /MPa
	螺紋連接	質量/kg	板式連接	質量/kg	/mm	/in
減壓閥 及 單向減壓閥	JF-L10※	3.5	JF-B10※	4.2	10	3/8	20(40)
	JDF-L10※	4.2	JDF-B10※	4.8
	JF-L20※	5.6	JF-B20※	7	20	3/4	50(100)
	JDF-L20※	5.6	JDF-B20※	7
	JF-L32※	11.6	JF-B32※	11.5	32	1 1/4	150
	JDF-L32※	13.1	JDF-B32※	13.3
生產廠	-

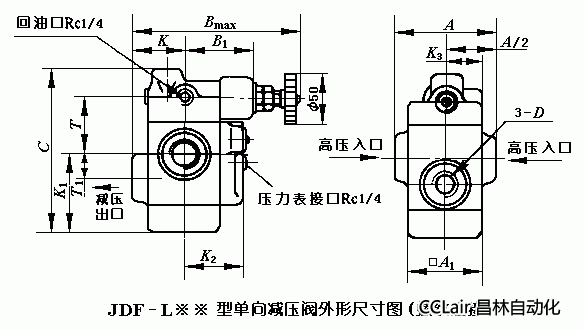

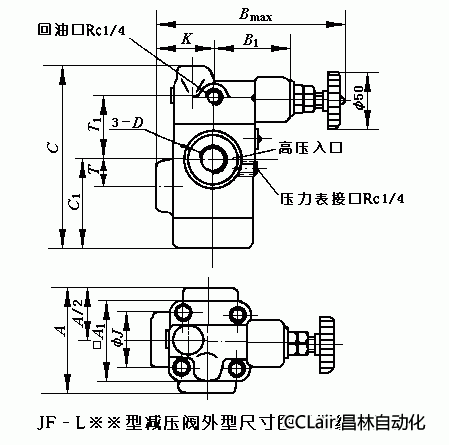

外形尺寸

　

尺寸/mm	通徑10	通徑20	通徑32
A	80	96	110
A1	60	70	96
B最大	158.5	164	184
B1	70	65	65
C	117	172	201
C1	51	89	112
D	G 3/8	G 3/4	G1 1/4
ΦJ	30	46	80
K	40	50	70
T	15	25	29
T1	54	57	63

尺寸/mm	通徑10	通徑20	通徑32
A	80	96	94
□A1	60	70	94
B最大	158.5	164	184
B1	70	65	65
C	117	172	201
D	G 3/8	G 3/4	G1 1/4
K	40	50	71
K1	51	89	112
K2	49	58	88
K3	33	35	47
T	54	57	63
T1	15	25	22

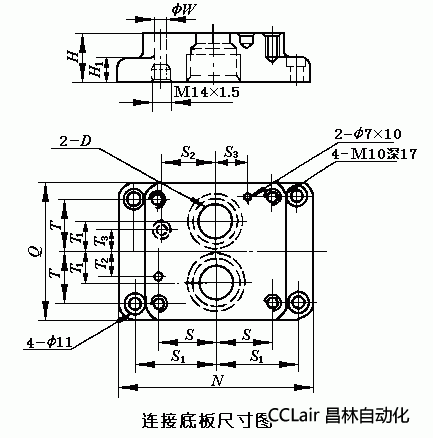

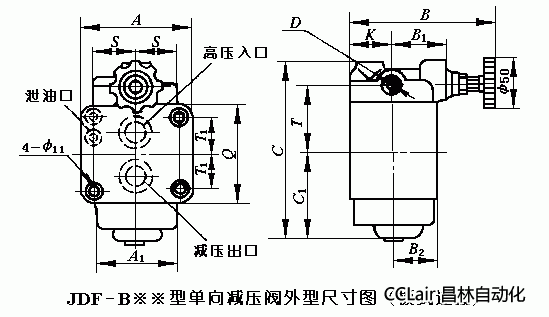

型號	尺寸/mm
	A	A1	B	B1	B2	C	C1	D	K	Q	S	T	T1
JF-B10※	90	60×60	153.5	69.5	49	117	49.5	M14×1.5	35	67	55	21	34
JF-B20※	102	70×70	154	65	58	172	81	M14×1.5	40	86	65	30	40

型號	尺寸/mm
	A	A1	B	B1	B2	C	C1	D	K	Q	T	T1	S
JDF-B10※	90	60	153.5	69.5	30	117	49.5	M14×1.5	35	67	34	55.5	21
JDF-B20※	102	70	154	65	35	172	81	M14×1.5	40	86	40	65	30

型號	尺寸/mm
	A	D	H	H1	N	Q	S	S1	S2	S3	T	T1	T2	T3	W
JFA-B10	90	M22×1.5	20	18	132	64	34	55	25	20	21	15	7	7	5
JFA-B20	102	M33×2	26	20	146	85	40	62	33	24	31	19	14.5	9	11

JF-B20H1-S,JF-B20H2-S,JF-B20H3-S,JDF-B32H1-S,JDF-B32H2-S,JDF-B32H3-S, JF-B32H1-S,JF-B32H2-S,JF-B32H3-S,JDF-B10G2-S,JDF-B10G3-S, JF-B10G1-S,JF-B10G2-S,JF-B10G3-S,JDF-B20G1-S,JDF-B20G2-S,JDF-B20G3-S, JF-B20G1-S,無錫昌林，JF-B20G2-S,JF-B20G3-S,JDF-B32G1-S,JDF-B32G2-S,JDF-B32G3-S, JF-B32G1-S,JF-B32G2-S,JF-B32G3-S,JDF-B10C1-S,JDF-B10C3-S, JF-B10C1-S,JF-B10C2-S,JF-B10C3-S,JDF-B20C1-S,JDF-B20C2-S,JDF-B20C3-S, JF-B20C1-S,JF-B20C2-S,JF-B20C3-S,JDF-B32C1-S,JDF-B32C2-S,JDF-B32C3-S, JF-B32C1-S,JF-B32C2-S,JF-B32C3-S,JDF-B10K1-S,JDF-B10K2-S,JDF-B10K3-S, JF-B10K1-S,JF-B10K2-S,JF-B10K3-S,JDF-B20K1-S,JDF-B20K2-S,JDF-B20K3-S, JF-B20K1-S,JF-B20K2-S,JF-B20K3-S,JDF-B32K1-S,JDF-B32K2-S,JDF-B32K3-S, JF-B32K1-S,JF-B32K2-S,JF-B32K3-S,JF-L32G2-S,JF-L32G3-S,JDF-L10C1-S,JDF-L10C2-S,JDF-L10C3-S, JF-L10C1-S,JF-L10C2-S,JF-L10C3-S,JDF-L20C1-S,JDF-L20C2-S,JDF-L20C3-S, JF-L20C1-S,JF-L20C2-S,JF-L20C3-S,JDF-L32C1-S,JDF-L32C2-S,JDF-L32C3-S, JF-L32C1-S,JF-L32C2-S,JF-L32C3-S,JDF-L10K1-S,JDF-L10K2-S,JDF-L10K3-S, JF-L10K1-S,JF-L10K2-S,JF-L10K3-S,JDF-L20K1-S,JDF-L20K2-S,JDF-L20K3-S, JF-L20K1-S,JF-L20K2-S,JF-L20K3-S,JDF-L32K1-S,JDF-L32K2-S,JDF-L32K3-S,無錫昌林，JF-L32K1-S,JF-L32K2-S,JF-L32K3-S,JDF-L10H4-S,JF-L10H4-S,JDF-B20H4-S,JF-B20H4-S,JDF-L20H4-S,JF-L20H4-S,JDF-B32H4-S,JF-B32H4-S,JDF-L32H4-S,JF-L32H4-S,JDF-B10G4-S,JF-B10G4-S,JDF-L10G4-S,JF-L10G4-S,JDF-B20G4-S,JF-B20G4-S,JDF-L20G4-S,JF-L20G4-S,JDF-B32G4-S,JF-B32G4-S,JDF-L32G4-S,JF-L32G4-S,JDF-B10C4-S,JF-B10C4-S,JDF-L10C4-S,JF-L10C4-S,JDF-B20C4-S,JF-B20C4-S,JDF-L20C4-S,JF-L20C4-S,JDF-B32C4-S,JF-B32C4-S,JDF-L32C4-S,JF-L32C4-S,JDF-B10K4-S,JF-B10K4-S,JDF-L10K4-S,JF-L10K4-S,JDF-B20K4-S,JF-B20K4-S,JDF-L20K4-S,JF-L20K4-S,JDF-B32K4-S,JF-B32K4-S,JDF-L32K4-S,JF-L32K4-S,
