ELM0.075-250/00/AF,ELM0.16-250/00/AF,ELM0.32-210/00/AF,隔膜式蓄能器

ELM0.075-250/00/AF,ELM0.16-250/00/AF,ELM0.32-210/00/AF,隔膜式蓄能器

訂貨代號(hào)	ELM0.075-250/00/AF	ELM0.16-250/00/AF	ELM0.32-210/00/AF	ELM0.5-210/00/AF	ELM0.050-210/00/CF	ELM0.75-160/00/CF*	ELM0.75-210/00/AF	ELM0.075-210/00/CF	ELM0.75-350/00/AF	ELM0.75-350/00/CF
接口形式	AF	AF	AF	AF	CF	CF	AF	CF	AF	CF
容積V0/L	0.075	0.16	0.32	0.50	0.50	0.75	0.75	0.75	0.75	0.75
最高工作壓力/bar	250	250	210	210	210	160	210	210	350	350
最高預(yù)充壓力/bar	130	130	130	130	130	130	130	130	130	130
最大壓縮比P2/P0	8	6	8	8	8	8	8	8	8	8
最大壓力變化值/bar	210	210	140	175	175	120	175	175	150	150
重量/kg	0.7	1	1.4	2	2	2.6	2.6	2.6	4.4	4.5

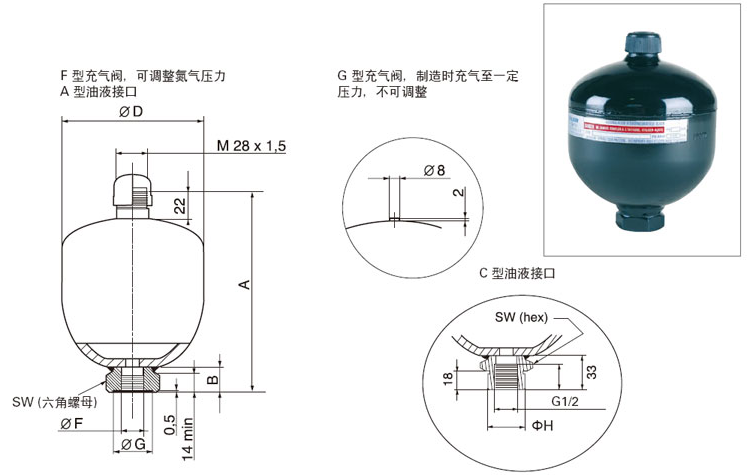

A	111	120	134	152	163	176	166	177	168	189
B	20	20	20	22	33	33	22	33	18	18
SW	32	32	32	41	41	41	41	41	41	41
D	64	75	93	106	106	121	122	122	133	133
G	29	29	29	34	-	-	34	-	34	-
油口螺紋 F H	G1/2	G1/2	G1/2	G1/2	G1/2	G1/2	G1/2	G1/2	G1/2	G1/2
	-	-	-	-	M33*1.5	-	-	M33*1.5	-	M33*1.5
卡箍型號(hào)	-	-	E95	E106	E106	E124	E124	E124	E136	E136
鎖緊螺母型號(hào)	-	-	-	-	M33	-	-	M33	-	M33

ELM0.5-210/00/AF,ELM0.050-210/00/CF,ELM0.75-160/00/CF,ELM0.75-210/00/AF,
ELM0.075-210/00/CF,ELM0.75-350/00/AF,ELM0.75-350/00/CF,
