詳細說明

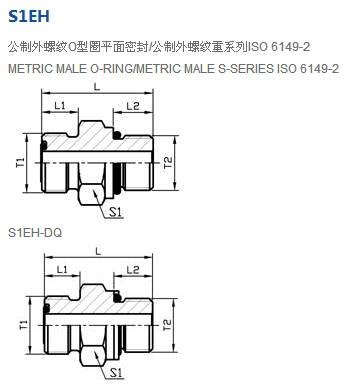

S1EH-12-10,S1EH-22-18,S1EH-30-27,S1EH-45-42,S1EH-52-48,S1EH-42,S1EH-27-22,平面密封接頭
產品技術參數：
| 代號 RAPT NO. | 螺紋 THREAD | 管子外徑 | 尺寸 DIMENSIONS | 工作壓力MPa | ||||
|---|---|---|---|---|---|---|---|---|
| T1 | T2 | TUBE O.D | L1 | L2 | L | S1 | ||
| S1EH-12-10 | M12X1.5 | M10X1 | 6A | 11 | 9.5 | 28 | 14 | 63 |
| S1EH-14-12 | M14X1.5 | M12X1.5 | 6 | 11 | 11 | 29.5 | 17 | |
| S1EH-16-14 | M16X1.5 | M14X1.5 | 8 | 11 | 11 | 29.5 | 19 | |
| S1EH-18-16 | M18X1.5 | M16X1.5 | 10 | 11 | 12.5 | 31.5 | 22 | |
| S1EH-22-18 | M22X1.5 | M18X1.5 | 12 | 12 | 14 | 34.5 | 24 | |
| S1EH-27-22 | M27X1.5 | M22X1.5 | 16 | 13 | 15 | 38 | 30 | 40 |
| S1EH-30-27 | M30X1.5 | M27X2 | 20 | 14 | 18.5 | 43.5 | 32 | |
| S1EH-36-33 | M36X2 | M33X2 | 25 | 16 | 18.5 | 47.5 | 41 | |
| S1EH-39-33 | M39X2 | M33X2 | 28 | 18 | 18.5 | 49.5 | 41 | |
| S1EH-42 | M42X2 | M42X2 | 30 | 20 | 19 | 54 | 50 | 25 |
| S1EH-45-42 | M45X2 | M42X2 | 35 | 20 | 19 | 54 | 50 | |
| S1EH-52-48 | M52X2 | M48X2 | 38 | 22 | 21.5 | 58.5 | 55 | |
