S1CFL9-22-08,S1CFL9-30-12,S1CFL9-45-20,S1CFL9-52-24,S1DFL9-24-08,S1DFL9-36-20,法蘭接頭

點擊圖片查看原圖

型號：	S1CFL9-22-08,S1CFL9-30-12,S1CFL9-45-20,S1CFL9-52-24,S1DFL9-24-08,S1DFL9-36-20
PDF下載：	如需產品詳細說明請與銷售客服聯系
瀏覽次數：	224

公司基本資料信息

聯系人銷售員1622(女士)
電話13861877712
地區江蘇-無錫市
地址無錫市會北路28-135

詳細說明

S1CFL9-22-08,S1CFL9-30-12,S1CFL9-45-20,S1CFL9-52-24,S1DFL9-24-08,S1DFL9-36-20,法蘭接頭

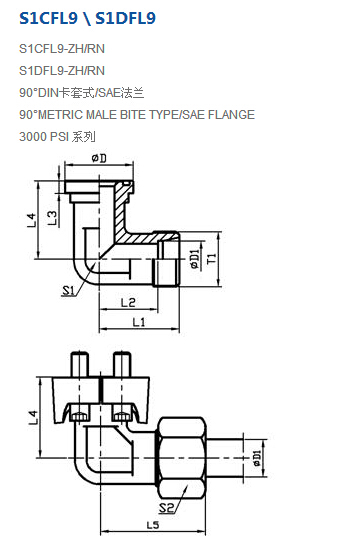

產品技術參數：

系列	代號 RAPT NO.	螺紋 THREAD	管子外徑 TUBE O.D	尺寸 DIMENSIONS								螺栓	重量克/件	工作壓力 (bar)
系列	代號 RAPT NO.	T1	D1	D	L1	L2	L3	L4	L5	S1	S2	螺栓	重量克/件	工作壓力 (bar)
L	S1CFL9-22-08	M22X1.5	15	30.2	36	29	6.7	36	44	24	27	M8X25	400	315
	S1CFL9-26-08	M26X1.5	18	30.2	37	29.5	6.7	36	46	24	32	M8X25	440	315
	S1CFL9-26-12	M26X1.5	18	38.1	39	31.5	6.7	42	48	30	32	M10X30	660	315
	S1CFL9-30-12	M30X2	22	38.1	41	33.5	6.7	42	50	30	36	M10X30	660	160
	S1CFL9-36-12	M36X2	28	38.1	41	33.5	6.7	42	50	30	41	M10X30	780	160
	S1CFL9-30-16	M30X2	22	44.5	65	57.5	8	45	74	36	36	M10X30	810	160
	S1CFL9-36-16	M36X2	28	44.5	44	36.5	8	45	53	36	41	M10X30	850	160
	S1CFL9-45-20	M45X2	35	50.8	57	46.5	8	50	68	41	50	M10X35	1150	160
	S1CFL9-45-24	M45X2	35	60.3	78	67.5	8	55	83	50	50	M10X35	1550	160
	S1CFL9-52-24	M52X2	42	60.3	58	47	8	55	70	50	60	M12X35	1600	160
S	S1DFL9-20-08	M20X1.5	12	30.2	50	42.5	6.7	36	58.5	22	24	M8X25	380	210
	S1DFL9-24-08	M24X1.5	16	30.2	38	29.5	6.7	36	48	24	30	M8X25	430	350
	S1DFL9-24-12	M24X1.5	16	38.1	64	55.5	6.7	42	73.5	27	30	M10X30	600	350
	S1DFL9-30-12	M30X2	20	38.1	43	32.5	6.7	42	54	30	36	M10X30	760	350
	S1DFL9-36-12	M36X2	25	38.1	45	33	6.7	42	57	30	46	M10X30	890	350
	S1DFL9-30-16	M30X2	20	44.5	65	54.5	8	45	77	36	36	M10X30	780	350
	S1DFL9-36-16	M36X2	25	44.5	48	36.5	8	45	57	36	46	M10X30	950	350
	S1DFL9-42-16	M42X2	30	44.5	50	36.5	8	45	63	36	50	M10X30	1060	350
	S1DFL9-36-20	M36X2	25	50.8	55	43	8	50	67	41	46	M10X35	1350	280
	S1DFL9-42-20	M42X2	30	50.8	57	43.5	8	50	71	41	50	M10X35	1400	280
	S1DFL9-52-20	M52X2	38	50.8	59	43	8	50	74	41	60	M10X35	1530	280
	S1DFL9-52-24	M52X2	38	60.3	64	48	8	55	79	50	60	M10X35	1950	210

如需配發蘭夾和螺釘在代號后加“ZH”,如S1DFS9-36-16ZH. S1CFL9-26-08,S1CFL9-26-12,S1CFL9-36-12,S1CFL9-30-16,S1CFL9-36-16,S1CFL9-45-24,
S1DFL9-20-08,S1DFL9-24-12,S1DFL9-30-12,S1DFL9-36-12,S1DFL9-30-16,
S1DFL9-36-16,S1DFL9-42-16,S1DFL9-42-20,S1DFL9-52-20,S1DFL9-52-24,
