詳細說明
S1CFG-16-30,S1CFG-18-30,S1CFG-16-35,S1CFG-26-35,S1CFG-30-40,S1DFG-24-35,法蘭接頭
S1CFG-18-35,S1CFG-22-35,S1CFG-22-40,S1CFG-26-40,S1CFG-36-40,S1DFG-30-55,

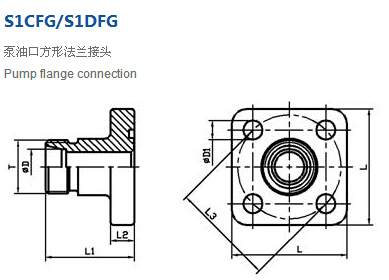

產品技術參數：
| 代 號 | 螺紋 THREAD | 管子外徑 ￠D | 尺寸 DIMENSIONS | 配用附件 | 重量 克/件 | 工作壓力 Mpa |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PART NO. | T1 | TUDE O.D ￠D | L | L1 | L2 | L3 | ￠D1 | 螺栓 BOLT | O形圈 O-RING | ||
| S1CFG-16-30 | M16X1.5 | 10 | 36 | 30 | 8 | 30 | 6.5 | 4XM6X22 | 20X2.5 | 112 | 31.5 |
| S1CFG-18-30 | M18X1.5 | 12 | 36 | 30 | 8 | 30 | 6.5 | 4XM6X22 | 20X2.5 | 117 | 31.5 |
| S1CFG-16-35 | M16X1.5 | 10 | 39 | 30 | 8 | 35 | 6.5 | 4XM6X22 | 20X2.5 | 128 | 31.5 |
| S1CFG-18-35 | M18X1.5 | 12 | 39 | 30 | 8 | 35 | 6.5 | 4XM6X22 | 20X2.5 | 132 | 31.5 |
| S1CFG-22-35 | M22X1.5 | 15 | 39 | 30 | 8 | 35 | 6.5 | 4XM6X22 | 20X2.5 | 149 | 25 |
| S1CFG-26-35 | M26X1.5 | 18 | 39 | 30 | 8 | 35 | 6.5 | 4XM6X22 | 20X2.5 | 167 | 25 |
| S1CFG-22-40 | M22X1.5 | 15 | 42 | 35 | 8 | 40 | 6.5 | 4XM6X22 | 20X2.5 | 174 | 10 |
| S1CFG-26-40 | M26X1.5 | 18 | 42 | 35 | 8 | 40 | 6.5 | 4XM6X22 | 20X2.5 | 196 | 10 |
| S1CFG-30-40 | M30X2 | 22 | 42 | 35 | 8 | 40 | 6.5 | 4XM6X22 | 20X2.5 | 211 | 10 |
| S1CFG-36-40 | M36X2 | 28 | 42 | 42 | 8 | 40 | 6.5 | 4XM6X22 | 20X2.5 | 258 | 10 |
| S1DFG-24-35 | M24X1.5 | 16 | 39 | 30 | 8 | 35 | 6.5 | 4XM6X22 | 20X2.5 | 161 | 31.5 |
| S1DFG-30-55 | M30X2 | 20 | 55 | 42 | 8 | 55 | 8.5 | 4XM8X22 | 32X2.5 | 335 | 25 |
