S1CG9-14-04OG,S1DG9-14-04OG,S1CG9-26-08OG,S1DG9-24-08OG,S1DG9-30-12OG,S1CG9-52-24OG,可調向接頭

點擊圖片查看原圖

型號：	S1CG9-14-04OG,S1DG9-14-04OG,S1CG9-26-08OG,S1DG9-24-08OG,S1DG9-30-12OG,S1CG9-52-24OG
PDF下載：	如需產品詳細說明請與銷售客服聯系
瀏覽次數：	255

公司基本資料信息

聯系人銷售員1622(女士)
電話13861877712
地區江蘇-無錫市
地址無錫市會北路28-135

詳細說明

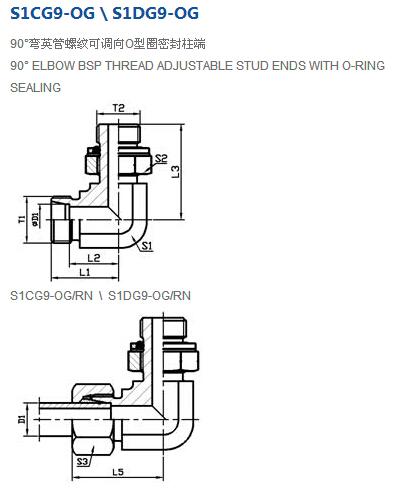

S1CG9-14-04OG,S1DG9-14-04OG,S1CG9-26-08OG,S1DG9-24-08OG,S1DG9-30-12OG,S1CG9-52-24OG,可調向接頭

產品技術參數：

系列	代號 RAPT NO.	螺紋 THREAD		管子外徑 TUBE O.D	尺寸 DIMENSIONS							重量克/件	工作壓力 (bar)
系列	代號 RAPT NO.	T1	T2	D1	L1	L2	L3	L4	S1	S2	S3	重量克/件	工作壓力 (bar)
L	S1CG9-14-04OG	M14X1.5	G1/4＂X19	08	23	16	32	31	14	19	17	59	315
	S1CG9-16-04OG	M16X1.5	G1/4＂X19	10	24	17	34	32	19	19	19	82	315
	S1CG9-18-06OG	M18X1.5	G3/8＂X19	12	26	19	37	34	19	22	22	96	250
	S1CG9-22-08OG	M22X1.5	G1/2＂X14	15	28	21	43	36	22	27	27	149	250
	S1CG9-26-08OG	M26X1.5	G1/2＂X14	18	31.5	24	46	40	27	27	32	221	250
	S1CG9-30-12OG	M30X2	G3/4＂X14	22	35.5	28	49	44	30	36	36	310	160
	S1CG9-36-16OG	M36X2	G1＂X11	28	38.5	31	59	47	36	41	41	455	160
	S1CG9-45-20OG	M45X2	G1.1/4＂X11	35	48.5	38	65	59	50	50	50	1043	160
	S1CG9-52-24OG	M52X2	G1.1/2＂X11	42	49	38	67	61	50	55	60	994	160
S	S1DG9-14-04OG	M14X1.5	G1/4＂X19	06	22	15	32	30	14	19	17	56	315
	S1DG9-16-04OG	M16X1.5	G1/4＂X19	08	24	17	36	32	19	19	19	88	315
	S1DG9-18-06OG	M18X1.5	G3/8＂X19	10	25	18	38	34	19	22	22	98	250
	S1DG9-20-06OG	M20X1.5	G3/8＂X19	12	29	22	38	38	22	22	24	128	250
	S1DG9-22-08OG	M22X1.5	G1/2＂X14	14	30	22	43	40	22	27	27	147	250
	S1DG9-24-08OG	M24X1.5	G1/2＂X14	16	33	25	46	43	27	27	30	234	250
	S1DG9-30-12OG	M30X2	G3/4＂X14	20	38	28	51	49	30	36	36	344	250
	S1DG9-36-16OG	M36X2	G1＂X11	25	42	30	58	54	36	41	46	533	250
	S1DG9-42-20OG	M42X2	G1.1/4＂X11	30	49	36	64	62	50	50	50	1085	160
	S1DG9-52-24OG	M52X2	G1.1/2＂X11	38	50	34	70	65	50	55	60	1116	160

注：如需帶卡套及卡套螺母整套訂貨，則請在代號后加“RN”，如S1CG9-30-12OG/RN。 S1CG9-16-04OG,S1CG9-18-06OG,S1CG9-22-08OG,S1CG9-30-12OG,S1CG9-36-16OG,
S1CG9-45-20OG,S1DG9-16-04OG,S1DG9-18-06OG,S1DG9-20-06OG,S1DG9-22-08OG,
S1DG9-36-16OG,S1DG9-42-20OG,S1DG9-52-24OG,
