詳細說明

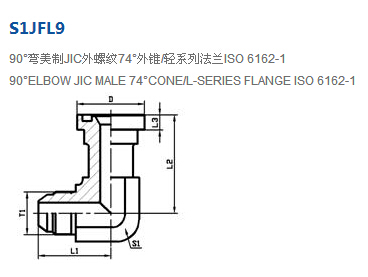

S1JFL9-08,S1JFL9-12,S1JFL9-16,S1JFL9-20,S1JFL9-24,S1JFL9-32,S1JFL9-20-24,錐面密封接頭
S1JFL9-08-12,S1JFL9-10-08,S1JFL9-10-12,S1JFL9-12-16,S1JFL9-16-12,S1JFL9-16-20,
S1JFL9-24-32,
產品技術參數：
| 代號 PART NO. | 螺紋 THREAD | 法蘭型號 FLANGE SIZE | 尺寸 DIMENSIONS | 重量 | 工作壓力MPa | ||||
|---|---|---|---|---|---|---|---|---|---|
| T1 | L1 | L2 | L3 | D | S1 | ||||
| S1JFL9-08 | 3/4＂X16 | 1/2＂ | 32.5 | 44 | 6.73 | 30.2 | 22 | 167 | 31 |
| S1JFL9-08-12 | 3/4＂X16 | 3/4＂ | 38 | 54.1 | 6.73 | 38.1 | 30 | 279 | |
| S1JFL9-10-08 | 7/8＂X14 | 1/2＂ | 37.5 | 44 | 6.73 | 30.2 | 24 | 182 | 24 |
| S1JFL9-10-12 | 7/8＂X14 | 3/4＂ | 41 | 54.1 | 6.73 | 38.1 | 30 | 292 | |
| S1JFL9-12 | 1.1/16＂X12 | 3/4＂ | 44.5 | 54.1 | 6.73 | 38.1 | 30 | 322 | |
| S1JFL9-12-16 | 1.1/16＂X12 | 1＂ | 48 | 60.2 | 8 | 44.4 | 33 | 410 | |
| S1JFL9-16 | 1.5/16＂X12 | 1＂ | 49 | 60.2 | 8 | 44.4 | 33 | 450 | 21 |
| S1JFL9-16-12 | 1.5/16＂X12 | 3/4＂ | 49 | 54.1 | 6.73 | 38.1 | 30 | 421 | |
| S1JFL9-16-20 | 1.5/16＂X12 | 1.1/4＂ | 54 | 66.5 | 8 | 50.8 | 41 | 597 | 20 |
| S1JFL9-20 | 1.5/8＂X12 | 1.1/4＂ | 55.5 | 66.5 | 8 | 50.8 | 41 | 666 | 17 |
| S1JFL9-20-24 | 1.5/8＂X12 | 1.1/2＂ | 60 | 79.3 | 8 | 60.3 | 50 | 955 | |
| S1JFL9-24 | 1.7/8＂X12 | 1.1/2＂ | 62.5 | 79.3 | 8 | 60.3 | 50 | 1015 | 14 |
| S1JFL9-24-32 | 1.7/8＂X12 | 2＂ | 74.5 | 108 | 9.53 | 71.4 | 60 | 1675 | |
| S1JFL9-32 | 2.1/2＂X12 | 2＂ | 80 | 108 | 9.53 | 71.4 | 60 | 1978 | 10.5 |
S1JFL9-24-32,
