詳細說明
S1JFS-08,S1JFS-10-08,S1JFS-12,S1JFS-16,S1JFS-20,S1JFS-24,S1JFS-10-12,錐面密封接頭
S1JFS-12-16,S1JFS-16-12,S1JFS-16-20,S1JFS-20-16,S1JFS-20-24,S1JFS-24-20,

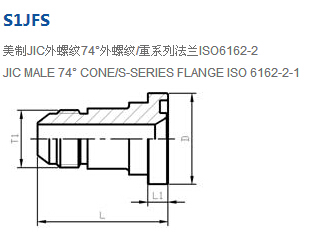

產(chǎn)品技術參數(shù)：
| 代號 PART NO. | 螺紋 THREAD | 法蘭型號 FLANGE SIZE | 尺寸 DIMENSIONS | 重量（g) | 工作壓力MPa | ||
|---|---|---|---|---|---|---|---|
| T1 | L1 | D | L | ||||
| S1JFS-08 | 3/4＂X16 | 1/2＂ | 7.75 | 31.7 | 47.5 | 70 | 31 |
| S1JFS-10-08 | 7/8＂X14 | 1/2＂ | 7.75 | 31.7 | 50 | 90 | 24 |
| S1JFS-10-12 | 7/8＂X14 | 3/4＂ | 8.76 | 41.3 | 55 | 99 | |
| S1JFS-12 | 1.1/16＂X12 | 3/4＂ | 8.76 | 41.3 | 56.7 | 146 | |
| S1JFS-12-16 | 1.1/16＂X12 | 1＂ | 9.53 | 47.6 | 61.5 | 158 | |
| S1JFS-16-12 | 1.5/16＂X12 | 3/4＂ | 8.76 | 41.3 | 57.8 | 205 | 21 |
| S1JFS-16 | 1.5/16＂X12 | 1＂ | 9.53 | 47.6 | 62.8 | 224 | 20 |
| S1JFS-16-20 | 1.5/16＂X12 | 1.1/4＂ | 10.29 | 54 | 67.7 | 241 | 17 |
| S1JFS-20-16 | 1.5/8＂X12 | 1＂ | 9.53 | 47.6 | 64 | 234 | |
| S1JFS-20 | 1.5/8＂X12 | 1.1/4＂ | 10.29 | 54 | 68.9 | 349 | |
| S1JFS-20-24 | 1.5/8＂X12 | 1.1/2＂ | 12.57 | 63.5 | 73.5 | 356 | 14 |
| S1JFS-24-20 | 1.7/8＂X12 | 1.1/4＂ | 10.29 | 54 | 72 | 432 | |
| S1JFS-24 | 1.7/8＂X12 | 1.1/2＂ | 12.57 | 63.5 | 76.7 | 438 | |
