詳細說明

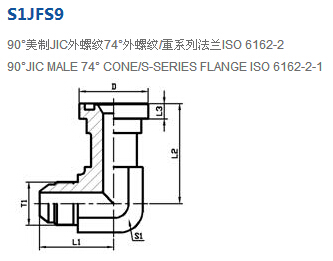

S1JFS9-08,S1JFS9-10-08,S1JFS9-12,S1JFS9-16,S1JFS9-20,S1JFS9-24,錐面密封接頭
產品技術參數：
| 代號 PART NO. | 螺紋 THREAD | 法蘭型號 FLANGE SIZE | 尺寸 DIMENSIONS | 重量（g) | 工作壓力MPa | ||||
|---|---|---|---|---|---|---|---|---|---|
| T1 | L1 | L2 | L3 | D | S1 | ||||
| S1JFS9-08 | 3/4＂X16 | 1/2＂ | 32.5 | 44 | 7.75 | 31.7 | 24 | 185 | 31 |
| S1JFS9-10-08 | 7/8＂X14 | 1/2＂ | 37.5 | 44 | 7.75 | 31.7 | 24 | 202 | 24 |
| S1JFS9-10-12 | 7/8＂X14 | 3/4＂ | 41 | 54.1 | 8.76 | 41.3 | 30 | 297 | |
| S1JFS9-12 | 1.1/16＂X12 | 3/4＂ | 44.2 | 54.1 | 8.76 | 41.3 | 30 | 326 | |
| S1JFS9-12-16 | 1.1/16＂X12 | 1＂ | 48 | 60.2 | 9.6 | 47.6 | 36 | 455 | |
| S1JFS9-16 | 1.5/16＂X12 | 1＂ | 51.5 | 60.2 | 9.53 | 47.6 | 36 | 503 | 21 |
| S1JFS9-16-12 | 1.5/16＂X12 | 3/4＂ | 49 | 54.1 | 8.76 | 41.3 | 30 | 386 | |
| S1JFS9-16-20 | 1.5/16＂X12 | 1.1/4＂ | 54 | 66.5 | 10.29 | 54 | 41 | 634 | |
| S1JFS9-20 | 1.5/8＂X12 | 1.1/4＂ | 55.5 | 66.5 | 10.29 | 54 | 41 | 707 | 17 |
| S1JFS9-20-24 | 1.5/8＂X12 | 1.1/2＂ | 59.5 | 79.3 | 12.57 | 63.5 | 50 | 1050 | |
| S1JFS9-24 | 1.7/8＂X12 | 1.1/2＂ | 62.5 | 79.3 | 12.57 | 63.5 | 50 | 1111 | 14 |
S1JFS9-10-12,S1JFS9-12-16,S1JFS9-16-12,S1JFS9-16-20,S1JFS9-20-24,
