詳細說明

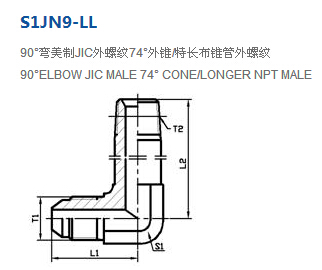

S1JN9-04LL,S1JN9-06LL,S1JN9-12LL,S1JN9-16LL,S1JN9-20LL,S1JN9-24LL,錐面密封接頭
S1JN9-05-04LL,S1JN9-06-04LL,S1JN9-08-06LL,S1JN9-10-08LL,
產品技術參數：
| 代號 PART NO. | 螺紋 THREAD | 尺寸 DIMENSIONS | 重量 | 工作壓力MPa | |||
|---|---|---|---|---|---|---|---|
| T1 | T2 | L1 | L2 | S1 | |||
| S1JN9-04LL | 7/16＂X20 | Z1/4＂X18 | 24.5 | 51.5 | 14 | 51 | 27.5 |
| S1JN9-05-04LL | 1/2＂X20 | Z1/4＂X18 | 24.5 | 52.6 | 14 | 55 | |
| S1JN9-06-04LL | 9/16＂X18 | Z1/4＂X18 | 26.9 | 52.6 | 14 | 60 | |
| S1JN9-06LL | 9/16＂X18 | Z3/8＂X18 | 29 | 61.5 | 19 | 92 | |
| S1JN9-08-06LL | 3/4＂X16 | Z3/8＂X18 | 32 | 61.5 | 19 | 117 | 21 |
| S1JN9-10-08LL | 7/8＂X14 | Z1/2＂X14 | 37 | 72.9 | 22 | 187 | |
| S1JN9-12LL | 1.1/16＂X12 | Z3/4＂X14 | 42.5 | 83.3 | 27 | 313 | 17 |
| S1JN9-16LL | 1.5/16＂X12 | Z1＂X11.5 | 46 | 102.9 | 33 | 536 | |
| S1JN9-20LL | 1.5/8＂X12 | Z1.1/4＂X11.5 | 53 | 127 | 41 | 991 | 8 |
| S1JN9-24LL | 1.7/8＂X12 | Z1.1/2＂X11.5 | 60 | 141 | 48 | 1370 | 7 |
