詳細說明

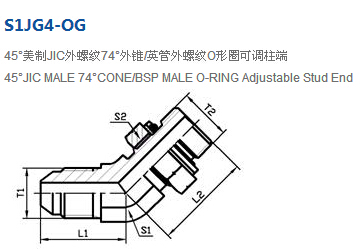

S1JG4-04OG,S1JG4-06OG,S1JG4-08OG,S1JG4-10OG,S1JG4-12OG,S1JG4-20OG,S1JG4-24OG,錐面密封接頭
S1JG4-05-04OG,S1JG4-06-04OG,S1JG4-08-06OG,S1JG4-10-08OG,S1JG4-12-10OG,S1JG4-12-16OG,
S1JG4-16-12OG,S1JG4-16OG,
產品技術參數：
| 代號 PART NO. | 螺紋 THREAD | 尺寸 DIMENSIONS | 重量 | 工作壓力MPa | ||||
|---|---|---|---|---|---|---|---|---|
| T1 | T2 | L1 | L2 | S1 | S2 | |||
| S1JG4-04OG | 7/16＂X20 | G1/4＂X19 | 21 | 28 | 14 | 19 | 39 | 31.5 |
| S1JG4-05-04OG | 1/2＂X20 | G1/4＂X19 | 21 | 28 | 14 | 19 | 42 | |
| S1JG4-06-04OG | 9/16＂X18 | G1/4＂X19 | 22 | 28 | 14 | 19 | 43 | |
| S1JG4-06OG | 9/16＂X18 | G3/8＂X19 | 23 | 32 | 19 | 22 | 68 | 25 |
| S1JG4-08-06OG | 3/4＂X16 | G3/8＂X19 | 25.8 | 32 | 19 | 22 | 90 | |
| S1JG4-08OG | 3/4＂X16 | G1/2＂X14 | 27.8 | 36 | 22 | 27 | 128 | |
| S1JG4-10-08OG | 7/8＂X14 | G1/2＂X14 | 29.5 | 38 | 22 | 27 | 148 | 24 |
| S1JG4-10OG | 7/8＂X14 | G5/8＂X14 | 29.5 | 38 | 22 | 30 | 153 | - |
| S1JG4-12-10OG | 1.1/16＂X12 | G5/8＂X14 | 34 | 38.5 | 27 | 30 | 196 | - |
| S1JG4-12-16OG | 1.1/16＂X12 | G1＂X11 | 37.5 | 44 | 33 | 41 | 308 | 20 |
| S1JG4-12OG | 1.1/16＂X12 | G3/4＂X14 | 32.5 | 42 | 27 | 32 | 224 | 16 |
| S1JG4-16-12OG | 1.5/16＂X12 | G3/4＂X14 | 38 | 44 | 33 | 32 | 296 | |
| S1JG4-16OG | 1.5/16＂X12 | G1＂X11 | 38 | 44 | 33 | 41 | 358 | |
| S1JG4-20OG | 1.5/8＂X12 | G1.1/4＂X11 | 43 | 47.5 | 41 | 50 | 589 | |
| S1JG4-24OG | 1.7/8＂X12 | G1.1/2＂X11 | 49 | 51.5 | 48 | 55 | 776 | 14 |
S1JG4-16-12OG,S1JG4-16OG,
