詳細說明

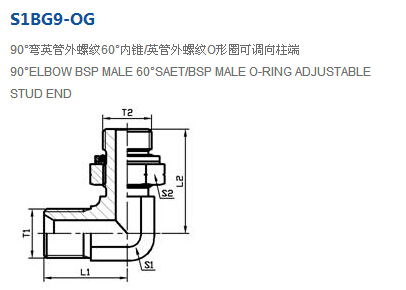

S1BG9-04OG,S1BG9-06OG,S1BG9-08OG,S1BG9-12OG,S1BG9-16OG,S1BG9-20OG,S1BG9-24OG,錐面密封接頭
產品技術參數：
| 代 號 PART NO. | 螺紋 THREAD | 尺寸 DIMENSIONS | ||||
|---|---|---|---|---|---|---|
| T1 | T2 | L1 | L2 | S1 | S2 | |
| S1BG9-04OG | G1/4＂X19 | G1/4＂X19 | 25 | 31.5 | 14 | 19 |
| S1BG9-04-06OG | G1/4＂X19 | G3/8＂X19 | 26.5 | 36.8 | 16 | 22 |
| S1BG9-06OG | G3/8＂X19 | G3/8＂X19 | 28 | 36.8 | 16 | 22 |
| S1BG9-06-08OG | G3/8＂X19 | G1/2＂X14 | 31 | 43.2 | 22 | 27 |
| S1BG9-08OG | G1/2＂X14 | G1/2＂X14 | 34.5 | 43.2 | 22 | 27 |
| S1BG9-08-12OG | G1/2＂X14 | G3/4＂X14 | 40 | 49.3 | 27 | 32 |
| S1BG9-12OG | G3/4＂X14 | G3/4＂X14 | 40 | 49.3 | 27 | 32 |
| S1BG9-12-16OG | G3/4＂X14 | G1＂X11 | 45 | 53 | 33 | 41 |
| S1BG9-16OG | G1＂X11 | G1＂X11 | 46 | 53 | 33 | 41 |
| S1BG9-20-16OG | G1.1/4＂X11 | G1＂X11 | 50.5 | 58 | 41 | 41 |
| S1BG9-20OG | G1.1/4＂X11 | G1.1/4＂X11 | 51.5 | 58 | 41 | 50 |
| S1BG9-24OG | G1.1/2＂X11 | G1.1/2＂X11 | 58.5 | 63 | 48 | 55 |
