詳細說明

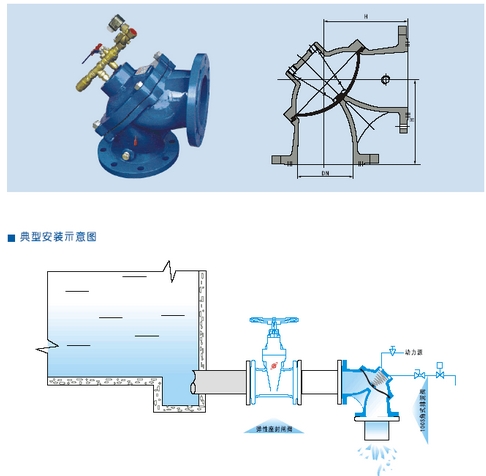

100S-10C,100S-25C,100S-40C,100S-10P,100S-25P,100S-40P,角式排泥閥
★100S角式排泥閥主要零件
閥體閥蓋：鑄鐵，鑄鋼、球墨鑄鐵、鑄鋼
閥瓣、彈簧：不銹鋼
膜片：尼龍強化橡膠
結構形式：角式
★100S角式排泥閥技術參數
壓力等級：1.0Mpa、1.6Mpa、2.5Mpa、4.0MPa
最高工作壓力：0.2Mpa ~0.6Mpa
密封實驗壓力：0.275~0.66Mpa
閥體式樣壓力：0.9Mpa
法蘭壓力等級：PN10或客戶指定
操作壓力范圍：0.05~0.6Mpa
操作溫度：0℃~80℃
壽命范圍：15000次以上
★100S角式排泥閥主要零件
|
零件名稱
|
閥體閥蓋
|
閥瓣，彈簧
|
膜片
|
|
材質
|
鑄鐵，鑄鋼，球磨鑄鐵
|
不休鋼
|
尼龍強化橡膠
|
★100S角式排泥閥連接尺寸
|
DN
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
|
H
|
125
|
145
|
155
|
175
|
200
|
225
|
275
|
325
|
375
|
100S-10C-DN150,100S-10C-DN200,100S-10C-DN250,100S-10C-DN80,100S-10C-DN100,
100S-25C-DN50,100S-25C-DN65,100S-25C-DN80,100S-25C-DN100,100S-10C-DN125,
100S-25C-DN150,100S-25C-DN200,100S-25C-DN300,100S-10C-DN65,100S-25C-DN250,
100S-40C-DN50,100S-40C-DN65,100S-40C-DN80,100S-40C-DN100,100S-40C-DN125,
100S-40C-DN150,100S-40C-DN200,100S-40C-DN250,100S-40C-DN300,
100S-16C-DN50,100S-16C-DN65,100S-16C-DN80,100S-16C-DN100,
100S-16C-DN150,100S-16C-DN200,100S-16C-DN250,100S-16C-DN300,
100S-10P-DN50,100S-25P-DN125,100S-16P-DN125,100S-10P-DN300,
100S-10P-DN150,100S-10P-DN200,100S-10P-DN250,100S-10P-DN80,100S-10P-DN100,
100S-25P-DN50,100S-25P-DN65,100S-25P-DN80,100S-25P-DN100,100S-10P-DN125,
100S-25P-DN150,100S-25P-DN200,100S-25P-DN300,100S-10P-DN65,100S-25P-DN250,
100S-40P-DN50,100S-40P-DN65,100S-40P-DN80,100S-40P-DN100,
100S-40P-DN150,100S-40P-DN200,100S-40P-DN250,100S-40P-DN300,
100S-16P-DN50,100S-16P-DN65,100S-16P-DN80,100S-16P-DN100,
