詳細說明
UJ11-UJ11SM-15C,UJ11-UJ11SM-25C,UJ11-UJ11SM-25P,UJ11-UJ11SM-40P,UJ11-UJ11SM-15R,內螺紋柱塞閥
產品名稱：內螺紋連接柱塞閥
產品特點：內螺紋連接分非金屬密封，金屬密封兩類，此外，外螺紋連接柱塞閥其外形分為Z字形和腰鼓形兩大類，其內部結構完全相同，用途一樣，主要用在冶金、電業、化工、煉油、食品等行業。壓力為16-25kgf/cm2以內，溫度為250℃以下的水、蒸汽、油類等小口徑管道上作開啟、關閉調節流量用。

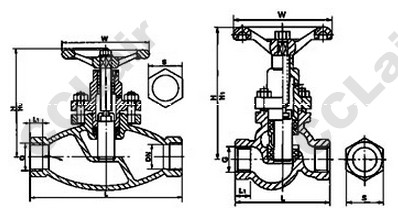

二、內螺紋柱塞閥主要連接、結構尺寸：
|
DN(mm) |
UJ11-UJ11SM-15、25、40C、P、R |
|||||
|
15 |
20 |
25 |
32 |
40 |
50 |
|
|
L |
90 |
100 |
120 |
140 |
170 |
200 |
|
H |
120 |
140 |
165 |
175 |
195 |
213 |
|
H1 |
148 |
175 |
205 |
215 |
246 |
268 |
|
W |
80 |
100 |
120 |
140 |
160 |
180 |
|
G |
1/2'' |
3/4” |
1” |
11/4” |
11/2” |
2” |
|
L1 |
14 |
16 |
18 |
20 |
22 |
24 |
|
S |
32 |
36 |
46 |
55 |
65 |
80 |
|
重量（千克） |
1．5 |
2.5 |
3.5 |
5.5 |
8.5 |
12 |
UJ11-UJ11SM-25P-DN15,UJ11-UJ11SM-40P-DN15,UJ11-UJ11SM-15R-DN15,UJ11-UJ11SM-25R-DN15,UJ11-UJ11SM-40R-DN15,
UJ11-UJ11SM-15C-DN20,UJ11-UJ11SM-25C-DN20,UJ11-UJ11SM-40C-DN20,UJ11-UJ11SM-15P-DN20,
UJ11-UJ11SM-25P-DN20,UJ11-UJ11SM-40P-DN20,UJ11-UJ11SM-15R-DN20,UJ11-UJ11SM-25R-DN20,UJ11-UJ11SM-40R-DN20,
UJ11-UJ11SM-15C-DN25,UJ11-UJ11SM-25C-DN25,UJ11-UJ11SM-40C-DN25,UJ11-UJ11SM-15P-DN25,
UJ11-UJ11SM-25P-DN25,UJ11-UJ11SM-40P-DN25,UJ11-UJ11SM-15R-DN25,UJ11-UJ11SM-25R-DN25,UJ11-UJ11SM-40R-DN25,
UJ11-UJ11SM-15C-DN32,UJ11-UJ11SM-25C-DN32,CCLAIR,UJ11-UJ11SM-40C-DN32,UJ11-UJ11SM-15P-DN32,
UJ11-UJ11SM-25P-DN32,UJ11-UJ11SM-40P-DN32,UJ11-UJ11SM-15R-DN32,UJ11-UJ11SM-25R-DN32,UJ11-UJ11SM-40R-DN32,
UJ11-UJ11SM-15C-DN40,UJ11-UJ11SM-25C-DN40,UJ11-UJ11SM-40C-DN40,UJ11-UJ11SM-15P-DN40,
UJ11-UJ11SM-25P-DN40,UJ11-UJ11SM-40P-DN40,UJ11-UJ11SM-15R-DN40,UJ11-UJ11SM-25R-DN40,UJ11-UJ11SM-40R-DN40,
UJ11-UJ11SM-15C-DN50,UJ11-UJ11SM-25C-DN50,UJ11-UJ11SM-40C-DN50,UJ11-UJ11SM-15P-DN50,
UJ11-UJ11SM-25P-DN50,UJ11-UJ11SM-40P-DN50,UJ11-UJ11SM-15R-DN50,UJ11-UJ11SM-25R-DN50,UJ11-UJ11SM-40R-DN50,
一、產品[柱塞閥]的詳細資料：
