詳細說明
DZD5 基型
DZD5-5,DZD5-10,DZD5-20,DZD5-40,DZD5-50,DZD5-80,DZD5-100,DZD5-160,
DZD5-220,DZD5-320,DZD5-480,DZD5-1000,干式單片電磁制動器
DZD5 B型
DZD5-160B,DZD5-220B,DZD5-320B,DZD5-480B,DZD5-1000B,DZD5-5B,DZD5-10B,
DZD5-20B,DZD5-40B,DZD5-50B,DZD5-80B,DZD5-100B
DZD5 A型
DZD5-5A,DZD5-10A,DZD5-20A,DZD5-40A,DZD5-50A,DZD5-80A,
DZD5-100A,DZD5-160A,DZD5-220A,DZD5-320A,DZD5-480A,DZD5-1000A,
特別提醒：
1) 電磁制動器不得碰撞、墜落或使猛力安裝，否則會導致變形而影響使用；
2) 必須清除摩擦面上的油脂物，可以用丙酮、酒精等清除；
3) 絕不允許用力拉拽、彎折引出線；
4) 安裝時不僅要保證磁軛安裝面與軸的垂直度，法蘭與軸的配*用H7/h6，并做好軸向定位，同時保證圖示δ間隙，法蘭(A)的緊定螺釘在擰入前要涂好防松膠；
5) 安裝時絕不允許用猛力打入法蘭，當配*用H7/h6時，為防止法蘭變形，應采用專用的安裝套筒，而且可以較輕松的裝入.

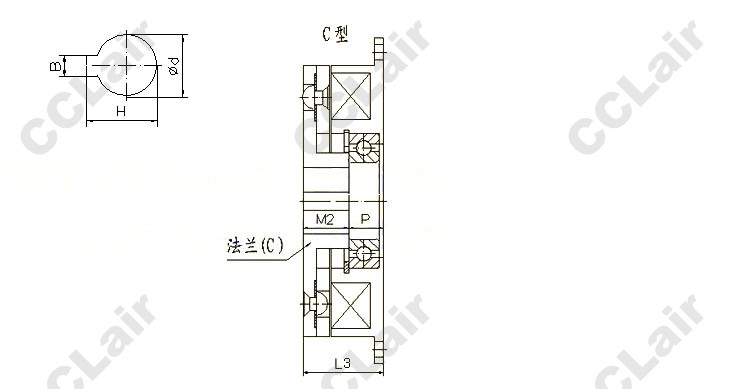

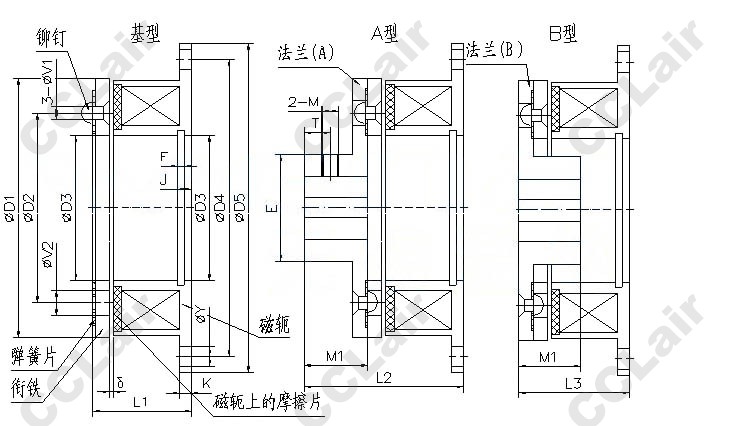

| 外型及安裝尺寸 |
| 規格(NM) | D1 | D2 | D3 | D4 | D5 | L1 | L2 | L3 | M1 | M2 | P | Y | V1 | J | E | T | M | d | H | B | δ |
| DZD5-5 | 63 | 46 | 35 | 72 | 80 | 22 | 37 | 25.5 | 15 | 12 | 14 | 5 | 3-3.1 | 3.5 | 26 | 6 | M4 | 12/15 | 13.8/17.3 | 4/5 | 0.2 |
| DZD5-10 | 80 | 60 | 42 | 90 | 100 | 24.5 | 44.5 | 28.5 | 20 | 14 | 14 | 6 | 3-4.1 | 4.3 | 31 | 8 | M5 | 15/20 | 17.3/22.8 | 5/6 | 0.2 |
| DZD5-20 | 100 | 76 | 52 | 112 | 125 | 28 | 53 | 33 | 25 | 17 | 15 | 7 | 3-5.2 | 5 | 41 | 10 | M5 | 20/25 | 22.8/28.3 | 6/8 | 0.2 |
| DZD5-40 | 125 | 95 | 62 | 137 | 150 | 31 | 61 | 37 | 30 | 20 | 16 | 7 | 3-6.2 | 5.5 | 49 | 12 | M6 | 25/30 | 28.3/33.3 | 6/8 | 0.4 |
| DZD5-50 | 135 | 95 | 62 | 150 | 160 | 33 | 63 | 39 | 30 | 20 | 16 | 7 | 3-6.2 | 5.5 | 49 | 12 | M6 | 25/30 | 28.3/33.3 | 8/8 | 0.4 |
| DZD5-80 | 160 | 120 | 80 | 175 | 190 | 35 | 73 | 42 | 38 | 25.5 | 17 | 9 | 3-8.2 | 6 | 65 | 15 | M8 | 30/40 | 33.3/43.3 | 8/8 | 0.4 |
| DZD5-100 | 180 | 120 | 80 | 195 | 210 | 39 | 75.5 | 45.5 | 38 | 28.5 | 17 | 9 | 3-8.2 | 6 | 65 | 15 | M8 | 30/40 | 33.3/43.3 | 8/12 | 0.4 |
| DZD5-160 | 200 | 158 | 100 | 215 | 230 | 41.5 | 86.5 | 50.5 | 45 | 29.5 | 21 | 9 | 3-10.3 | 7 | 83 | 18 | M8 | 40/50 | 43.3/53.8 | 12/14 | 0.5 |
| DZD5-220 | 230 | 158 | 100 | 245 | 260 | 45 | 88.5 | 53.5 | 45 | 32.5 | 21 | 9 | 3-10.3 | 7 | 83 | 18 | M8 | 40/50 | 43.3/53.8 | 12/14 | 0.5 |
| DZD5-320 | 260 | 210 | 125 | 276 | 292 | 48 | 102 | 59 | 54 | 38.5 | 21 | 11 | 4-12.3 | 8 | 105 | 22 | M10 | 50/60 | 53.8/64.4 | 14/18 | 0.6 |
| DZD5-480 | 285 | 210 | 125 | 315 | 335 | 59 | 107.5 | 67.5 | 54 | 46.5 | 21 | 11 | 4-12.3 | 8 | 105 | 22 | M10 | 50/60 | 53.8/64.4 | 14/18 | 0.6 |
| DZD5-1000 | 400 | 315 | 200 | 420 | 440 | 70 | 143.5 | 85.5 | 76 | 59.5 | 26 | 13 | 4-16.4 | 13 | 130 | 30 | M12 | 80/100 | 85.4/106.4 | 22/28 | 0.7 |
