詳細說明
KB2H04-M5,KB2H04-M6,KB2H04-01S,KB2H04-02S,KB2H06-M5,KB2H06-M6,KB2H06-01S,外螺直接頭,價格

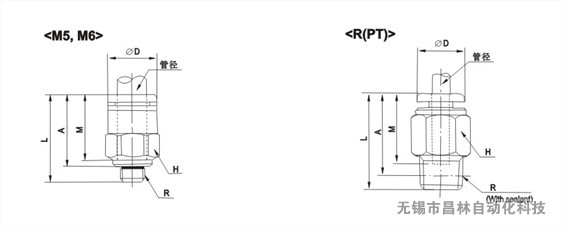

| MODEL | R | 管徑 | H | φD | L | A | M | CT(mm2) | 重量 |
| KB2H04-M5 | M5×0.8 | 4 | 8 | 8 | 17 | 13.9 | 12.7 | 4 | 2.4 |
| KB2H04-M6 | M6×1.0 | 18 | 2.5 | ||||||
| KB2H04-01S | 1/8 | 10 | -- | 22 | 18 | 16 | 5.6 | 9 | |
| KB2H04-02S | 1/4 | 14 | 19.5 | 13.5 | 16 | ||||
| KB2H06-M5 | M5×0.8 | 6 | 10 | 10 | 17.8 | 14.7 | 13.5 | 4 | 3.3 |
| KB2H06-M6 | M6×1.0 | 19 | 14.9 | 3.4 | |||||
| KB2H06-01S | 1/8 | 12 | -- | 22.5 | 18.5 | 17 | 13.1 | 16 | |
| KB2H06-02S | 1/4 | 14 | 23 | 17 | 14 | ||||
| KB2H06-03S | 3/8 | 17 | 22 | 15.5 | 27 | ||||
| KB2H08-01S | 1/8 | 8 | 14 | -- | 28 | 24 | 18.5 | 26.1 | 21 |
| KB2H08-02S | 1/4 | 26.5 | 20.5 | 19 | |||||
| KB2H08-03S | 3/8 | 17 | 22 | 15.5 | 26 | ||||
| KB2H10-01S | 1/8 | 10 | 17 | -- | 30 | 26 | 21 | 26.1 | 19 |
| KB2H10-02S | 1/4 | 33.5 | 27.5 | 41.5 | 30 | ||||
| KB2H10-03S | 3/8 | 17 | 29 | 22.5 | |||||
| KB2H10-04S | 1/2 | 22 | 27 | 19 | 53 | ||||
| KB2H12-02S | 1/4 | 12 | 18 | -- | 34.5 | 28.5 | 22 | 58.3 | 42 |
| KB2H12-03S | 3/8 | -- | 30 | 23.5 | 34 | ||||
| KB2H12-04S | 1/2 | 22 | 22 | 51 |
