該型閥門采用平面密封和錐面密封兩種密封型式，可使用于不同工況的介質要求，具有密封性能穩定，使用壽命長。逆時針轉動手輪驅使閥桿帶動閥瓣及膈膜迅速上升，打開通道使介質順利通過。
J41H不銹鋼法蘭截止閥應用規范:
1、設計制造按GB12235-89
2、結構長度按GB12221-89
3、法蘭尺寸按JB/G79-94
4、閥門檢查和試驗按GB13927
J41H不銹鋼法蘭截止閥性能規范
型號 | 公稱壓力 | 試驗壓力 | 工作溫度(℃) | 適用介質 | ||
強度(水)(Mpa) | 密封(水)空氣(Mpa) | 低壓密封空氣(Mpa) | ||||
J41W-16P(R) | 1.6 | 2.4 | 1.8 | 0.6 | ≤200 | NITRIC ACID |
J41W-25P(R) | 2.5 | 3.8 | 2.8 | 0.6 | ≤200 | 硝酸類 |
ACETIC ACID | ||||||
醋酸類 | ||||||
NITRIV ACID | ||||||
硝酸類 | ||||||
J41W-40P(R) | 4.0 | 6.0 | 4.4 | 0.6 | ≤200 | ACETIC ACID |
J41W-64P(R) | 6.4 | 9.6 | 7.0 | 0.6 | ≤200 | 醋酸類 |
J41H不銹鋼法蘭截止閥主要零件材質
| 零件名稱 | ZG1Cr18Ni9Ti系列 | ZG00Cr18Ni10系列 | ZG1Cr18Ni12Mo2Ti系列 | ZG00Cr17Ni14Mo2系列 | WCB系列 |
閥體/閥蓋 | ZG1Cr18Ni9Ti | ZG00Cr18Ni10 | ZG1Cr18Ni12Mo2Ti | ZG00Cr17Ni14Mo2 | WCB |
閥瓣 | ZG1Cr18Ni9Ti | ZG00Cr18Ni10 | ZG1Cr18Ni12Mo2Ti | ZG00Cr17Ni14Mo2 | 1Cr13 |
閥桿 | ZG1Cr18Ni9Ti | 00Cr18Ni10 | 1Cr18Ni12Mo2Ti | 00Cr17Ni14Mo2 | 1Cr13 |
填料 | PTFE編織 | PTFE編織 | PTFE編織 | PTFE編織 | 石墨 |
墊片 | 304+PTFE | 304L+PTFE | 316+PTFE | 316L+PTFE | 石墨+304 |
壓蓋 | ZG1Cr18Ni9Ti | ZG00Cr18Ni10 | ZG1Cr18Ni12Mo2Ti | ZG00Cr17Ni14Mo2 | WCB |
填料壓環 | 1Cr18Ni9Ti | 00Cr18Ni10 | 1Cr18Ni12Mo2Ti | 00Cr17Ni14Mo2 | 1Cr13 |
螺栓 | 1Cr17Ni2 | 1Cr17Ni2 | 1Cr17Ni2 | 1Cr17Ni2 | 35CrMoA |
螺母 | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 45 |

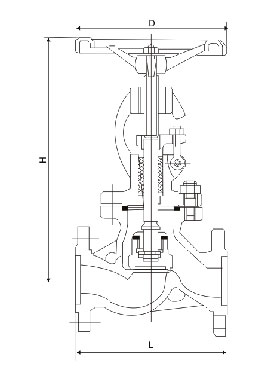

J41H不銹鋼法蘭截止閥1.6MPa主要連接尺寸及重量
尺寸 | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
L | mm | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 650 | 750 | 850 | 950 |
H | mm | 200 | 243 | 253 | 280 | 312 | 321 | 325 | 355 | 415 | 460 | 510 | 700 | 975 | 1115 | 1250 | 1380 |
W | mm | 120 | 140 | 160 | 160 | 200 | 200 | 240 | 240 | 280 | 320 | 360 | 560 | 600 | 700 | 800 | 900 |
重量 | kg | 5 | 6.5 | 7 | 13.5 | 16 | 32 | 45 | 60 | 80 | 107 | 134 | 268 | 449 | 663 | 750 | 1170 |
J41H不銹鋼法蘭截止閥2.5MPa主要連接尺寸及重量
尺寸 | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
L | mm | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 650 | 750 | 850 | 950 |
H | mm | 200 | 243 | 253 | 280 | 312 | 321 | 325 | 355 | 415 | 460 | 510 | 700 | 975 | 1115 | 1250 | 1380 |
W | mm | 120 | 140 | 160 | 160 | 200 | 200 | 240 | 240 | 280 | 320 | 360 | 560 | 600 | 700 | 800 | 900 |
重量 | kg | 5 | 6.5 | 7 | 13.5 | 16 | 32 | 45 | 60 | 80 | 107 | 134 | 268 | 449 | 663 | 750 | 1170 |
J41H不銹鋼法蘭截止閥4.0MPa主要連接尺寸及重量
尺寸 | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
L | mm | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 650 | 750 | 850 | 950 |
H | mm | 200 | 243 | 253 | 280 | 312 | 321 | 325 | 355 | 415 | 460 | 510 | 700 | 975 | 1115 | 1250 | 1380 |
W | mm | 120 | 140 | 160 | 160 | 200 | 200 | 240 | 240 | 280 | 320 | 360 | 560 | 600 | 700 | 800 | 900 |
重量 | kg | 5 | 6.5 | 7 | 13.5 | 16 | 32 | 45 | 60 | 80 | 107 | 134 | 268 | 491 | 705 | 850 | 1234 |
J41H不銹鋼法蘭截止閥6.4MPa主要連接尺寸及重量
尺寸 | DN | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 125 | 150 |
L | mm | 170 | 190 | 210 | 230 | 260 | 300 | 340 | 380 | 430 | 550 |
H | mm | 195 | 228 | 250 | 325 | 360 | 410 | 450 | 485 | 537 | 646 |
W | mm | 140 | 160 | 180 | 200 | 240 | 280 | 320 | 360 | 400 | 450 |
重量 | kg | 10 | 13 | 15 | 19 | 25 | 35 | 48 | 56 | 125 | 157 |
J41H不銹鋼法蘭截止閥10.0MPa主要連接尺寸及重量
尺寸 | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
L | mm | 170 | 190 | 210 | 230 | 260 | 300 | 340 | 380 | 430 | 500 | 550 | 650 | 775 | 900 |
H | mm | 195 | 228 | 250 | 325 | 360 | 410 | 450 | 485 | 537 | 840 | 925 | 1015 | 1200 | |
W | mm | 100 | 100 | 120 | 160 | 160 | 180 | 200 | 200 | 240 | - | - | - | - | - |
重量 | kg | 10 | 12 | 17 | 25 | 30 | 40 | 68 | 92 | 107 | - | 310 | 590 | 850 | 1040 |
J41H不銹鋼法蘭截止閥16.0MPa主要連接尺寸及重量
尺寸 | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
L | mm | 170 | 190 | 210 | 230 | 260 | 300 | 340 | 380 | 430 | 500 | 550 | 650 |
H | mm | 148 | 156 | 175 | 200 | 231 | 262 | 470 | 500 | 557 | 613 | 671 | 765 |
W | mm | 100 | 100 | 120 | 140 | 160 | 180 | 360 | 400 | 450 | 450 | 500 | 500 |
重量 | kg | 4.64 | 7.42 | 10.07 | 12.3 | 15.2 | 29.71 | 65 | 83 | 125 | 175 | 249 | 375 |
