KF700-VA-A4-10,KF700-VA-A4-15,KF700-VA-A4-20,KF700-VA-A4-25,KF700-VA-A4-32,KF700-VA-A4-40,螺紋式電磁流量傳感器

點擊圖片查看原圖

型號：	KF700-VA-A4-10,KF700-VA-A4-15,KF700-VA-A4-20,KF700-VA-A4-25,KF700-VA-A4-32,KF700-VA-A4-40,螺紋式電磁流量傳感器
PDF下載：	如需產品詳細說明請與銷售客服聯系
瀏覽次數：	1953

公司基本資料信息

聯系人銷售員(女士)
電話13861877712
地區江蘇-無錫市
地址無錫市會北路28-135

詳細說明

KF700-VA-A1-10,KF700-VA-A1-15,KF700-VA-A1-20,KF700-VA-A1-25,KF700-VA-A1-32,KF700-VA-A1-40,螺紋式電磁流量傳感器
KF700-VA-A1-50,KF700-VA-A1-65,KF700-VA-A1-80,KF700-VA-A1-100,KF700-VA-A1-125,KF700-VA-A1-150,螺紋式電磁流量傳感器
KF700-VA-A2-10,KF700-VA-A2-15,KF700-VA-A2-20,KF700-VA-A2-25,KF700-VA-A2-32,KF700-VA-A2-40,螺紋式電磁流量傳感器
KF700-VA-A2-50,KF700-VA-A2-65,KF700-VA-A2-80,KF700-VA-A2-100,KF700-VA-A2-125,KF700-VA-A2-150,螺紋式電磁流量傳感器
KF700-VA-A4-10,KF700-VA-A4-15,KF700-VA-A4-20,KF700-VA-A4-25,KF700-VA-A4-32,KF700-VA-A4-40,螺紋式電磁流量傳感器
KF700-VA-A4-50,KF700-VA-A4-65,KF700-VA-A4-80,KF700-VA-A4-100,KF700-VA-A4-125,KF700-VA-A4-150,螺紋式電磁流量傳感器
KF700-VA-B3-10,KF700-VA-B3-15,KF700-VA-B3-20,KF700-VA-B3-25,KF700-VA-B3-32,KF700-VA-B3-40,螺紋式電磁流量傳感器
KF700-VA-B3-50,KF700-VA-B3-65,KF700-VA-B3-80,KF700-VA-B3-100,KF700-VA-B3-125,KF700-VA-B3-150,螺紋式電磁流量傳感器

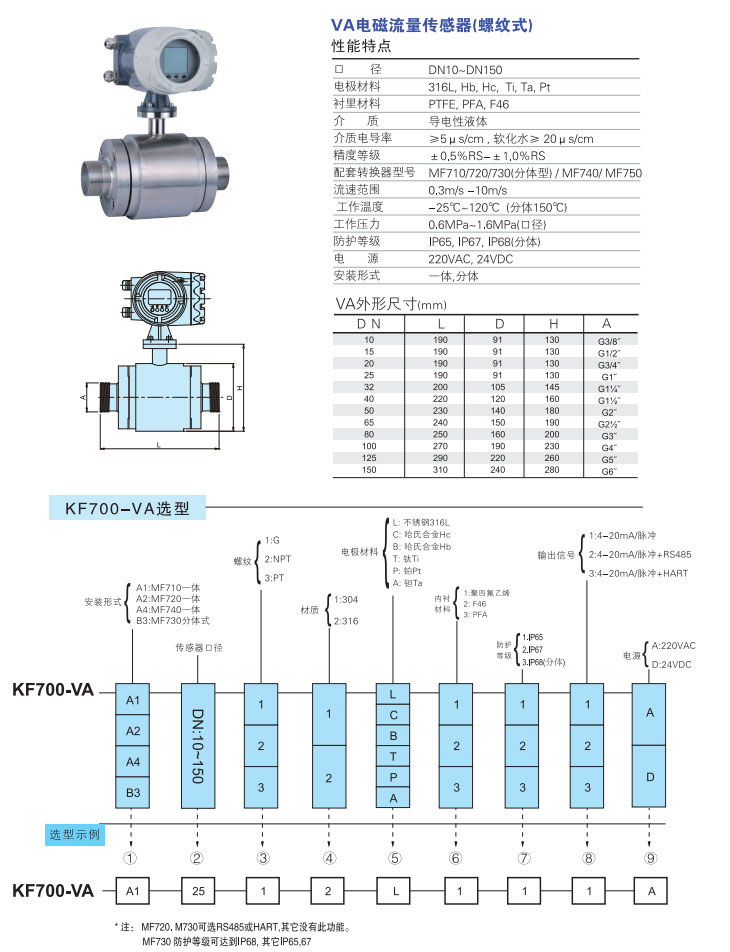

D N	L	D	H	A
10	190	91	130	G3/8
15	190	91	130	G1/2
20	190	91	130	G3/4
25	190	91	130	G1
32	200	105	145	G1¼
40	220	120	160	G1½
50	230	140	180	G2
65	240	150	190	G2½
80	250	160	200	G3
100	270	190	230	G4
125	290	220	260	G5
150	310	240	280	G6

徑	最小流 m3/h	常用滿量程流量選擇（m3/h）
10	0.08	0.16, 0.2, 0.25, 0.3, 0.4,0.5,0.6,0.8,1.0,1.2,1.6,2.0,2.5
15	0.2	0.4,0.5,0.6,0.8,1.0,1.2,1.6,2.0,2.5,3.0,4.0,5.0,6.0
20	0.3	0.6,0.8,1.0,1.2,1.6,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0
25	0.5	1.0,1.2,1.6,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0,12.0,14.0,16.0
32	0.8	1.6,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0,12.16,20,25
40	1.2	2.5, 3.0, 4.0, 5.0, 6.0, 8.0,10.0,12,16,20,25,30,40
50	2	4.0, 5.0, 6.0, 8.0, 10, 12,16,20,25,30,40,50,60,70
65	3.5	6.0,8.0,10,12,16,20,25,30,40,50,60,80,100,120
80	5	10,12,16,20,25,30,40,50,60,80,100,120,160
100	8	16,20,25,30,40,50,60,80,100,120,160,200,250
125	12	25,30,40,50,60,80,100,120,160,200,250,300,400
150	18	40,50,60,80,100,120,160,200,250,300,400,500,600
200	30	60,80,100,120,160,200,250,300,400,500,600,800,1000
250	50	100, 120, 160, 200, 250, 300, 400, 500, 600, 800, 1000, 1200, 1600
300	70	160, 200, 250, 300, 400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500
350	100	200, 250, 300, 400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500, 3000
400	120	250, 300, 400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000
450	160	300, 400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000
500	200	400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000
600	300	600, 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000, 10000
700	400	800, 1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000, 10000, 12000
800	500	1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000, 10000, 12000, 16000
900	650	1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000, 8000, 10000, 12000, 16000, 18000
1000	800	1600, 2000, 2500, 3000, 4000, 5000, 6000, 10000, 12000, 16000, 20000
1200	1200	2500, 3000, 4000, 5000, 6000, 8000, 10000, 12000, 16000, 20000, 25000, 30000
1400	1500	3000, 4000, 5000, 6000, 8000, 10000, 12000, 16000, 20000, 25000, 30000, 40000
1600	2000	4000, 5000, 6000, 8000, 10000,1 2000, 16000, 20000,2 5000, 30000, 40000,5 0000, 60000
1800	2500	5000, 6000, 8000, 10000, 12000, 16000, 20000, 25000, 30000, 40000, 50000, 60000
2000	3000	6000, 8000, 10000, 12000, 16000, 20000, 25000, 30000, 40000, 50000, 60000, 80000, 100000
