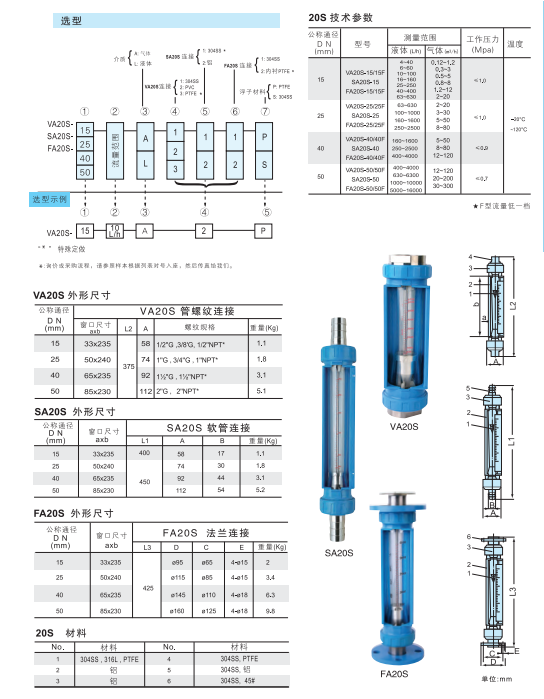

VA20S-15,VA20S-15F,VA20S-25,VA20S-25F,VA20S-40,VA20S-40F,VA20S螺紋連接玻璃轉子

No.

材料

No.

材料

1

304SS , 316L , PTFE

4

304SS, PTFE

2

鋁

5

304SS, 鋁

3

鋁

6

304SS, 45#

公稱通徑
DN(mm)

型號

測量范圍

工作壓力
(Mpa)

溫度

液體(L/h)

氣體(m3/h)

15

VA20S-15/15F
SA20S-15
FA20S-15/15F

4~40
6~60
10~100
16~160
25~250
40~400
63~630

0.12~1.2
0.3~3
0.5~5
0.8~8
1.2~12
2~20

≤1.0

（-20°C
~120°C）

25

VA20S-25/25F
SA20S-25
FA20S-25/25F

63~630
100~1000
160~1600
250~2500

2~20
3~30
5~50
8~80

≤1.0

40

VA20S-40/40F
SA20S-40
FA20S-40/40F

160~1600
250~2500
400~4000

5~50
8~80
12~120

≤0.9

50

VA20S-50/50F
SA20S-50
FA20S-50/50F

400~4000
630~6300
1000~10000
5000~16000

12~120
20~200
30~300

≤0.7
