WS90202-1A1,WS90202，電位計全隔離位移信號隔離器變送器.

WS90202電位計信號隔離器，電位計隔離轉換模塊，內含傳感器激勵源輸入、輸出、電源三端口隔離，DINT型導軌卡裝方式

電位器變送器隔離器輸入范圍：0-500Ω、 0-1KΩ、0-2KΩ、0-10KΩ、0-30KΩ、0-60KΩ、0-100KΩ等用戶特定規格

電位計變送器隔離器輸出范圍：0-20mA、4-20mA、0-5V、0-10V、1-5V等用戶需要的標準信號

電位計信號隔離器工作電源：DC24V，高精度：0.2%

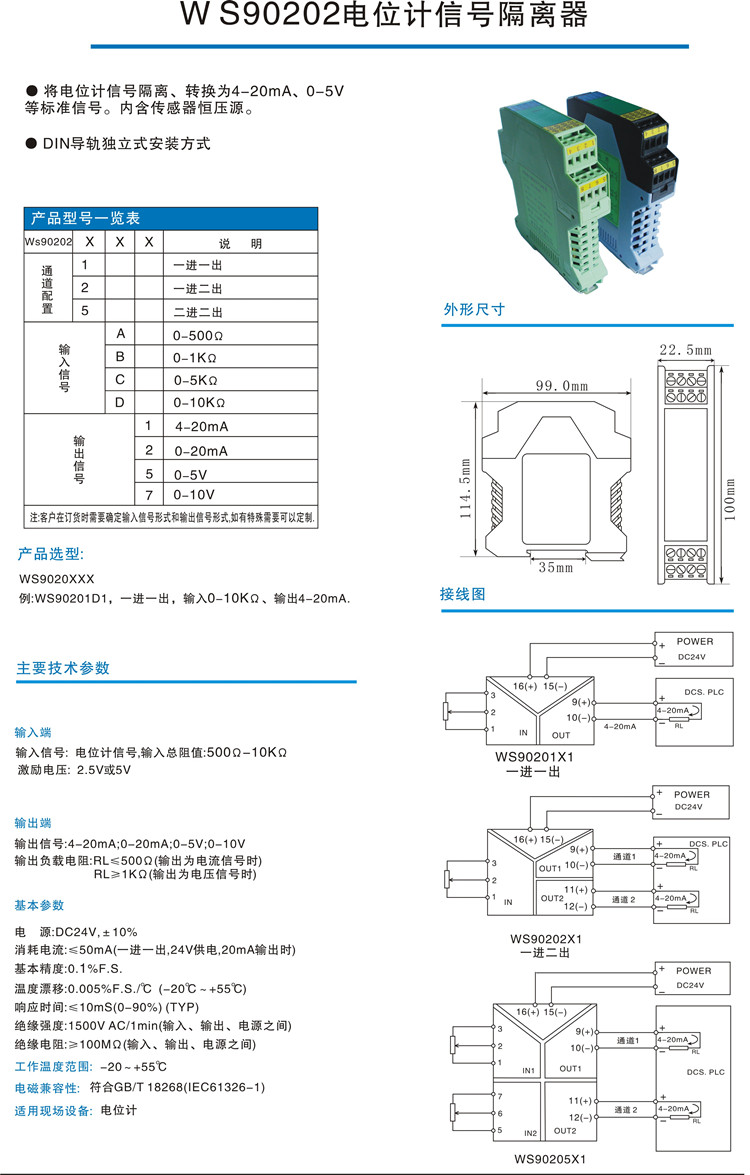

WS90202電位計變送器 電位計信號隔離器技術參數詳細介紹

產品型號：

WS90202-1A1,WS90202-1A2,WS90202-1A5,WS90202-1A7,
WS90202-1B1,WS90202-1B2,WS90202-1B5,WS90202-1B7,
WS90202-1C1,WS90202-1C2,WS90202-1C5,WS90202-1C7,
WS90202-1D1,WS90202-1D2,WS90202-1D5,WS90202-1D7,
WS90202-2A1,WS90202-2A2,WS90202-2A5,WS90202-2A7,
WS90202-2B1,WS90202-2B2,WS90202-2B5,WS90202-2B7,
WS90202-2C1,WS90202-2C2,WS90202-2C5,WS90202-2C7,
WS90202-2D1,WS90202-2D2,WS90202-2D5,WS90202-2D7,
WS90202-5A1,WS90202-5A2,WS90202-5A5,WS90202-5A7,
WS90202-5B1,WS90202-5B2,WS90202-5B5,WS90202-5B7,
WS90202-5C1,WS90202-5C2,WS90202-5C5,WS90202-5C7,
WS90202-5D1,WS90202-5D2,WS90202-5D5,WS90202-5D7,
