WRKKG1-31B10,WRKKG1-42B11,,WRRKG2-43B52,防內漏套管式熱電偶

 WRKKG1-31B10,WRKKG1-42B11,,WRRKG2-43B52,防內漏套管式熱電偶

用途及特點
適用于煙氣溫度測量，當保護管磨損穿孔仍然防止有毒有害氣體泄漏。
技術參數表

熱電偶	測溫元件	外保護管	工作溫度	使用溫度
K型 S型 R型	單支	耐磨套管	0～1100℃	<2.5MPa

選型表

WR	W:溫度傳感器 R:熱電偶
	代號	感溫元件材料
	K	鎳鉻一鎳硅，K分度號
	S	S分度號|鉑銠10-鉑
	R	B分度號|鉑銠10-鉑
		代號	結構形式
		KG	防內漏專用代號
			代號	偶絲對數
			1	單支
			2	雙支
				代號	接線盒形式
				3	防水式接線盒（防護等級IP65）
				4	防爆式接線盒（防爆等級ExdIIBT4或dIICT6）
					代號	測量端形式
					1	絕緣式
					2	接地式
					3	絕緣分離式（適用雙支）
						代號	安裝固定裝置
						B	阻漏式
							代號	安裝固定形式
							1	無固定過程連接
							2	固定螺紋連接
							3	活動法蘭
							4	固定法蘭
							5	整體錐孔錐形溫度套管
								代號	保護管直徑
								0	Φ16外保護管
								1	Φ20外保護管
								2	特殊外徑尺寸溫度套管
WR	K	KG	2	3	1	B	2	0	WRKKG2-31B20

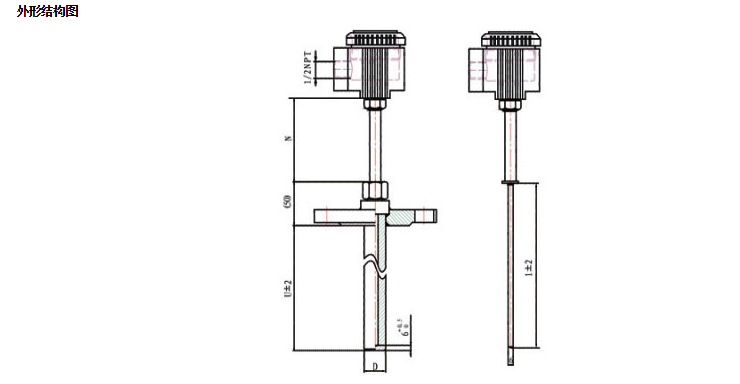

外形結構圖
