SWP-MD806-01-03-N,SWP-MD806-01-08-N,SWP-MD806-01-12-N,智能巡檢控制儀
SWP-MD806-81-03-N,SWP-MD806-81-08-N,SWP-MD806-81-12-N,SWP-MD806-81-23-N,
SWP-MD806-82-03-N,SWP-MD806-82-08-N,SWP-MD806-82-12-N,SWP-MD806-82-23-N
SWP-MD807-01-03-HL,SWP-MD807-01-08-HL,SWP-MD807-01-12-HL,SWP-MD807-01-23-HL,
SWP-MD807-02-03-HL,SWP-MD807-02-08-HL,SWP-MD807-02-12-HL,SWP-MD807-02-23-HL,
SWP-MD807-81-03-HL,SWP-MD807-81-08-HL,SWP-MD807-81-12-HL,SWP-MD807-81-23-HL,
SWP-MD807-82-03-HL,SWP-MD807-82-08-HL,SWP-MD807-82-12-HL,SWP-MD807-82-23-HL,
SWP-MD807-21-08-HL-K-W,SWP-MD808-01-03-HL,SWP-MD808-01-08-HL,SWP-MD808-01-12-HL,
SWP-MD808-01-23-HL,SWP-MD808-02-03-HL,SWP-MD808-02-08-HL,SWP-MD808-02-12-HL,
SWP-MD808-02-23-HL,SWP-MD808-81-03-HL,SWP-MD808-81-08-HL,SWP-MD808-81-12-HL,
SWP-MD808-81-23-HL,SWP-MD808-82-03-HL,SWP-MD808-82-08-HL,SWP-MD808-82-12-HL,
SWP-MD808-82-23-HL,SWP-MD809-01-03-N,SWP-MD809-01-08-N,SWP-MD809-01-12-N,
SWP-MD809-01-23-N,SWP-MD809-02-03-N,SWP-MD809-02-08-N,SWP-MD809-02-12-N,
SWP-MD809-02-23-N,SWP-MD809-81-03-N,SWP-MD809-81-08-N,SWP-MD809-81-12-N,
SWP-MD809-81-23-N,SWP-MD809-82-03-N,SWP-MD809-82-08-N,SWP-MD809-82-12-N,
SWP-MD809-82-23-N,SWP-MD814-01-03-HL,SWP-MD814-01-08-HL,SWP-MD814-01-12-HL,
SWP-MD814-01-23-HL,SWP-MD814-02-03-HL,SWP-MD814-02-08-HL,SWP-MD814-02-12-HL,
SWP-MD814-02-23-HL,SWP-MD814-81-03-HL,SWP-MD814-81-08-HL,SWP-MD814-81-12-HL,
SWP-MD814-81-23-HL,SWP-MD814-82-03-HL,SWP-MD814-82-08-HL,SWP-MD814-82-12-HL,
SWP-MD814-82-23-HL,SWP-MS806-01-03-N,SWP-MS806-01-08-N,SWP-MS806-01-12-N,
SWP-MS806-01-23-N,SWP-MS806-02-03-N,SWP-MS806-02-08-N,SWP-MS806-02-12-N,
SWP-MS806-02-23-N,SWP-MS806-81-03-N,SWP-MS806-81-08-N,SWP-MS806-81-12-N,
SWP-MS806-81-23-N,SWP-MS806-82-03-N,SWP-MS806-82-08-N,SWP-MS806-82-12-N,
SWP-MS806-82-23-N,SWP-MS807-01-03-HL,SWP-MS807-01-08-HL,SWP-MS807-01-12-HL,
SWP-MS807-01-23-HL,SWP-MS807-02-03-HL,SWP-MS807-02-08-HL,SWP-MS807-02-12-HL,
SWP-MS807-02-23-HL,SWP-MS807-81-03-HL,SWP-MS807-81-08-HL,SWP-MS807-81-12-HL,
SWP-MS807-81-23-HL,SWP-MS807-82-03-HL,SWP-MS807-82-08-HL,SWP-MS807-82-12-HL,
SWP-MS807-82-23-HL,SWP-MS808-01-03-HL,SWP-MS808-01-08-HL,SWP-MS808-01-12-HL,
SWP-MS808-01-23-HL,SWP-MS808-02-03-HL,SWP-MS808-02-08-HL,SWP-MS808-02-12-HL,
SWP-MS808-02-23-HL,SWP-MS808-81-03-HL,SWP-MS808-81-08-HL,SWP-MS808-81-12-HL,
SWP-MS808-81-23-HL,SWP-MS808-82-03-HL,SWP-MS808-822-08-HL,SWP-MS808-822-12-HL,
SWP-MS808-822-23-HL,SWP-MS809-01-03-N,SWP-MS809-01-08-N,SWP-MS809-01-12-N,
SWP-MS809-01-23-N,SWP-MS809-02-03-N,SWP-MS809-02-08-N,SWP-MS809-02-12-N,
SWP-MS809-02-23-N,SWP-MS809-81-03-N,SWP-MS809-81-08-N,SWP-MS809-81-12-N,
SWP-MS809-81-23-N,SWP-MS809-82-03-N,SWP-MS809-82-08-N,SWP-MS809-82-12-N,
SWP-MS809-82-23-N,SWP-MS814-01-03-HL,SWP-MS814-01-08-HL,SWP-MS814-01-12-HL,
SWP-MS814-01-23-HL,SWP-MS814-02-03-HL,SWP-MS814-02-08-HL,SWP-MS814-02-12-HL,
SWP-MS814-02-23-HL,SWP-MS814-81-03-HL,SWP-MS814-81-08-HL,SWP-MS814-81-12-HL,
SWP-MS814-81-23-HL,SWP-MS814-82-03-HL,SWP-MS814-82-08-HL,SWP-MS814-82-12-HL,
SWP-MS814-82-23-HL,SWP-MS814-81-10-LH-T,SWP-MD807-21-08-HL-K-W,SWP-MS814-81-10-LH-T
SWP-LED系列多路巡檢控制儀用于工業控制系統多測量點的巡回檢測、顯示和報警。
一、主要特點
可選擇各輸入通道統一報警控制輸出(或統一變送輸出)或各輸入通道分別報警控制輸出(或分別變送輸出)。各通道統一報警控制輸出并且可選擇報警帶記憶（任一通道報警未解除將一直報警直至所有通道均無報警）或報警無記憶（巡回至有報警通道時輸出報警，巡回至無報警的通道時則不報警）。

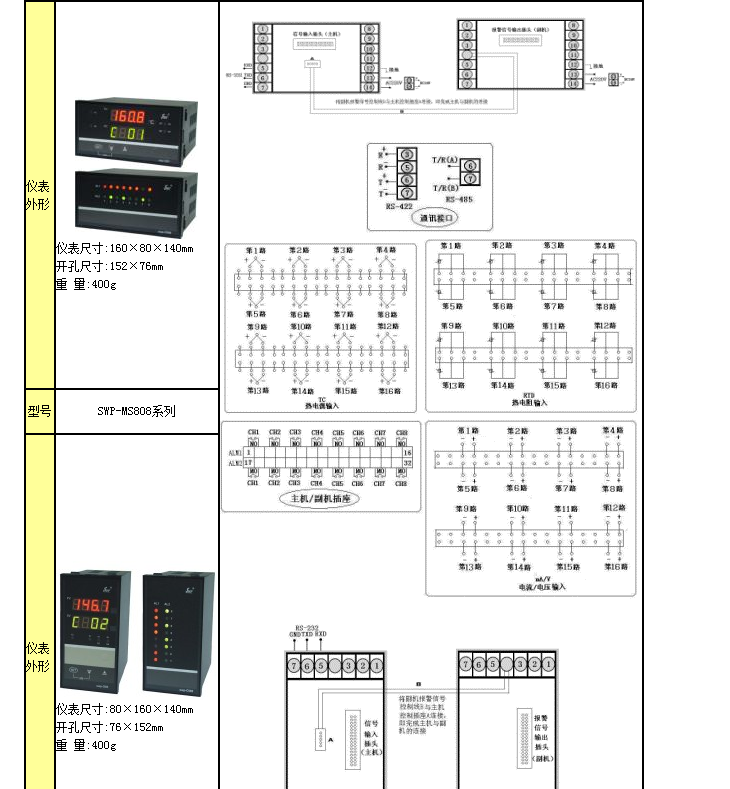

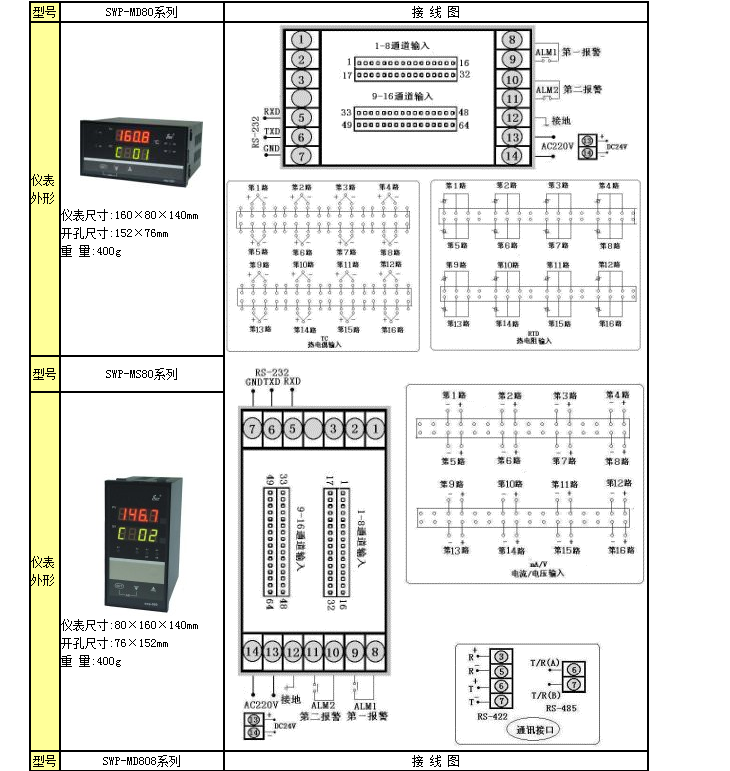

二、儀表外形及接線圖（以下為基本配線方式，特殊訂貨請參見隨機接線圖）
SWP-MD806-01-03-N,SWP-MD806-01-08-N,SWP-MD806-01-12-N,SWP-MD806-01-23-N,
SWP-MD806-02-03-N,SWP-MD806-02-08-N,SWP-MD806-02-12-N,SWP-MD806-02-23-N,SWP-MD806-81-03-N,SWP-MD806-81-08-N,SWP-MD806-81-12-N,SWP-MD806-81-23-N,
SWP-MD806-82-03-N,SWP-MD806-82-08-N,SWP-MD806-82-12-N,SWP-MD806-82-23-N
SWP-MD807-01-03-HL,SWP-MD807-01-08-HL,SWP-MD807-01-12-HL,SWP-MD807-01-23-HL,
SWP-MD807-02-03-HL,SWP-MD807-02-08-HL,SWP-MD807-02-12-HL,SWP-MD807-02-23-HL,
SWP-MD807-81-03-HL,SWP-MD807-81-08-HL,SWP-MD807-81-12-HL,SWP-MD807-81-23-HL,
SWP-MD807-82-03-HL,SWP-MD807-82-08-HL,SWP-MD807-82-12-HL,SWP-MD807-82-23-HL,
SWP-MD807-21-08-HL-K-W,SWP-MD808-01-03-HL,SWP-MD808-01-08-HL,SWP-MD808-01-12-HL,
SWP-MD808-01-23-HL,SWP-MD808-02-03-HL,SWP-MD808-02-08-HL,SWP-MD808-02-12-HL,
SWP-MD808-02-23-HL,SWP-MD808-81-03-HL,SWP-MD808-81-08-HL,SWP-MD808-81-12-HL,
SWP-MD808-81-23-HL,SWP-MD808-82-03-HL,SWP-MD808-82-08-HL,SWP-MD808-82-12-HL,
SWP-MD808-82-23-HL,SWP-MD809-01-03-N,SWP-MD809-01-08-N,SWP-MD809-01-12-N,
SWP-MD809-01-23-N,SWP-MD809-02-03-N,SWP-MD809-02-08-N,SWP-MD809-02-12-N,
SWP-MD809-02-23-N,SWP-MD809-81-03-N,SWP-MD809-81-08-N,SWP-MD809-81-12-N,
SWP-MD809-81-23-N,SWP-MD809-82-03-N,SWP-MD809-82-08-N,SWP-MD809-82-12-N,
SWP-MD809-82-23-N,SWP-MD814-01-03-HL,SWP-MD814-01-08-HL,SWP-MD814-01-12-HL,
SWP-MD814-01-23-HL,SWP-MD814-02-03-HL,SWP-MD814-02-08-HL,SWP-MD814-02-12-HL,
SWP-MD814-02-23-HL,SWP-MD814-81-03-HL,SWP-MD814-81-08-HL,SWP-MD814-81-12-HL,
SWP-MD814-81-23-HL,SWP-MD814-82-03-HL,SWP-MD814-82-08-HL,SWP-MD814-82-12-HL,
SWP-MD814-82-23-HL,SWP-MS806-01-03-N,SWP-MS806-01-08-N,SWP-MS806-01-12-N,
SWP-MS806-01-23-N,SWP-MS806-02-03-N,SWP-MS806-02-08-N,SWP-MS806-02-12-N,
SWP-MS806-02-23-N,SWP-MS806-81-03-N,SWP-MS806-81-08-N,SWP-MS806-81-12-N,
SWP-MS806-81-23-N,SWP-MS806-82-03-N,SWP-MS806-82-08-N,SWP-MS806-82-12-N,
SWP-MS806-82-23-N,SWP-MS807-01-03-HL,SWP-MS807-01-08-HL,SWP-MS807-01-12-HL,
SWP-MS807-01-23-HL,SWP-MS807-02-03-HL,SWP-MS807-02-08-HL,SWP-MS807-02-12-HL,
SWP-MS807-02-23-HL,SWP-MS807-81-03-HL,SWP-MS807-81-08-HL,SWP-MS807-81-12-HL,
SWP-MS807-81-23-HL,SWP-MS807-82-03-HL,SWP-MS807-82-08-HL,SWP-MS807-82-12-HL,
SWP-MS807-82-23-HL,SWP-MS808-01-03-HL,SWP-MS808-01-08-HL,SWP-MS808-01-12-HL,
SWP-MS808-01-23-HL,SWP-MS808-02-03-HL,SWP-MS808-02-08-HL,SWP-MS808-02-12-HL,
SWP-MS808-02-23-HL,SWP-MS808-81-03-HL,SWP-MS808-81-08-HL,SWP-MS808-81-12-HL,
SWP-MS808-81-23-HL,SWP-MS808-82-03-HL,SWP-MS808-822-08-HL,SWP-MS808-822-12-HL,
SWP-MS808-822-23-HL,SWP-MS809-01-03-N,SWP-MS809-01-08-N,SWP-MS809-01-12-N,
SWP-MS809-01-23-N,SWP-MS809-02-03-N,SWP-MS809-02-08-N,SWP-MS809-02-12-N,
SWP-MS809-02-23-N,SWP-MS809-81-03-N,SWP-MS809-81-08-N,SWP-MS809-81-12-N,
SWP-MS809-81-23-N,SWP-MS809-82-03-N,SWP-MS809-82-08-N,SWP-MS809-82-12-N,
SWP-MS809-82-23-N,SWP-MS814-01-03-HL,SWP-MS814-01-08-HL,SWP-MS814-01-12-HL,
SWP-MS814-01-23-HL,SWP-MS814-02-03-HL,SWP-MS814-02-08-HL,SWP-MS814-02-12-HL,
SWP-MS814-02-23-HL,SWP-MS814-81-03-HL,SWP-MS814-81-08-HL,SWP-MS814-81-12-HL,
SWP-MS814-81-23-HL,SWP-MS814-82-03-HL,SWP-MS814-82-08-HL,SWP-MS814-82-12-HL,
SWP-MS814-82-23-HL,SWP-MS814-81-10-LH-T,SWP-MD807-21-08-HL-K-W,SWP-MS814-81-10-LH-T
