SWP-TC-C401-01,SWP-TC-C803-06,SWP-TC-S903-43,智能計數表

SWP系列智能計數表適用各種計數脈沖、長度測量和控制。

一、主要特點
1、高亮度LED數字顯示測量值
2、支持多機網絡通訊，通訊協議可任意自由設定
3、獨特的全開放式用戶自設定界面：輸出方式設定、報警方式設定
4、設定參數斷電永久保留及參數密碼鎖定
5、設定計數目標值
6、交直流開關電源供電方式

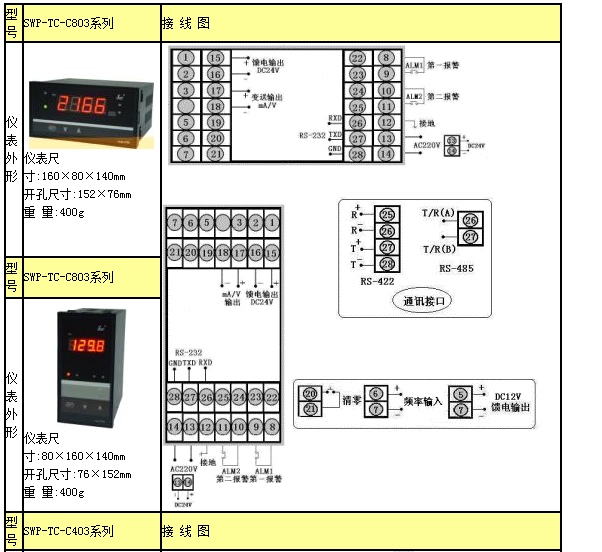

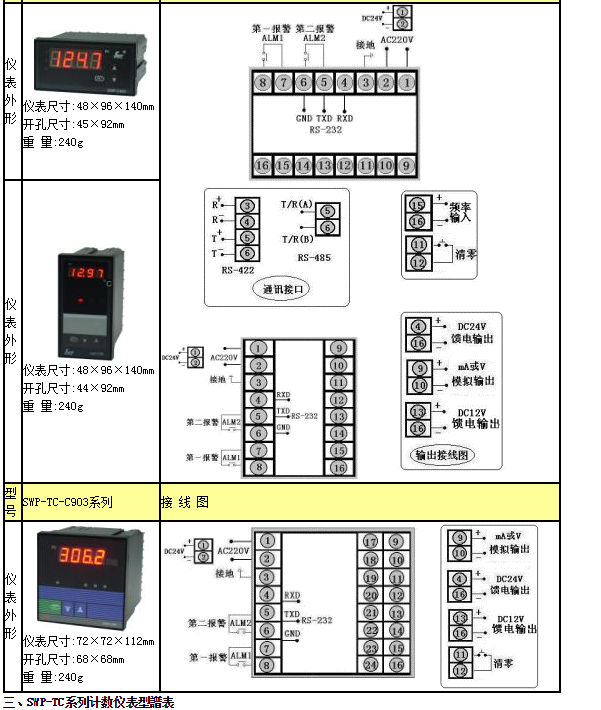

二、SWP-TC系列計數儀表接線圖

SWP-TC-C401-00,SWP-TC-C401-01,SWP-TC-C401-02,SWP-TC-C401-03
SWP-TC-C401-04,SWP-TC-C401-05,SWP-TC-C401-06,SWP-TC-C401-07
SWP-TC-C401-20,SWP-TC-C401-21,SWP-TC-C401-22,SWP-TC-C401-23
SWP-TC-C401-24,SWP-TC-C401-25,SWP-TC-C401-26,SWP-TC-C401-27
SWP-TC-C401-40,SWP-TC-C401-41,SWP-TC-C401-42,SWP-TC-C401-43
SWP-TC-C401-44,SWP-TC-C401-45,SWP-TC-C401-46,SWP-TC-C401-47
SWP-TC-C401-80,SWP-TC-C401-81,SWP-TC-C401-82,SWP-TC-C401-83
SWP-TC-C401-84,SWP-TC-C401-85,SWP-TC-C401-86,SWP-TC-C401-87
SWP-TC-C403-00,SWP-TC-C403-01,SWP-TC-C403-02,SWP-TC-C403-03
SWP-TC-C403-04,SWP-TC-C403-05,SWP-TC-C403-06,SWP-TC-C403-07
SWP-TC-C403-20,SWP-TC-C403-21,SWP-TC-C403-22,SWP-TC-C403-23
SWP-TC-C403-24,SWP-TC-C403-25,SWP-TC-C403-26,SWP-TC-C403-27
SWP-TC-C403-40,SWP-TC-C403-41,SWP-TC-C403-42,SWP-TC-C403-43
SWP-TC-C403-44,SWP-TC-C403-45,SWP-TC-C403-46,SWP-TC-C403-47
SWP-TC-C403-80,SWP-TC-C403-81,SWP-TC-C403-82,SWP-TC-C403-83
SWP-TC-C403-84,SWP-TC-C403-85,SWP-TC-C403-86,SWP-TC-C403-87
SWP-TC-C401-00,SWP-TC-C801-01,SWP-TC-C801-02,SWP-TC-C801-03
SWP-TC-C801-04,SWP-TC-C801-05,SWP-TC-C801-06,SWP-TC-C801-07
SWP-TC-C801-20,SWP-TC-C801-21,SWP-TC-C801-22,SWP-TC-C801-23
SWP-TC-C801-24,SWP-TC-C801-25,SWP-TC-C801-26,SWP-TC-C801-27
SWP-TC-C801-40,SWP-TC-C801-41,SWP-TC-C801-42,SWP-TC-C801-43
SWP-TC-C801-44,SWP-TC-C801-45,SWP-TC-C801-46,SWP-TC-C801-47
SWP-TC-C801-80,SWP-TC-C801-81,SWP-TC-C801-82,SWP-TC-C801-83
SWP-TC-C801-84,SWP-TC-C801-85,SWP-TC-C801-86,SWP-TC-C801-87
SWP-TC-C803-00,SWP-TC-C803-01,SWP-TC-C803-02,SWP-TC-C803-03
SWP-TC-C803-04,SWP-TC-C803-05,SWP-TC-C803-06,SWP-TC-C803-07
SWP-TC-C803-20,SWP-TC-C803-21,SWP-TC-C803-22,SWP-TC-C803-23
SWP-TC-C803-24,SWP-TC-C803-25,SWP-TC-C803-26,SWP-TC-C803-27
SWP-TC-C803-40,SWP-TC-C803-41,SWP-TC-C803-42,SWP-TC-C803-43
SWP-TC-C803-44,SWP-TC-C803-45,SWP-TC-C803-46,SWP-TC-C803-47
SWP-TC-C803-80,SWP-TC-C803-81,SWP-TC-C803-82,SWP-TC-C803-83
SWP-TC-C803-84,SWP-TC-C803-85,SWP-TC-C803-86,SWP-TC-C803-87
SWP-TC-C401-00,SWP-TC-C901-01,SWP-TC-C901-02,SWP-TC-C901-03
SWP-TC-C901-04,SWP-TC-C901-05,SWP-TC-C901-06,SWP-TC-C901-07
SWP-TC-C901-20,SWP-TC-C901-21,SWP-TC-C901-22,SWP-TC-C901-23
SWP-TC-C901-24,SWP-TC-C901-25,SWP-TC-C901-26,SWP-TC-C901-27
SWP-TC-C901-40,SWP-TC-C901-41,SWP-TC-C901-42,SWP-TC-C901-43
SWP-TC-C901-44,SWP-TC-C901-45,SWP-TC-C901-46,SWP-TC-C901-47
SWP-TC-C901-80,SWP-TC-C901-81,SWP-TC-C901-82,SWP-TC-C901-83
SWP-TC-C901-84,SWP-TC-C901-85,SWP-TC-C901-86,SWP-TC-C901-87
SWP-TC-C903-00,SWP-TC-C903-01,SWP-TC-C903-02,SWP-TC-C903-03
SWP-TC-C903-04,SWP-TC-C903-05,SWP-TC-C903-06,SWP-TC-C903-07
SWP-TC-C903-20,SWP-TC-C903-21,SWP-TC-C903-22,SWP-TC-C903-23
SWP-TC-C903-24,SWP-TC-C903-25,SWP-TC-C903-26,SWP-TC-C903-27
SWP-TC-C903-40,SWP-TC-C903-41,SWP-TC-C903-42,SWP-TC-C903-43
SWP-TC-C903-44,SWP-TC-C903-45,SWP-TC-C903-46,SWP-TC-C903-47
SWP-TC-C903-80,SWP-TC-C903-81,SWP-TC-C903-82,SWP-TC-C903-83
SWP-TC-C903-84,SWP-TC-C903-85,SWP-TC-C903-86,SWP-TC-C903-87
SWP-TC-S401-00,SWP-TC-S401-01,SWP-TC-S401-02,SWP-TC-S401-03
SWP-TC-S401-04,SWP-TC-S401-05,SWP-TC-S401-06,SWP-TC-S401-07
SWP-TC-S401-20,SWP-TC-S401-21,SWP-TC-S401-22,SWP-TC-S401-23
SWP-TC-S401-24,SWP-TC-S401-25,SWP-TC-S401-26,SWP-TC-S401-27
SWP-TC-S401-40,SWP-TC-S401-41,SWP-TC-S401-42,SWP-TC-S401-43
SWP-TC-S401-44,SWP-TC-S401-45,SWP-TC-S401-46,SWP-TC-S401-47
SWP-TC-S401-80,SWP-TC-S401-81,SWP-TC-S401-82,SWP-TC-S401-83
SWP-TC-S401-84,SWP-TC-S401-85,SWP-TC-S401-86,SWP-TC-S401-87
SWP-TC-S403-00,SWP-TC-S403-01,SWP-TC-S403-02,SWP-TC-S403-03
SWP-TC-S403-04,SWP-TC-S403-05,SWP-TC-S403-06,SWP-TC-S403-07
SWP-TC-S403-20,SWP-TC-S403-21,SWP-TC-S403-22,SWP-TC-S403-23
SWP-TC-S403-24,SWP-TC-S403-25,SWP-TC-S403-26,SWP-TC-S403-27
SWP-TC-S403-40,SWP-TC-S403-41,SWP-TC-S403-42,SWP-TC-S403-43
SWP-TC-S403-44,SWP-TC-S403-45,SWP-TC-S403-46,SWP-TC-S403-47
SWP-TC-S403-80,SWP-TC-S403-81,SWP-TC-S403-82,SWP-TC-S403-83
SWP-TC-S403-84,SWP-TC-S403-85,SWP-TC-S403-86,SWP-TC-S403-87
SWP-TC-S401-00,SWP-TC-S801-01,SWP-TC-S801-02,SWP-TC-S801-03
SWP-TC-S801-04,SWP-TC-S801-05,SWP-TC-S801-06,SWP-TC-S801-07
SWP-TC-S801-20,SWP-TC-S801-21,SWP-TC-S801-22,SWP-TC-S801-23
SWP-TC-S801-24,SWP-TC-S801-25,SWP-TC-S801-26,SWP-TC-S801-27
SWP-TC-S801-40,SWP-TC-S801-41,SWP-TC-S801-42,SWP-TC-S801-43
SWP-TC-S801-44,SWP-TC-S801-45,SWP-TC-S801-46,SWP-TC-S801-47
SWP-TC-S801-80,SWP-TC-S801-81,SWP-TC-S801-82,SWP-TC-S801-83
SWP-TC-S801-84,SWP-TC-S801-85,SWP-TC-S801-86,SWP-TC-S801-87
SWP-TC-S803-00,SWP-TC-S803-01,SWP-TC-S803-02,SWP-TC-S803-03
SWP-TC-S803-04,SWP-TC-S803-05,SWP-TC-S803-06,SWP-TC-S803-07
SWP-TC-S803-20,SWP-TC-S803-21,SWP-TC-S803-22,SWP-TC-S803-23
SWP-TC-S803-24,SWP-TC-S803-25,SWP-TC-S803-26,SWP-TC-S803-27
SWP-TC-S803-40,SWP-TC-S803-41,SWP-TC-S803-42,SWP-TC-S803-43
SWP-TC-S803-44,SWP-TC-S803-45,SWP-TC-S803-46,SWP-TC-S803-47
SWP-TC-S803-80,SWP-TC-S803-81,SWP-TC-S803-82,SWP-TC-S803-83
SWP-TC-S803-84,SWP-TC-S803-85,SWP-TC-S803-86,SWP-TC-S803-87
SWP-TC-S401-00,SWP-TC-S901-01,SWP-TC-S901-02,SWP-TC-S901-03
SWP-TC-S901-04,SWP-TC-S901-05,SWP-TC-S901-06,SWP-TC-S901-07
SWP-TC-S901-20,SWP-TC-S901-21,SWP-TC-S901-22,SWP-TC-S901-23
SWP-TC-S901-24,SWP-TC-S901-25,SWP-TC-S901-26,SWP-TC-S901-27
SWP-TC-S901-40,SWP-TC-S901-41,SWP-TC-S901-42,SWP-TC-S901-43
SWP-TC-S901-44,SWP-TC-S901-45,SWP-TC-S901-46,SWP-TC-S901-47
SWP-TC-S901-80,SWP-TC-S901-81,SWP-TC-S901-82,SWP-TC-S901-83
SWP-TC-S901-84,SWP-TC-S901-85,SWP-TC-S901-86,SWP-TC-S901-87
SWP-TC-S903-00,SWP-TC-S903-01,SWP-TC-S903-02,SWP-TC-S903-03
SWP-TC-S903-04,SWP-TC-S903-05,SWP-TC-S903-06,SWP-TC-S903-07
SWP-TC-S903-20,SWP-TC-S903-21,SWP-TC-S903-22,SWP-TC-S903-23
SWP-TC-S903-24,SWP-TC-S903-25,SWP-TC-S903-26,SWP-TC-S903-27
SWP-TC-S903-40,SWP-TC-S903-41,SWP-TC-S903-42,SWP-TC-S903-43
SWP-TC-S903-44,SWP-TC-S903-45,SWP-TC-S903-46,SWP-TC-S903-47
SWP-TC-S903-80,SWP-TC-S903-81,SWP-TC-S903-82,SWP-TC-S903-83
SWP-TC-S903-84,SWP-TC-S903-85,SWP-TC-S903-86,SWP-TC-S903-87
