SWP-F431-80,SWP-F831-81,SWP-F931-23,SWP-F933-84,三回路數字顯示控制器

  SWP-F系列高精度型三回路數字顯示控制器，可對溫度、壓力、液位、速度等測量信號進行數字量顯示控制，高亮度LED數碼顯示，三路測量同屏顯示，使測量值的顯示更為清晰直觀。
1.全新的結構
測量精度0.2%，采樣周期最短0.25秒。采用國際流行插入式結構易檢修、易升級。采用EMC抗干擾屏蔽設計，完善的軟件功能，使SWP-F系列儀表可靠性更高。采用開放式模塊化硬件結構，大大豐富了儀表功能，使用戶靈活度大大提高。
2.清晰的顯示
高清晰LED數字顯示測量值。高亮度光柱測量值顯示。
3.方便的網絡
支持多機網絡通訊。提供的RS232或RS485通訊接口方便與上位機鏈接。支持MODBUS、SWPBUS協議方便用戶任意選擇。面板提供TTL通訊接口，與本公司其它產品、小型終端液晶顯示器或PC進行通訊鏈接，即可編制各種裝置特有畫面，組成流程圖報表、記錄曲線等網絡監控系統。
4.友好的界面
人機界面友好，人性化操作界面，簡單方便。全可切信號輸入，可編程輸入、輸出技術。多重報警方式自由設定，多種輸出方式選擇。

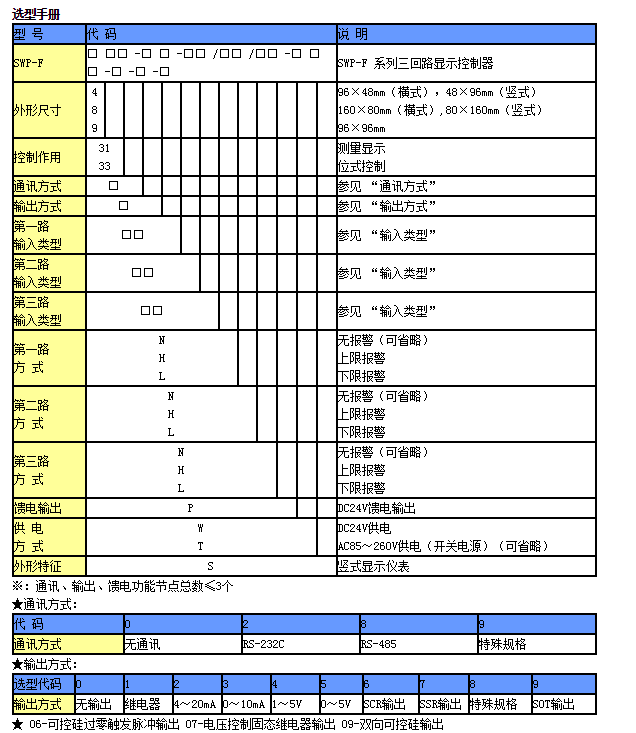

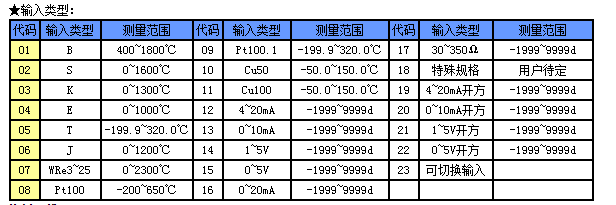

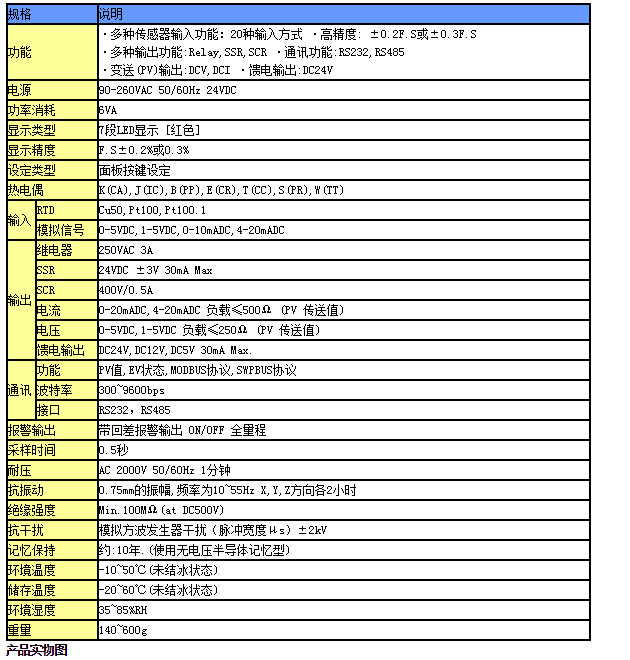

技術參數

SWP-F431-00,SWP-F431-01,SWP-F431-02,SWP-F431-03,SWP-F431-04,SWP-F431-05
SWP-F431-06,SWP-F431-07,SWP-F431-09,SWP-F431-26,SWP-F431-27,SWP-F431-29
SWP-F431-20,SWP-F431-21,SWP-F431-22,SWP-F431-23,SWP-F431-24,SWP-F431-25
SWP-F431-80,SWP-F431-81,SWP-F431-82,SWP-F431-83,SWP-F431-84,SWP-F431-85
SWP-F431-86,SWP-F431-87,SWP-F431-89,SWP-F433-06,SWP-F433-07,SWP-F433-09
SWP-F433-00,SWP-F433-01,SWP-F433-02,SWP-F433-03,SWP-F433-04,SWP-F433-05
SWP-F433-20,SWP-F433-21,SWP-F433-22,SWP-F433-23,SWP-F433-24,SWP-F433-25
SWP-F433-26,SWP-F433-27,SWP-F433-29,SWP-F433-86,SWP-F433-87,SWP-F433-89
SWP-F433-80,SWP-F433-81,SWP-F433-82,SWP-F433-83,SWP-F433-84,SWP-F433-85
SWP-F831-00,SWP-F831-01,SWP-F831-02,SWP-F831-03,SWP-F831-04,SWP-F831-05
SWP-F831-06,SWP-F831-07,SWP-F831-09,SWP-F831-26,SWP-F831-27,SWP-F831-29
SWP-F831-20,SWP-F831-21,SWP-F831-22,SWP-F831-23,SWP-F831-24,SWP-F831-25
SWP-F831-80,SWP-F831-81,SWP-F831-82,SWP-F831-83,SWP-F831-84,SWP-F831-85
SWP-F831-86,SWP-F831-87,SWP-F831-89,SWP-F833-06,SWP-F833-07,SWP-F833-09
SWP-F833-00,SWP-F833-01,SWP-F833-02,SWP-F833-03,SWP-F833-04,SWP-F833-05
SWP-F833-20,SWP-F833-21,SWP-F833-22,SWP-F833-23,SWP-F833-24,SWP-F833-25
SWP-F833-26,SWP-F833-27,SWP-F833-29,SWP-F833-86,SWP-F833-87,SWP-F833-89
SWP-F833-80,SWP-F833-81,SWP-F833-82,SWP-F833-83,SWP-F833-84,SWP-F833-85
SWP-F931-00,SWP-F931-01,SWP-F931-02,SWP-F931-03,SWP-F931-04,SWP-F931-05
SWP-F931-06,SWP-F931-07,SWP-F931-09,SWP-F931-26,SWP-F931-27,SWP-F931-29
SWP-F931-20,SWP-F931-21,SWP-F931-22,SWP-F931-23,SWP-F931-24,SWP-F931-25
SWP-F931-80,SWP-F931-81,SWP-F931-82,SWP-F931-83,SWP-F931-84,SWP-F931-85
SWP-F931-86,SWP-F931-87,SWP-F931-89,SWP-F933-06,SWP-F933-07,SWP-F933-09
SWP-F933-00,SWP-F933-01,SWP-F933-02,SWP-F933-03,SWP-F933-04,SWP-F933-05
SWP-F933-20,SWP-F933-21,SWP-F933-22,SWP-F933-23,SWP-F933-24,SWP-F933-25
SWP-F933-26,SWP-F933-27,SWP-F933-29,SWP-F933-86,SWP-F933-87,SWP-F933-89
SWP-F933-80,SWP-F933-81,SWP-F933-82,SWP-F933-83,SWP-F933-84,SWP-F933-85
