SWP-ASR200, SWP-ASR20001-1,SWP-ASR20001-2,SWP-ASR20001-3無紙記錄儀

1.產品簡介：

SWP-ASR200系列無紙記錄儀采用寬視角、高亮度、10.4英寸、高分辨率、CCFL背光的真彩色TFT液晶作為顯示屏，全新硬件結構設計、更低的功耗、更強的抗干擾能力、更友好的人機界面、可以滿足不同用戶的特殊功能定制要求、靈活便捷。主要應用于紡織、化工、電力、石化、煙草、制藥等行業。

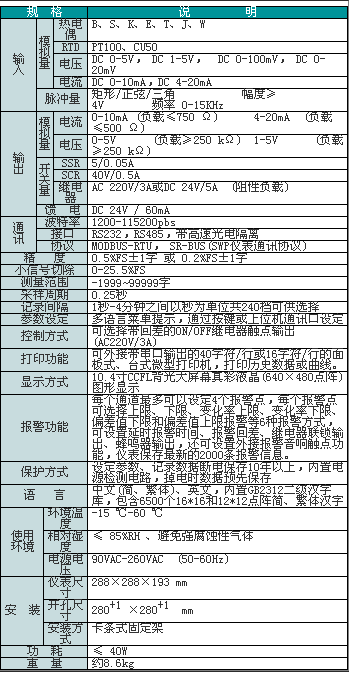

2.產品參數:

技術參數

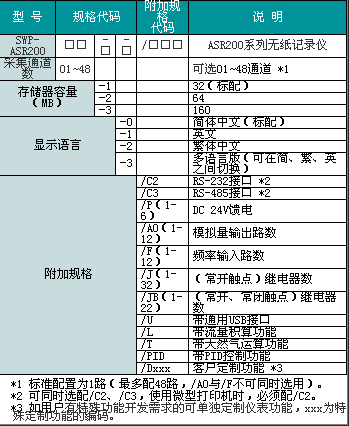

型普表

 SWP-ASR20002-1,SWP-ASR20002-2,SWP-ASR20002-3，SWP-ASR20003-1,SWP-ASR20003-2,SWP-ASR20003-3
SWP-ASR20004-1,SWP-ASR20004-2,SWP-ASR20004-3，SWP-ASR20005-1,SWP-ASR20005-2,SWP-ASR20005-3
SWP-ASR20006-1,SWP-ASR20006-2,SWP-ASR20006-3，SWP-ASR20007-1,SWP-ASR20007-2,SWP-ASR20007-3
SWP-ASR20008-1,SWP-ASR20008-2,SWP-ASR20008-3，SWP-ASR20009-1,SWP-ASR20009-2,SWP-ASR20009-3
SWP-ASR200010-1,SWP-ASR200010-2,SWP-ASR200010-3，SWP-ASR200012-1,SWP-ASR200012-2,SWP-ASR200012-3
SWP-ASR200013-1,SWP-ASR200013-2,SWP-ASR200013-3，SWP-ASR200014-1,SWP-ASR200014-2,SWP-ASR200014-3
SWP-ASR200015-1,SWP-ASR200015-2,SWP-ASR200015-3，SWP-ASR200016-1,SWP-ASR200016-2,SWP-ASR200016-3
SWP-ASR200017-1,SWP-ASR200017-2,SWP-ASR200017-3，SWP-ASR200018-1,SWP-ASR200018-2,SWP-ASR200018-3
SWP-ASR200019-1,SWP-ASR200019-2,SWP-ASR200019-3，SWP-ASR200020-1,SWP-ASR200020-2,SWP-ASR200020-3
SWP-ASR200021-1,SWP-ASR200021-2,SWP-ASR200021-3，SWP-ASR200022-1,SWP-ASR200022-2,SWP-ASR200022-3
SWP-ASR200023-1,SWP-ASR200023-2,SWP-ASR200023-3，SWP-ASR200024-1,SWP-ASR200024-2,SWP-ASR200024-3
SWP-ASR200025-1,SWP-ASR200025-2,SWP-ASR200025-3，SWP-ASR200026-1,SWP-ASR200026-2,SWP-ASR200026-3
SWP-ASR200027-1,SWP-ASR200027-2,SWP-ASR200027-3，SWP-ASR200028-1,SWP-ASR200028-2,SWP-ASR200028-3
SWP-ASR200029-1,SWP-ASR200029-2,SWP-ASR200029-3，SWP-ASR200030-1,SWP-ASR200030-2,SWP-ASR200030-3
SWP-ASR200031-1,SWP-ASR200031-2,SWP-ASR200031-3，SWP-ASR200032-1,SWP-ASR200032-2,SWP-ASR200032-3
SWP-ASR200033-1,SWP-ASR200033-2,SWP-ASR200033-3，SWP-ASR200034-1,SWP-ASR200034-2,SWP-ASR200034-3
SWP-ASR200035-1,SWP-ASR200035-2,SWP-ASR200035-3，SWP-ASR200036-1,SWP-ASR200036-2,SWP-ASR200036-3
SWP-ASR200037-1,SWP-ASR200037-2,SWP-ASR200037-3，SWP-ASR200038-1,SWP-ASR200038-2,SWP-ASR200038-3
SWP-ASR200039-1,SWP-ASR200039-2,SWP-ASR200039-3，SWP-ASR200040-1,SWP-ASR200040-2,SWP-ASR200040-3
SWP-ASR200041-1,SWP-ASR200041-2,SWP-ASR200041-3，SWP-ASR200042-1,SWP-ASR200042-2,SWP-ASR200042-3
SWP-ASR200043-1,SWP-ASR200043-2,SWP-ASR200043-3，SWP-ASR200044-1,SWP-ASR200044-2,SWP-ASR200044-3
SWP-ASR200045-1,SWP-ASR200045-2,SWP-ASR200045-3，SWP-ASR200046-1,SWP-ASR200046-2,SWP-ASR200046-3
SWP-ASR200047-1,SWP-ASR200047-2,SWP-ASR200047-3，SWP-ASR200048-1,SWP-ASR200048-2,SWP-ASR200048-3
