1.產品簡介：
SWP-TU系列渦街流量計可以測量以下流體的體積流量：液體、氣體、蒸汽。適用于能源工業、水工業、石化行業和食品工業應用場合。
2.產品參數

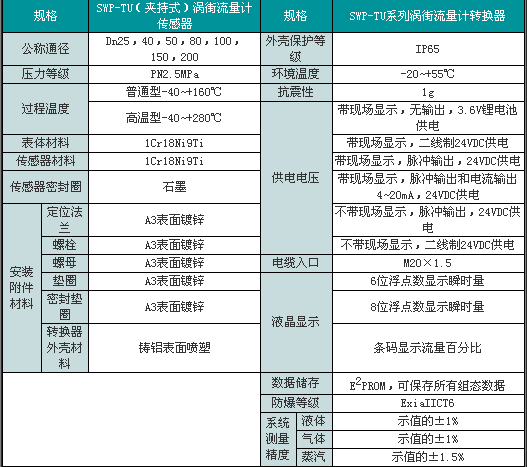

技術參數
型譜表
|
型 號
|
代 碼
|
說 明
|
||||||||
|
SWP-TU
|
□
|
□□
|
□
|
□
|
□
|
□
|
□
|
□
|
□
|
智能渦街流量計
|
|
防爆類型
|
T
B/i
|
標準型
本安型 Exia,IICT2-T6
|
||||||||
|
液體/氣體
測量范圍
|
025
040
050
080
100
150
200
|
DN25 0.8~12/8~150 m3/h PN2.5MPa
DN40 2~30/18~340 m3/h PN2.5MPa
DN50 3~50/30~500 m3/h PN2.5MPa
DN80 10~130/70~1300 m3/h PN2.5MPa
DN100 15~200/100~2000 m3/h PN2.5MPa
DN150 40~450/200~4800 m3/h PN2.5MPa
DN200 80~1000/400~8000 m3/h PN2.5MPa
|
||||||||
|
轉換器類型
|
A
B
C
D
E
F
|
帶現場顯示，無輸出，3.6V鋰電池供電
帶現場顯示，二線制24VDC供電
帶現場顯示，脈沖輸出，24VDC供電
帶現場顯示，脈沖輸出和電流輸出4~20mA，24VDC供電
不帶現場顯示，脈沖輸出，24VDC供電
不帶現場顯示，二線制24VDC供電
|
||||||||
|
測量介質
|
A
B
|
液體
氣體
|
||||||||
|
附加功能
|
A
B
C
D
|
不帶溫度壓力補償
帶溫度補償
帶壓力補償
帶溫度壓力補償
|
||||||||
|
表體內經標準
|
0
1
|
中國國標
約定的特殊要求
|
||||||||
|
表體材料
|
0
1
|
1Cr18Ni9Ti
約定的特殊要求
|
||||||||
|
傳感器適用溫度
|
L
H
|
-40~+160℃
-40~+280℃
|
||||||||
|
配件
|
F
|
配對法蘭及螺栓
|
||||||||
