詳細說明
PHL04-01(2),PHL06-01(2),PHL08-01(2),PHL10-01(2),PHL12-02(2),快插式管接頭
PHL04-02(2),PHL04-03(2),PHL04-04(2),PHL06-02(2),PHL06-03(2),PHL06-04(2),PHL08-02(2),

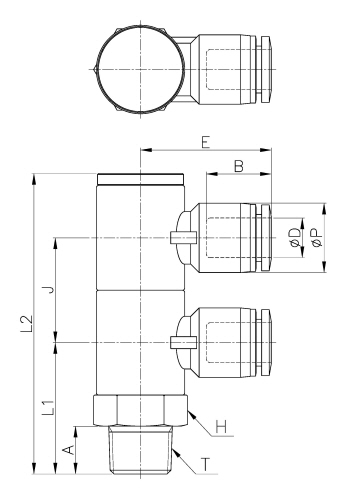

外形尺寸
PHL04-02(2),PHL04-03(2),PHL04-04(2),PHL06-02(2),PHL06-03(2),PHL06-04(2),PHL08-02(2),
PHL08-03(2),PHL08-04(2),PHL10-02(2),PHL10-03(2),PHL10-04(2),PHL12-03(2),PHL12-04(2),
| Model | ￠D | ￠P | T | L1 | L2 | E | A | B | J | H(Hex) | ORIFICE | WEIGHT(g) | BOX(EA) |
| PHL04-01(2) | 4 | 10.5 | R 1/8 | 22.5 | 51.8 | 23.3 | 8 | 14.8 | 17.9 | 14 | 3.2 | 37 | 25 |
| PHL04-02(2) | 4 | 10.5 | R 1/4 | 27.5 | 62.8 | 25.1 | 10 | 14.8 | 21.9 | 17 | 3.2 | 59 | 25 |
| PHL04-03(2) | 4 | 10.5 | R 3/8 | 29 | 64.8 | 27 | 11 | 14.8 | 21.9 | 21 | 3.2 | 92 | 25 |
| PHL04-04(2) | 4 | 10.5 | R 1/2 | 34.1 | 73.4 | 29 | 14 | 14.8 | 23.9 | 24 | 3.2 | 135 | 20 |
| PHL06-01(2) | 6 | 12.5 | R 1/8 | 22.5 | 51.8 | 24.1 | 8 | 16.4 | 17.9 | 14 | 4 | 38 | 25 |
| PHL06-02(2) | 6 | 12.5 | R 1/4 | 27.5 | 62.8 | 26 | 10 | 16.4 | 21.9 | 17 | 5 | 61 | 25 |
| PHL06-03(2) | 6 | 12.5 | R 3/8 | 29 | 64.8 | 27.9 | 11 | 16.4 | 21.9 | 21 | 5 | 93 | 25 |
| PHL06-04(2) | 6 | 12.5 | R 1/2 | 34.1 | 73.4 | 29.3 | 14 | 16.4 | 23.9 | 24 | 5 | 137 | 20 |
| PHL08-01(2) | 8 | 14.5 | R 1/8 | 22.5 | 51.8 | 25.6 | 8 | 18.3 | 17.9 | 14 | 5 | 40 | 25 |
| PHL08-02(2) | 8 | 14.5 | R 1/4 | 27.5 | 62.8 | 27.4 | 10 | 18.3 | 21.9 | 17 | 7 | 62 | 25 |
| PHL08-03(2) | 8 | 14.5 | R 3/8 | 29 | 64.8 | 29.3 | 11 | 18.3 | 21.9 | 21 | 7 | 94 | 20 |
| PHL08-04(2) | 8 | 14.5 | R 1/2 | 34.1 | 73.4 | 30.7 | 14 | 18.3 | 23.9 | 24 | 7 | 138 | 12 |
| PHL10-01(2) | 10 | 17.5 | R 1/8 | 22.5 | 51.8 | 28.1 | 8 | 20.2 | 17.9 | 14 | 5 | 44 | 25 |
| PHL10-02(2) | 10 | 17.5 | R 1/4 | 27.5 | 62.8 | 29.8 | 10 | 20.2 | 21.9 | 17 | 8 | 66 | 25 |
| PHL10-03(2) | 10 | 17.5 | R 3/8 | 29 | 64.8 | 31.9 | 11 | 20.2 | 21.9 | 21 | 8 | 99 | 20 |
| PHL10-04(2) | 10 | 17.5 | R 1/2 | 34.1 | 73.4 | 33.7 | 14 | 20.2 | 23.9 | 24 | 8 | 142 | 12 |
| PHL12-02(2) | 12 | 20.5 | R 1/4 | 27.5 | 62.8 | 33 | 10 | 22.9 | 21.9 | 17 | 8 | 72 | 9 |
| PHL12-03(2) | 12 | 20.5 | R 3/8 | 29 | 64.8 | 35.1 | 11 | 22.9 | 21.9 | 21 | 8 | 105 | 9 |
| PHL12-04(2) | 12 | 20.5 | R 1/2 | 34.1 | 73.4 | 37.4 | 14 | 22.9 | 23.9 | 24 | 8 | 149 | 9 |
