詳細(xì)說明
PXT04-01,PXT04-02,PXT06-01,PXT06-02,快插式管接頭
| Model | ￠D | ￠P | T | L | E | J | ￠C | A | B | M | H(Hex) | ORIFICE | WEIGHT(g) | BOX(EA) |
| PXT04-01 | 4 | 10.5 | R 1/8 | 41.7 | 21.2 | 10.6 | 3.3 | 8 | 15.3 | 13.9 | 10 | 4 | 19 | 50 |
| PXT04-02 | 4 | 10.5 | R 1/4 | 44.7 | 21.2 | 10.6 | 3.3 | 10 | 15.3 | 13.9 | 14 | 4 | 23 | 50 |
| PXT06-01 | 6 | 12.8 | R 1/8 | 43 | 25.6 | 12.7 | 3.3 | 8 | 16.4 | 15.5 | 12 | 6 | 24 | 25 |
| PXT06-02 | 6 | 12.8 | R 1/4 | 46 | 25.6 | 12.7 | 3.3 | 10 | 16.4 | 15.5 | 14 | 6 | 30 | 25 |

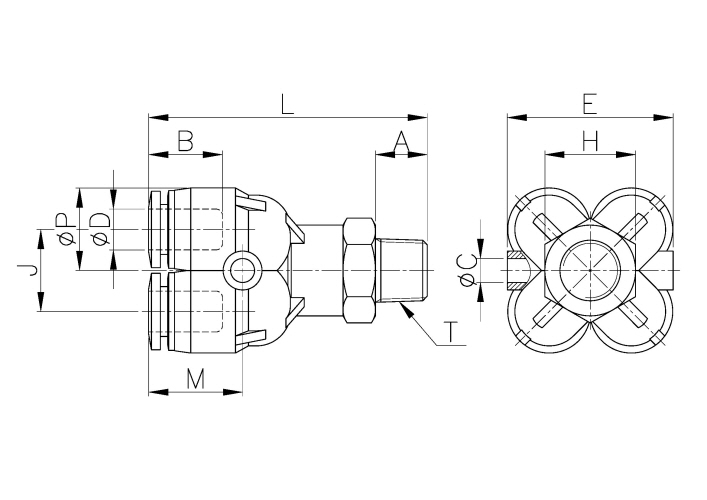

外形尺寸
