詳細說明
PAT04-G01(2),PAT06-G01(2),PAT08-G01(2),PAT10-G01(2),PAT12-G02(2),快插式管接頭

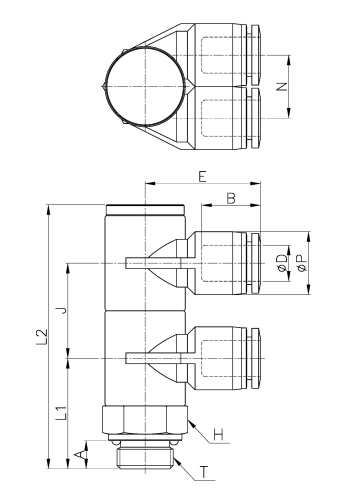

外形尺寸
| Model | ∅D | ∅P | T | L1 | L2 | N | E | A | B | J | H(Hex) | ORIFICE | WEIGHT(g) | EA(BOX) |
| PAT04-G01(2) | 4 | 10.5 | G 1/8 | 20.5 | 49.8 | 10.5 | 21.4 | 5 | 14.8 | 17.9 | 14 | 3.2 | 40 | 25 |
| PAT04-G02(2) | 4 | 10.5 | G 1/4 | 25.5 | 60.8 | 10.5 | 22.9 | 6.5 | 14.8 | 21.9 | 17 | 3.2 | 62 | 25 |
| PAT04-G03(2) | 4 | 10.5 | G 3/8 | 26 | 61.8 | 10.5 | 26.1 | 6.5 | 14.8 | 21.9 | 21 | 3.2 | 95 | 16 |
| PAT04-G04(2) | 4 | 10.5 | G 1/2 | 29.6 | 68.9 | 10.5 | 27.7 | 8 | 14.8 | 23.9 | 24 | 3.2 | 139 | 12 |
| PAT06-G01(2) | 6 | 12.5 | G 1/8 | 20.5 | 49.8 | 12.5 | 22.9 | 5 | 16.4 | 17.9 | 14 | 4 | 43 | 25 |
| PAT06-G02(2) | 6 | 12.5 | G 1/4 | 25.5 | 60.8 | 12.5 | 24.8 | 6.5 | 16.4 | 21.9 | 17 | 5 | 53 | 12 |
| PAT06-G03(2) | 6 | 12.5 | G 3/8 | 26 | 61.8 | 12.5 | 26.6 | 6.5 | 16.4 | 21.9 | 21 | 5 | 97 | 12 |
| PAT06-G04(2) | 6 | 12.5 | G 1/2 | 29.6 | 68.9 | 12.5 | 28.6 | 8 | 16.4 | 23.9 | 24 | 5 | 141 | 9 |
| PAT08-G01(2) | 8 | 14.5 | G 1/8 | 20.5 | 49.8 | 14.5 | 24.8 | 5 | 18.3 | 17.9 | 14 | 5 | 48 | 16 |
| PAT08-G02(2) | 8 | 14.5 | G 1/4 | 25.5 | 60.8 | 14.5 | 26.6 | 6.5 | 18.3 | 21.9 | 17 | 6 | 70 | 12 |
| PAT08-G03(2) | 8 | 14.5 | G 3/8 | 26 | 61.8 | 14.5 | 28.2 | 6.5 | 18.3 | 21.9 | 21 | 7 | 103 | 9 |
| PAT08-G04(2) | 8 | 14.5 | G 1/2 | 29.6 | 68.9 | 14.5 | 30.3 | 8 | 18.3 | 23.9 | 24 | 6 | 146 | 9 |
| PAT10-G01(2) | 10 | 17.5 | G 1/8 | 20.5 | 49.8 | 17.5 | 26.7 | 5 | 20.2 | 17.9 | 14 | 5 | 68 | 12 |
| PAT10-G02(2) | 10 | 17.5 | G 1/4 | 25.5 | 60.8 | 17.5 | 28.2 | 6.5 | 20.2 | 21.9 | 17 | 8 | 78 | 9 |
| PAT10-G03(2) | 10 | 17.5 | G 3/8 | 26 | 61.8 | 17.5 | 30.2 | 6.5 | 20.2 | 21.9 | 21 | 6 | 110 | 9 |
| PAT10-G04(2) | 10 | 17.5 | G 1/2 | 29.6 | 68.9 | 17.5 | 32.6 | 8 | 20.2 | 23.9 | 24 | 7 | 154 | 6 |
| PAT12-G02(2) | 12 | 20.5 | G 1/4 | 25.5 | 60.8 | 20.5 | 31.1 | 6.5 | 22.9 | 21.9 | 17 | 8 | 91 | 9 |
| PAT12-G03(2) | 12 | 20.5 | G 3/8 | 26 | 61.8 | 20.5 | 32.9 | 6.5 | 22.9 | 21.9 | 21 | 8 | 122 | 6 |
| PAT12-G04(2) | 12 | 20.5 | G 1/2 | 29.6 | 68.9 | 20.5 | 35.2 | 8 | 22.9 | 23.9 | 24 | 8 | 167 | 4 |
PAT04-G02(2),PAT04-G03(2),PAT04-G04(2),PAT06-G02(2),PAT06-G03(2),PAT06-G04(2),PAT08-G02(2),
PAT08-G03(2),PAT08-G04(2),PAT10-G02(2),PAT10-G03(2),PAT10-G04(2),PAT12-G03(2),PAT12-G04(2),
