詳細說明
PAF06-G01,PAF08-G02,PAF10-G02,PAF10-G03,PAF12-G03,PAF12-G04,快插式管接頭

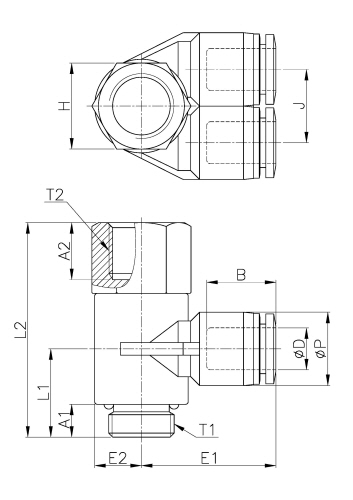

外形尺寸
| Model | ∅D | ∅P | T1 | T2 | L1 | L2 | J | E1 | E2 | A1 | A2 | B | H(Hex) | ORIFICE | WEIGHT(g) | EA(BOX) |
| PAF06-G01 | 6 | 12.5 | G 1/8 | G 1/8 | 14 | 33.9 | 12.5 | 22.9 | 7.7 | 5 | 9 | 16.4 | 14 | 4 | 22 | 25 |
| PAF08-G02 | 8 | 14.5 | G 1/4 | G 1/4 | 17.5 | 42.4 | 14.5 | 26.6 | 9.3 | 6.5 | 12 | 18.3 | 17 | 6 | 38 | 25 |
| PAF10-G02 | 10 | 17.5 | G 1/4 | G 1/4 | 17.5 | 42.4 | 17.5 | 28.2 | 9.3 | 6.5 | 12 | 20.2 | 17 | 8 | 39 | 25 |
| PAF10-G03 | 10 | 17.5 | G 3/8 | G 3/8 | 17.5 | 44.4 | 17.5 | 30.2 | 11.2 | 6.5 | 13 | 20.2 | 21 | 6 | 61 | 20 |
| PAF12-G03 | 12 | 20.5 | G 3/8 | G 3/8 | 17.5 | 44.4 | 20.5 | 32.9 | 11.2 | 6.5 | 13 | 22.9 | 21 | 8 | 70 | 12 |
| PAF12-G04 | 12 | 20.5 | G 1/2 | G 1/2 | 20 | 49.9 | 20.5 | 35.2 | 13.4 | 8.1 | 16 | 22.9 | 24 | 8 | 92 | 12 |
