詳細(xì)說明
PYJO4,PYJ5/32,PYJO6,PYJ3/16,PYJO8,PYJ1/4,PYJ10,PYJ5/16,PYJ12,PYJ3/8,PYJ1/2,快插式氣動管接頭
| Model | ￠D1 | ￠D2 | ￠P | L | J | A | B | ORIFICE | WEIGHT(g) | BOX(EA) |
| PYJ04 | 4 | 4 | 10.5 | 56.4 | 10.5 | 24 | 15.5 | 2.6 | 5 | 100 |
| PYJ06 | 6 | 6 | 12.5 | 58.4 | 12.5 | 25 | 16.9 | 4 | 9 | 50 |
| PYJ08 | 8 | 8 | 14.5 | 62.4 | 14.5 | 26 | 18.6 | 5.6 | 11 | 50 |
| PYJ10 | 10 | 10 | 17.6 | 68.6 | 17.6 | 28 | 20.3 | 7 | 18 | 25 |
| PYJ12 | 12 | 12 | 21 | 75.7 | 21 | 30 | 22.7 | 9 | 28 | 25 |

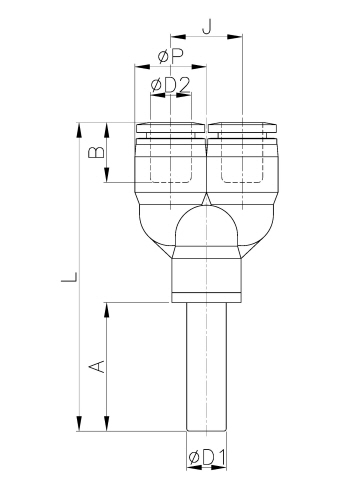

外形尺寸
