詳細說明
NSC03-M5(D),NSC04-M5(D),NSC06-M5(D),NSC08-01(D),NSC10-01(D),NSC12-02(D),調速閥
| Model | ￠D | ￠P | T | L1 | L2/MIN | L2/MAX | E1 | E2 | A | B | H(Hex) | WEIGHT(g) | BOX(EA) |
| NSC03-M5(D) | 3 | 7.8 | M5*0.8p | 9.6 | 20.4 | 22.9 | 16.5 | 5 | 3.6 | 11.3 | 8 | 8 | 50 |
| NSC04-M5(D) | 4 | 10.5 | M5*0.8p | 10.3 | 20.4 | 22.9 | 20.2 | 5 | 3.6 | 14.8 | 8 | 9 | 50 |
| NSC04-01(D) | 4 | 10.5 | R 1/8 | 15.1 | 26.7 | 31.2 | 23.3 | 7 | 8.2 | 15.3 | 11 | 20 | 50 |
| NSC04-02(D) | 4 | 10.5 | R 1/4 | 18.4 | 31.3 | 37.4 | 25.3 | 9 | 11 | 15.3 | 15 | 36 | 50 |
| NSC06-M5(D) | 6 | 12.5 | M5*0.8p | 11.4 | 20.4 | 22.9 | 22.7 | 5 | 3.6 | 16.4 | 8 | 10 | 50 |
| NSC06-01(D) | 6 | 12.5 | R 1/8 | 15.1 | 26.7 | 31.2 | 24.2 | 7 | 8.2 | 16.4 | 11 | 21 | 50 |
| NSC06-02(D) | 6 | 12.5 | R 1/4 | 18.4 | 31.3 | 37.4 | 26.2 | 9 | 11 | 16.4 | 15 | 37 | 50 |
| NSC06-03(D) | 6 | 12.5 | R 3/8 | 21.9 | 37 | 42.9 | 27.7 | 11 | 12.2 | 16.4 | 19 | 70 | 25 |
| NSC06-04(D) | 6 | 12.5 | R 1/2 | 26.5 | 43 | 49.3 | 30.8 | 14 | 16.5 | 16.4 | 24 | 108 | 20 |
| NSC08-01(D) | 8 | 14.5 | R 1/8 | 16.2 | 26.7 | 31.2 | 25.9 | 7 | 8.2 | 18.3 | 11 | 22 | 50 |
| NSC08-02(D) | 8 | 14.5 | R 1/4 | 19.2 | 31.3 | 37.4 | 27.9 | 9 | 11 | 18.3 | 15 | 38 | 50 |
| NSC08-03(D) | 8 | 14.5 | R 3/8 | 21.9 | 37 | 42.9 | 28.9 | 11 | 12.2 | 18.3 | 19 | 71 | 25 |
| NSC08-04(D) | 8 | 14.5 | R 1/2 | 26.5 | 43 | 49.3 | 31.8 | 14 | 16.5 | 18.3 | 24 | 109 | 20 |
| NSC10-01(D) | 10 | 17.5 | R 1/8 | 17.7 | 26.7 | 31.2 | 27.9 | 7 | 8.2 | 19.7 | 11 | 26 | 25 |
| NSC10-02(D) | 10 | 17.5 | R 1/4 | 20.7 | 31.3 | 37.4 | 29.9 | 9 | 11 | 19.7 | 15 | 42 | 25 |
| NSC10-03(D) | 10 | 17.5 | R 3/8 | 23.2 | 37 | 42.9 | 31 | 11.2 | 12.2 | 19.7 | 19 | 73 | 25 |
| NSC10-04(D) | 10 | 17.5 | R 1/2 | 26.5 | 43 | 49.3 | 33.4 | 14 | 16.5 | 19.7 | 24 | 110 | 20 |
| NSC12-02(D) | 12 | 20.5 | R 1/4 | 22.2 | 31.3 | 37.4 | 33.3 | 9 | 11 | 22.4 | 15 | 45 | 25 |
| NSC12-03(D) | 12 | 20.5 | R 3/8 | 24 | 37 | 42.9 | 33.7 | 11.5 | 12.2 | 21.9 | 19 | 75 | 25 |
| NSC12-04(D) | 12 | 20.5 | R 1/2 | 28 | 43 | 49.3 | 36.1 | 14 | 16.5 | 21.9 | 24 | 113 | 20 |

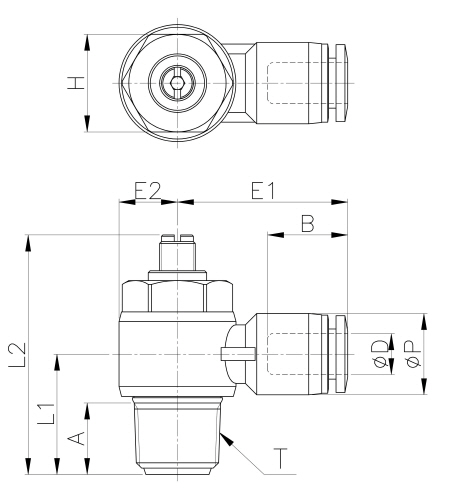

外形尺寸
NSC08-03(D),NSC08-04(D),NSC10-02(D),NSC10-03(D),NSC10-04(D),NSC12-03(D),NSC12-04(D),
