詳細說明
CK04-01,CK06-01,CK08-01,CK10-02,CK12-02,CK06-02,CK08-02,CK10-03,CK08-03,CK12-03,CK12-04,快擰式管接頭
| Model | ￠D | T | L | A | H1(Hex) | H2(Hex) | WEIGHT(g) | BOX(EA) |
| CK04-01 | 4 | R 1/8 | 24.5 | 8 | 10 | 12 | 2 | 100 |
| CK06-01 | 6 | R 1/8 | 28.5 | 7 | 12 | 13 | 3 | 100 |
| CK06-02 | 6 | R 1/4 | 30.5 | 9 | 12 | 15 | 4 | 100 |
| CK08-01 | 8 | R 1/8 | 30 | 9 | 14 | 14 | 5 | 100 |
| CK08-02 | 8 | R 1/4 | 29 | 9 | 14 | 17 | 5 | 100 |
| CK08-03 | 8 | R 3/8 | 31.7 | 10.2 | 14 | 19 | 6 | 100 |
| CK10-02 | 10 | R 1/4 | 33.4 | 9.2 | 17 | 17 | 7 | 100 |
| CK10-03 | 10 | R 3/8 | 34.9 | 10.2 | 17 | 19 | 7 | 50 |
| CK12-02 | 12 | R 1/4 | 39 | 9.2 | 19 | 17 | 9 | 50 |
| CK12-03 | 12 | R 3/8 | 41.2 | 10.2 | 19 | 19 | 9 | 50 |
| CK12-04 | 12 | R 1/2 | 45 | 15 | 19 | 22 | 13 | 25 |

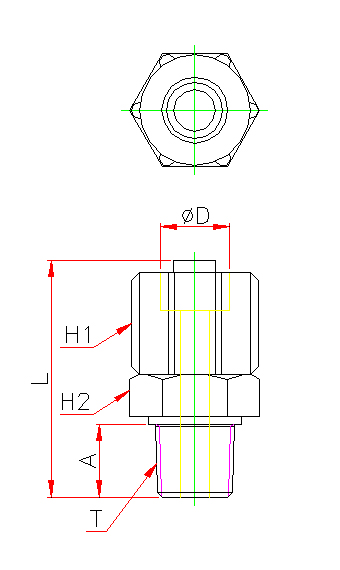

外形尺寸
