點擊圖片查看原圖Technical Data
|

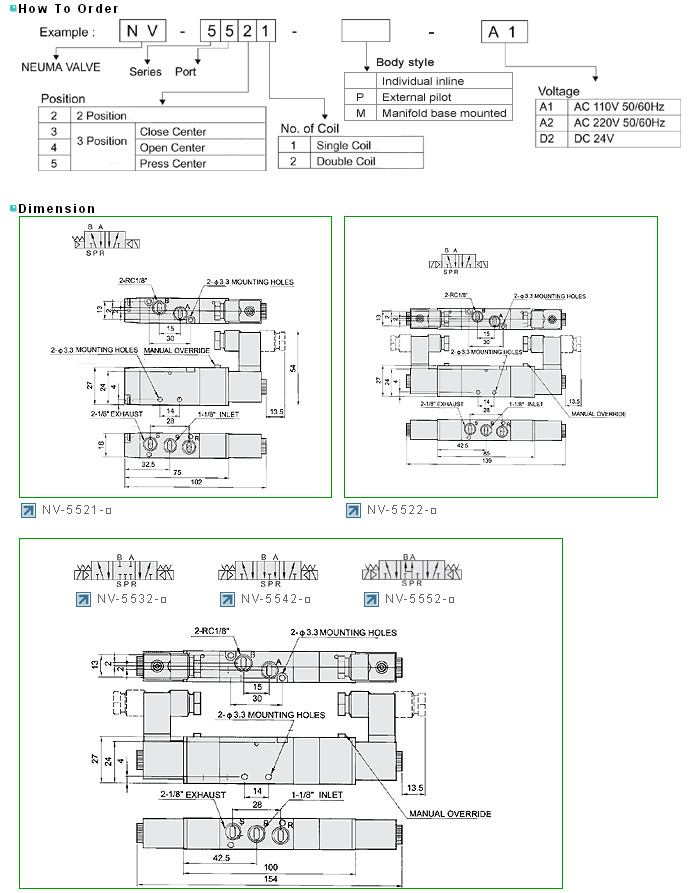

Model
|
NV-5521-
|
NV-5522-
|
NV-5532
|
NV-5542-
|
NV-5552-
|
|
Position
|
5/2 Way
|
5/3 Way
|
|||
|
Port size
|
G1/8”
|
||||
|
Effective area
|
12mm2 (Cv=0.67)
|
9mm2 (Cv=0.5)
|
|||
|
Nominal flow
|
670 Nl/min
|
500 Nl/min
|
|||
|
Fluid
|
Compressed air
|
||||
|
Pressure range
|
1.5~8 bar (22~115psi)
|
||||
|
Operating temperature
|
5~60°C (41~140°F)
|
||||
|
Voltage tolerance
|
±10%
|
||||
|
Insertion duration
|
100%
|
||||
|
Class of insulation
|
Class F
|
||||
|
Portection
|
IP65
|
||||
|
Weight
|
0.12 kg
|
0.18 kg
|
0.21 kg
|
||
NV-5522-P-A1,NV-5532-P-A1,NV-5542-P-A1,NV-5552-P-A1,NV-5521-M-A1,NV-5532-M-A1,NV-5542-M-A1,NV-5552-M-A1,NV-5521-P-A2,NV-5522-P-A2,neuma,NV-5542-P-A2,NV-5552-P-A2,NV-5521-M-A2,NV-5522-M-A2,NV-5532-M-A2,NV-5552-M-A2,
NV-5521-P-D2,NV-5522-P-D2,NV-5532-P-D2,NV-5542-P-D2,NV-5521-M-D2,NV-5522-M-D2,NV-5532-M-D2,NV-5542-M-D2,NV-5552-M-D2,
